Description

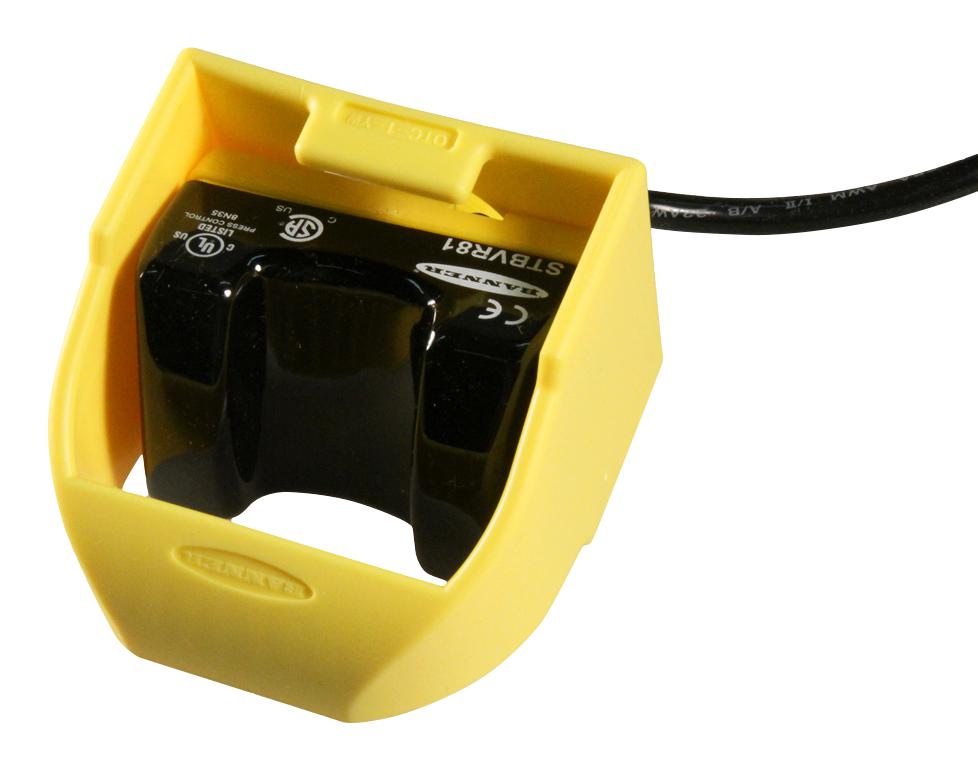

STBVR81 is a STB self-checking optical touch button. It features continuous internal self-checking operation. Diverse-redundant microcontroller-based photoelectric touch buttons. Ergonomically designed to eliminate hand, wrist, and arm stresses associated with repeated switch operation; requires no physical pressure to operate. High excess gain cuts through heavy contamination. Immune to ambient light, EMI, and RFI interference. LED power, output, and fault indicators. Pre-installed field covers protect the device and prevent inadvertent activation.
- 5-wire 2m (6.5 ft) integral cable
- 20VAC/DC to 30VAC/DC supply voltage, 75mA maximum current colour
- IP66 IP rating, single point optical sensing mode, base mount -saddle mounting style
- Thermoplastic polyetherimide primary housing material, optical activation function
- Dry contact output type, 20ms maximum output response time
- Physical dimensions (LxWxH or DxH mm) is 68 x 51 x 100mm
- Protected against reverse polarity and transient voltages
- Operating temperature range from 0°C to +50°C, cUL certified
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | STBVR81 |
| Quantity | Each |
| Technical Data Sheet EN |  |
