ANALOG DEVICES ADG5413BCPZ-REEL7 ANALOGUE SWITCH, 4-CH, SPST, LFCSP-16

ADG5413BCPZ-REEL7 contains four independent single-pole/single-throw (SPST) switches. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The on-resistance profile is very flat over the full analogue input range, which ensures good linearity and low distortion when switching audio signals. High switching speed also makes the devices suitable for video signal switching. The ADG5413 exhibits break-before-make switching action for use in multiplexer applications. Typical applications are relay replacement, automatic test equipment, data acquisition, instrumentation, avionics, audio and video switching, and communication systems.

• Latch-up proof, 8kV human body model (HBM) ESD rating, VSS to VDD analogue signal range
• 3V logic compatible digital inputs: VINH = 2.0V, VINL = 0.8V
• No VL logic power supply required, low RON
• On resistance, RON is 9.8ohm typ at VS=±10V, IS=-10mA, +25°C, ±15V DUAL SUPPLY
• Source off leakage is ±0.05nA typ at VS=±10V, VD=?10V, +25°C, ±15V DUAL SUPPLY
• tON is 170ns typ at RL=300 ohm, CL=35pF, 25°C, ±15V DUAL SUPPLY
• Bandwidth (-3dB) is 167MHz typ (at RL=50 ohm, CL=5pF, 25°C, ±15V DUAL SUPPLY)
• Total harmonic distortion plus noise is 0.009% typ at RL=1kohm, VS=15Vp-p, ±15V DUAL SUPPLY

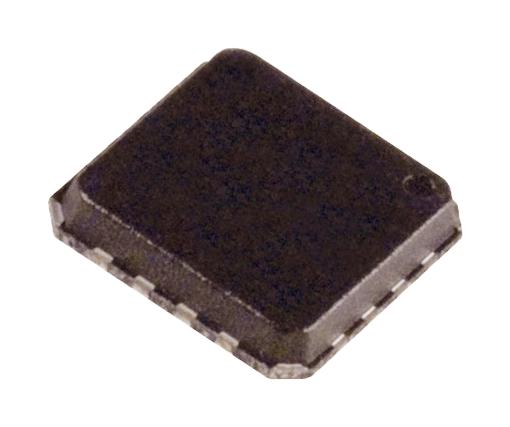

• 16-lead frame chip scale package [LFCSP]
• Temperature range from -40°C to +125°C

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
