This is a

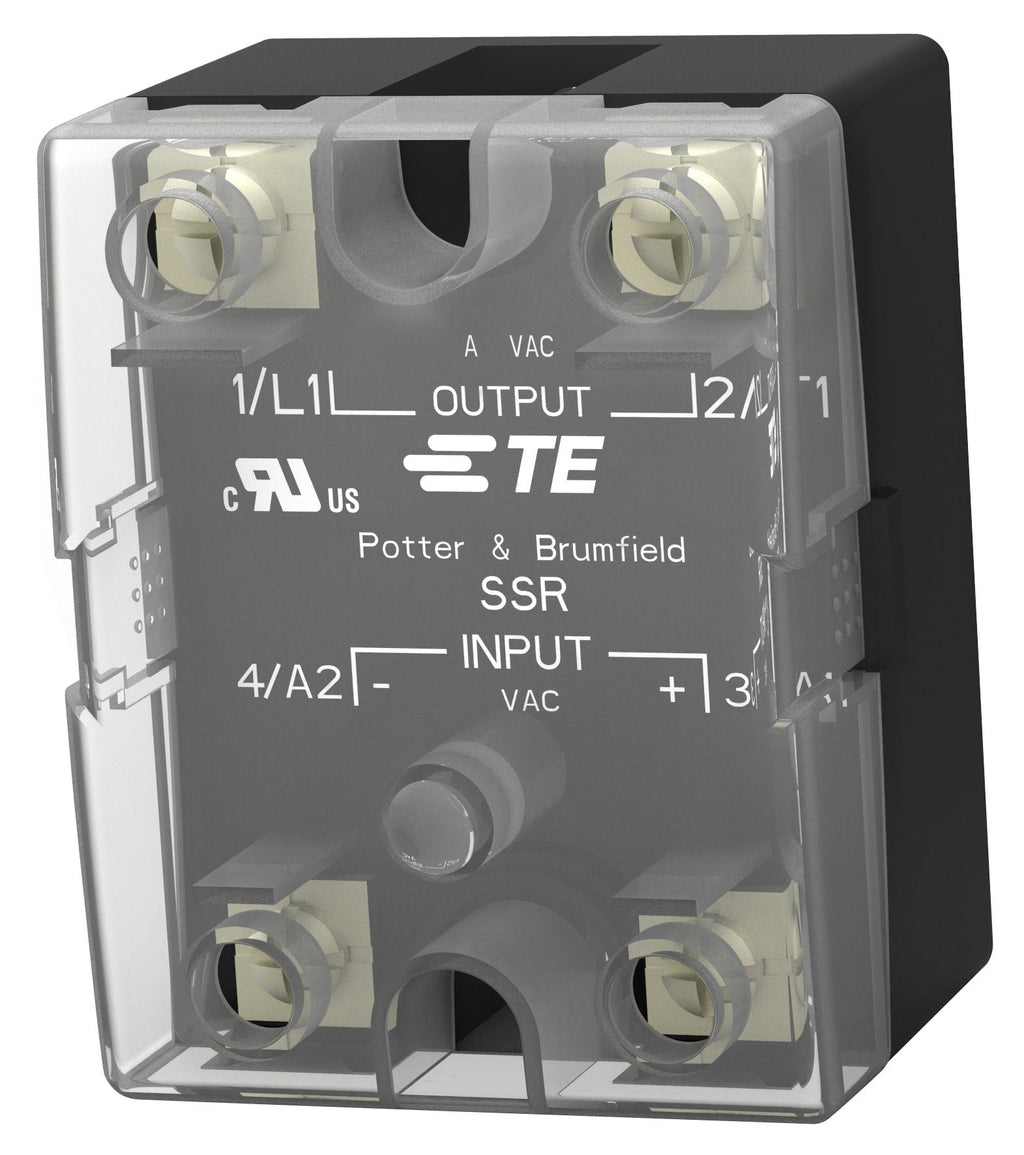

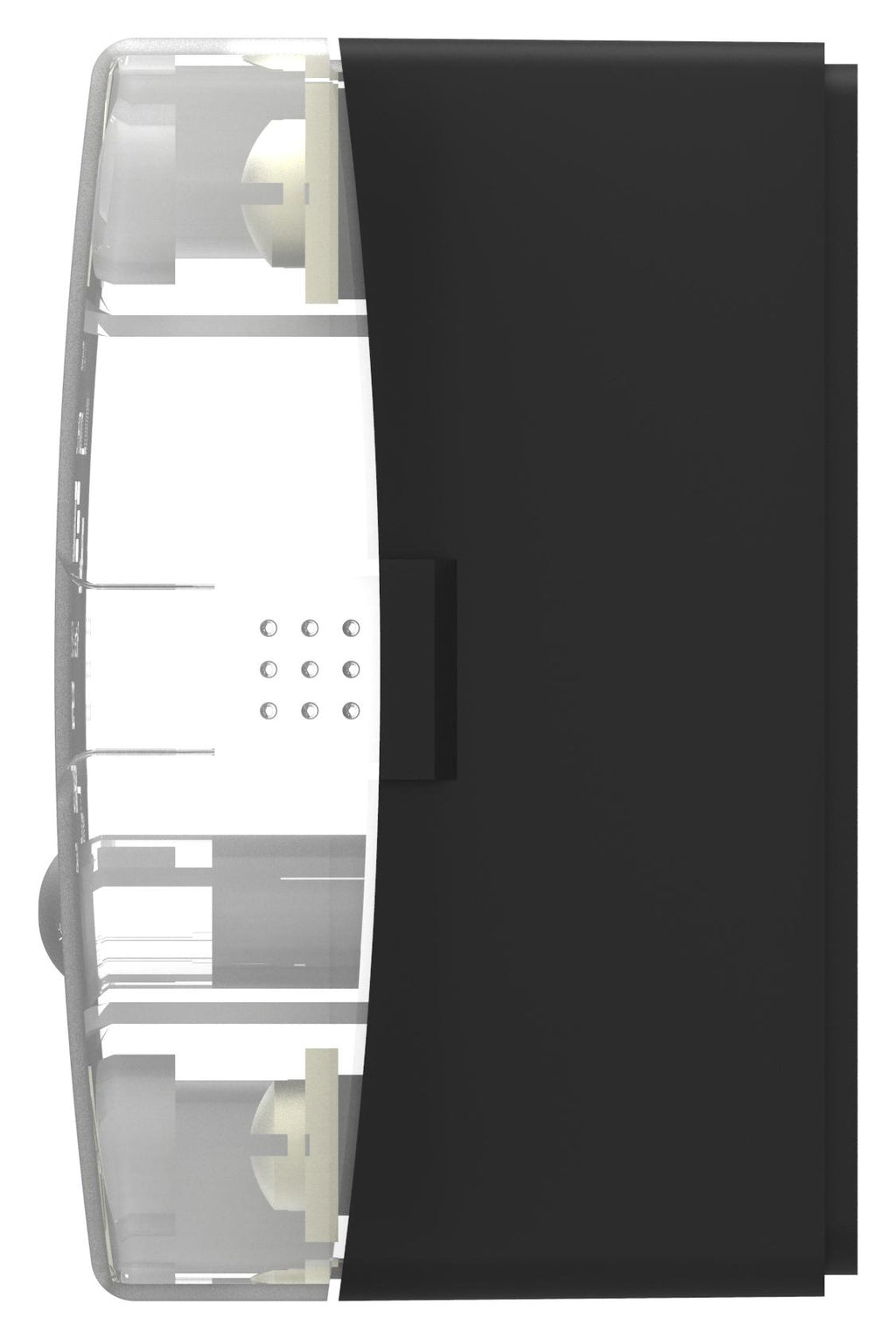

SSR-240D25 Solid State Relay , SPST-NO, 25 A, 280 V, Panel Mount, Screw, Zero Crossing product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number SSR-240D25
Product details
| Contact Configuration |
SPST-NO |
| Load Current |
25A |
| Operating Voltage Max |
280V |
| Relay Mounting |
Panel Mount |
| Relay Terminals |
Screw |
| Switching Mode |
Zero Crossing |
| Operating Voltage Min |
24V |
| Control Voltage Min |
3VDC |
| Control Voltage Max |
32VDC |
| Product Range |
- |
Other details
| Brand |
POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number |
SSR-240D25 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
