Description

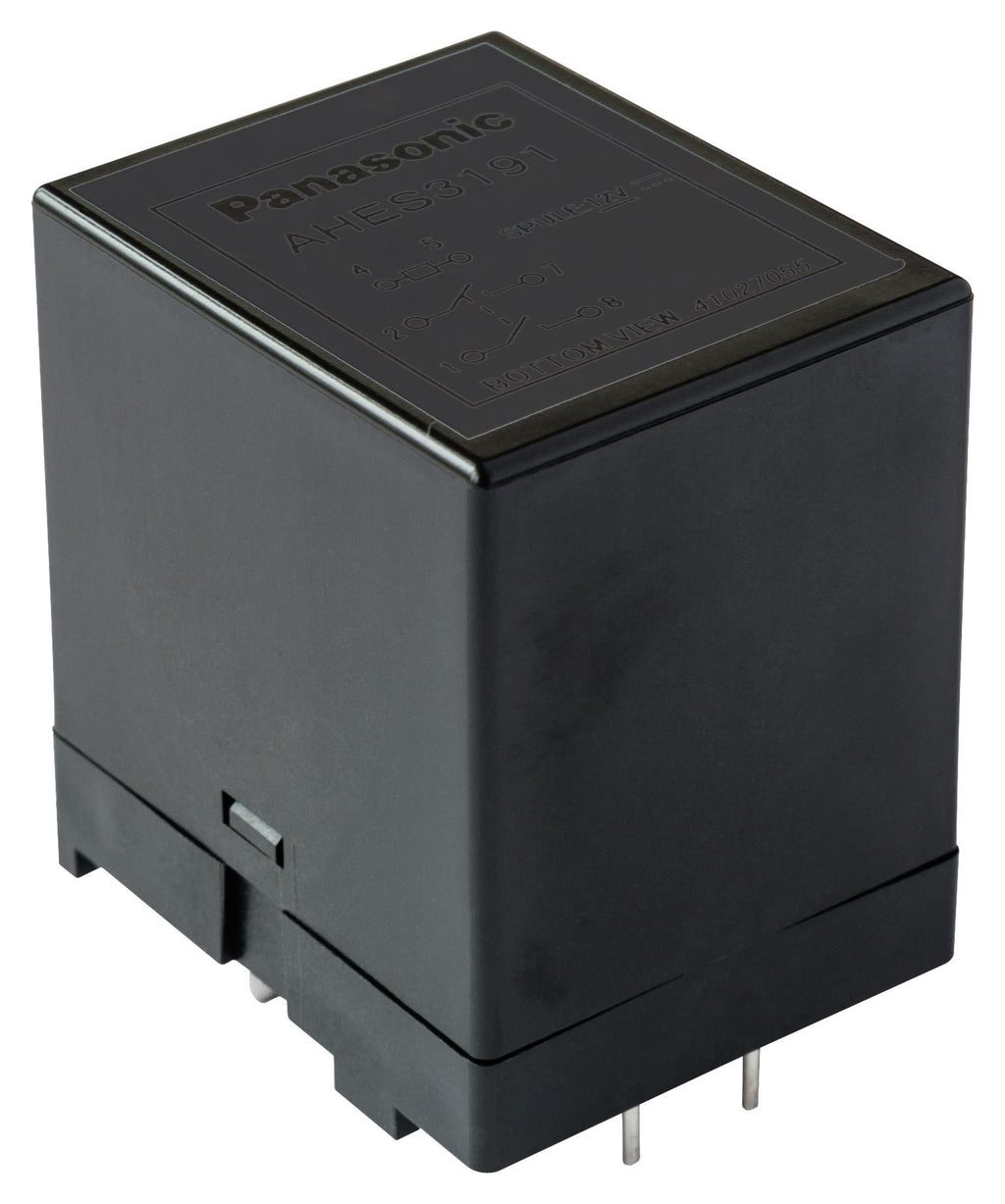

This is a Power Relay, DPST-NO, 6 VDC, 35 A, HE-S (AHES) Series, Through Hole, Non Latching product from PANASONIC ELECTRIC WORKS with the model number AHES3190
Product details
| Relay Terminals | Solder |
| Coil Voltage | 6VDC |
| Coil Resistance | 19.1ohm |
| Coil Type | Non Latching |
| Contact Voltage VAC | 277V |
| Contact Configuration | DPST-NO |
| Contact Current | 35A |
| Contact Material | Silver Tin Oxide |
| Product Range | HE-S (AHES) Series |
| Approvals & Standards | UL |
| Relay Mounting | Through Hole |
| Contact Voltage VDC | - |
Other details
| Brand | PANASONIC ELECTRIC WORKS |
| Part Number | AHES3190 |
| Quantity | Each |
| Technical Data Sheet EN |  |
