Description

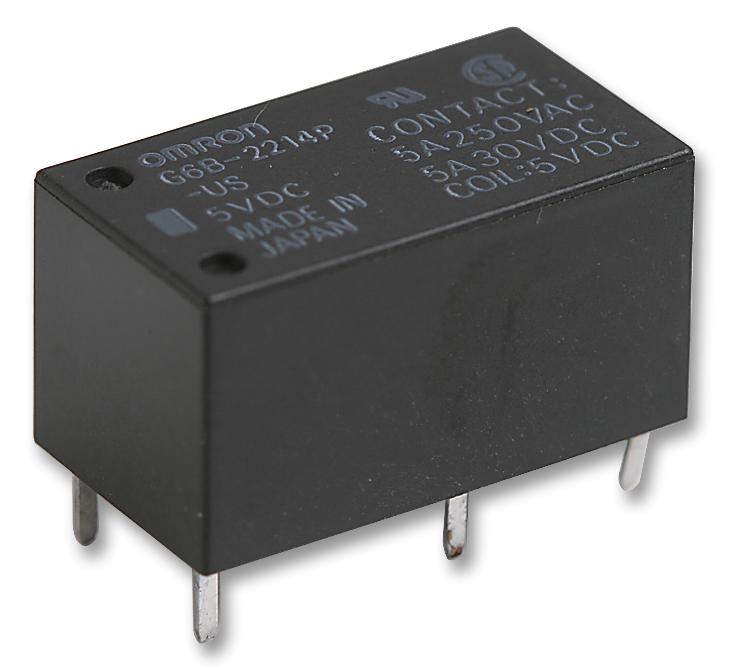

The G6B-2214P-US 24DC is a 2-pole miniature Power PCB Relay with DC coil, G6B series. DPST-NO contact configuration. Standard classification, PCB terminals, Ag-alloy (Cd-free) contact. High insulation with dielectric strength of 3000VAC between coil and contacts (impulse withstand voltage of 6kV). Stick packing models are provided in consideration of compatibility to the automatic production line.
- Single-side stable relay
- Fully sealed enclosure
- Mounted directly to PCB
- Selectable coil voltage of 5VDC, 6VDC, 12VDC, 24VDC
- Available in 3A, 4A, 5A, 8A, 10A and 16A switching current based on models
- Ultrasonic cleanable models available
- Operation indicator & built-in surge absorption diode available
- AgSnIn contacts suitable for loads that generate surge voltage available
Industrial, Power Management, Automation & Process Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G6B-2214P-US DC24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
