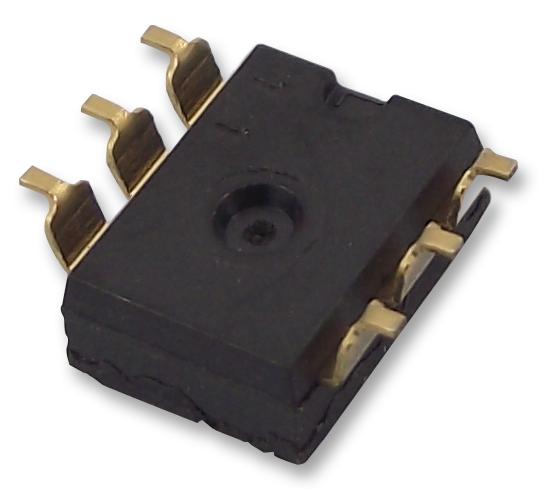

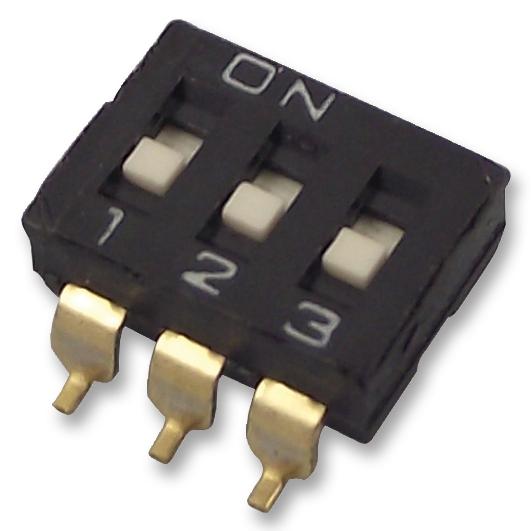

The A6S3102H is a three-pole surface-mount slide DIP Switch with a white flat actuator. The DIP switch has gold-plated twin contacts and a slide-type, self-cleaning mechanism ensure high reliability.
- 200mR Maximum contact resistance
- 100MR at 250VDC Minimum insulation resistance
- 1000 operations Minimum durability
- -20 to +70°C Operating temperature range
- IP40 Protection rating
Applications
Industrial
Product details
| No. of Circuits |
3Circuits |
| Switch Actuator Style |
Slide |
| Switch Mounting |
Surface Mount |
| Contact Configuration |
SPST |
| Contact Voltage DC Max |
24VDC |
| Contact Current DC Max |
25mA |
| Product Range |
- |
| Switch Type |
DIP Sealed |
Other details
| Brand |
OMRON ELECTRONIC COMPONENTS |
| Part Number |
A6S3102H |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
