| ₹ 463.97 includes GST and import duties. | |
| B2B customers can avail ₹ 70.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

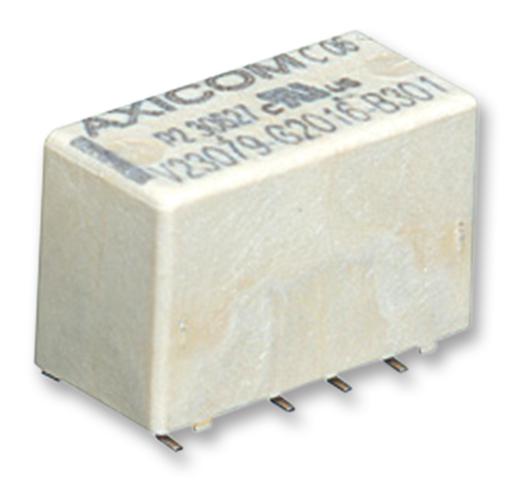

The V23079D1005B301 is a Signal Relay with DC coil. This V23079-series signal relay 2-form-C (DPDT) Au-plated AgNi bifurcated contact. SMT long terminals, high sensitivity for low power consumption 140mW/70mW. Single coil version with surge voltage resistance between contact and coil 2.5kV (2/10µs) meets the Telcordia Requirement GR-1089, 1.5kV (10/160µs) meets FCC Part 68.
- Standard telecom relay
- SMT version, monostable DC coil
- Slim line relay
- Immersion cleanable
- -40 to 85°C Operating temperature range
- Wash tight RT III environmental protection rating
Automotive, Test & Measurement, Medical, Consumer Electronics, Communications & Networking, Audio
Other details
| Brand | AXICOM - TE CONNECTIVITY |
| Part Number | 5-1393788-8 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 454.69 |
| 3-5 | ₹ 450.05 |
| 5-10 | ₹ 440.77 |
| 10+ | ₹ 431.49 |
Bulk discount will be automatically applied during checkout based on quantity.
