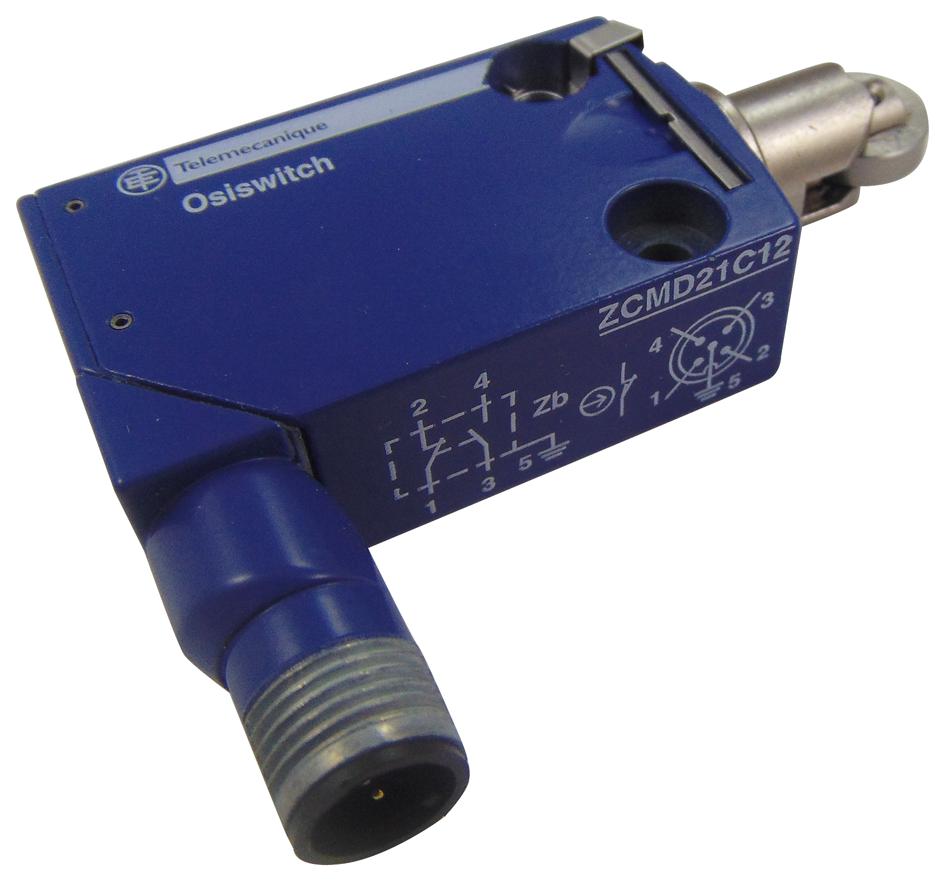

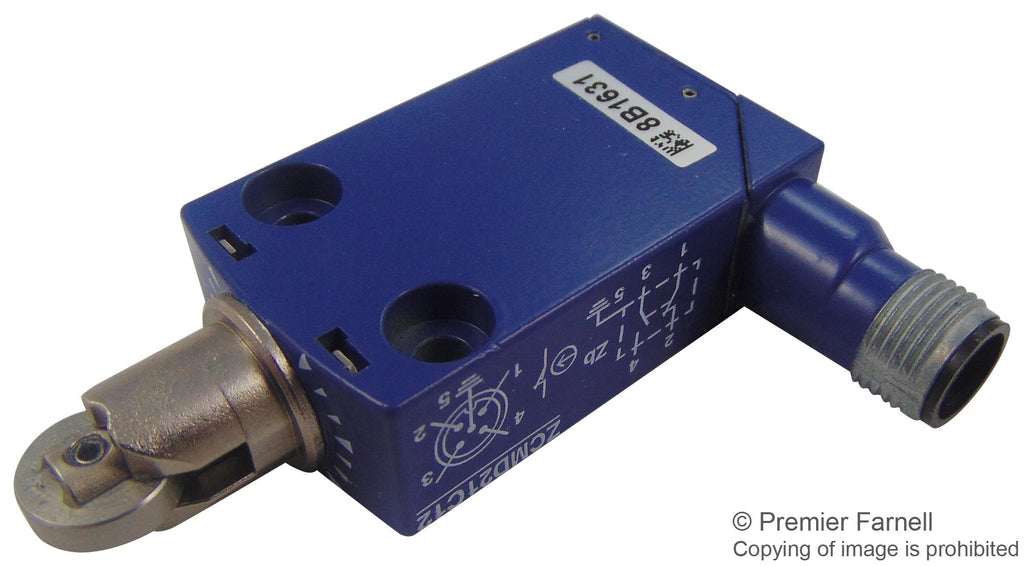

The XCMD2102C12 is a 1NC+1NO snap-action Limit Switch with steel spring return roller plunger actuator and 5-pin M12 male connector. It is suitable for materials handling, conveying, machining, service sector, food and beverage.
- Plug-in body type
- Plunger head
- By 30° cam switch actuation
- Lateral approach 2 directions
- 4A by gG cartridge fuse Short-circuit protection
- IP66/IP67/IP68/IK06 Protection rating
Applications
Industrial
Product details
| Limit Switch Actuator |
Top Roller Plunger |
| Contact Configuration |
SPST-NO, SPST-NC |
| Contact Current AC Max |
6A |
| Contact Voltage AC Max |
240V |
| Operating Force Max |
0.05N-m |
| Product Range |
OsiSense XC Series |
| Contact Current DC Max |
6A |
| Contact Voltage DC Max |
250V |
Other details
| Brand |
TELEMECANIQUE SENSORS |
| Part Number |
XCMD2102C12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
