Description

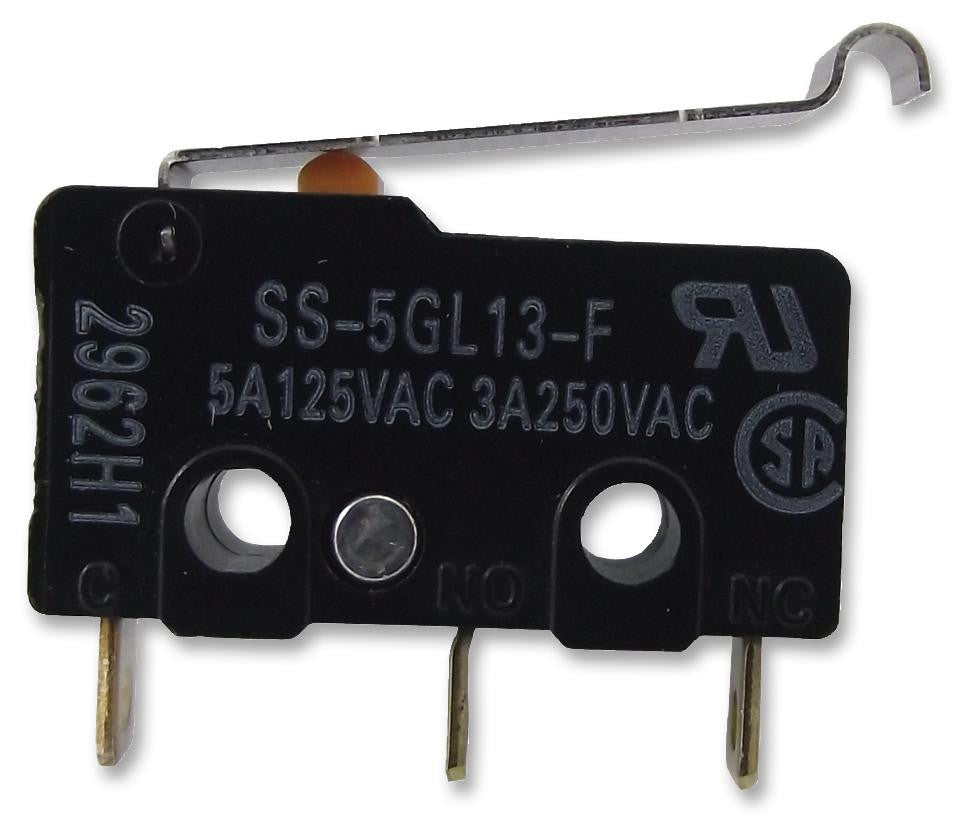

The Omron SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with operating force ranging from low to high.
- Switching capacity of 10.1A at 250VAC, 5A at 125VAC, 0.1A at 30VDC
- Pin plunger, hinge, long hinge, simulated roller , hinge roller lever actuators available
- Solder, quick connect, PCB terminals available
- Operating force is 0.06N, 0.12N, 1.47N, 0.49N, 0.25N, 0.16N, 0.08N, 0.39N based on ordering
- SPDT, SPST-NC, SPST-NO contact configuration
- Two split springs ensure a high stability and durability
Applications
Industrial, Power Management, Automation & Process Control, Security
Product details
| Microswitch Actuator | Simulated Roller Lever |
| Contact Voltage DC Nom | - |
| Operating Force Max | 0.16N |
| Contact Voltage AC Nom | 125VAC |
| Microswitch Type | Subminiature |
| Switch Terminals | Solder |
| Contact Configuration | SPDT |
| Product Range | SS Series |
| Contact Current Max | 5A |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | SS-5GL13-F |
| Quantity | Each |
| Technical Data Sheet EN |  |
