Description

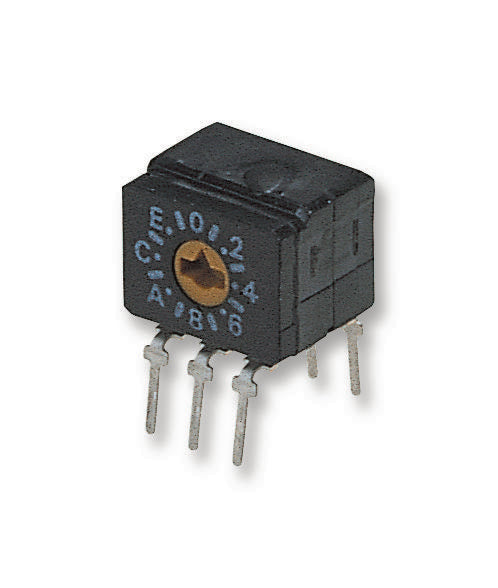

The A6C series internally sealed DIL-IC type Rotary DIP Switch has a precise rotary cam and contact driving mechanism achieves compactness for high-density mounting. It has insert-moulded terminals and an O-ring sealed rotor combine to form a sealed structure equivalent to IEC-60529 to prevent flux penetration and provides high contact reliability even in dusty locations.
- IP64 Protection rating
- Offset between terminal pins and side of case allows simple circuit inspection
- Top/side-actuated models available
- Highly reliable rotary switch
- Precision rotary cam and contactor drive provide high reliability
Applications
Industrial
Product details
| No. of Switch Positions: 16 Position |
| No. of Poles: 1 Pole |
| Angle of Throw: 22.5° |
| Contact Current AC Max: - |
| Contact Voltage AC Max: 250V |
| Product Range: A6C |
| Illumination: Non Illuminated |
| Contact Current DC Max: 100mA |
| Contact Voltage DC Max: 30V |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | A6CV-16R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
