Description
Product Overview

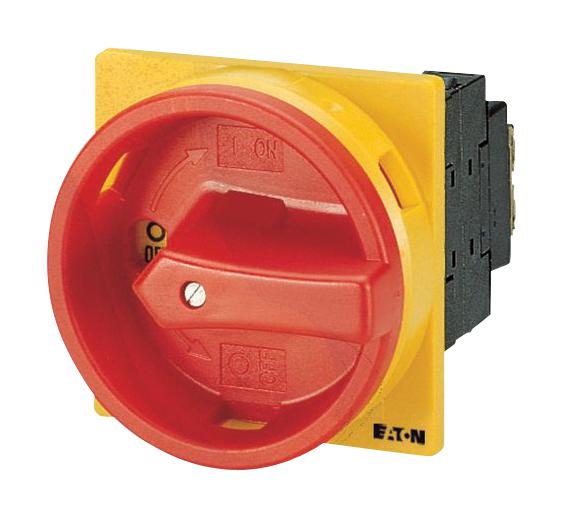

T3-1-8200/EA/SVB is an Eaton Moeller® series T3 main switch. It includes short-circuit protection. It features version as main switch, version as maintenance-/service switch, version as emergency stop installation. Safety certification are UL, CSA, CSA-C22.2 No. 60947-4-1-14, VDE 0660, IEC/EN 60947-3, CSA Class No.: 3211-05, IEC/EN 60204, UL Category Control No.: NLRV, IEC/EN 60947, CE, UL 60947-4-1, CSA-C22.2 No. 94, UL File No.: E36332, CSA File No.: 012528.
- Fitted with red rotary handle and yellow locking ring
- Interlockable, emergency switching off function interlockable
- 1 number of poles, NEMA 12 degree of protection, flush mounting method
- 500,000 operations lifespan, mechanical
- 1200 operations/h operating frequency, 3 pollution degree
- 6000VAC rated impulse withstand voltage (Uimp)
- 440VAC, between the contacts, according to EN 61140 safe isolation
- 1.6Nm, screw terminals tightening torque
- 104mm product length/depth, 74mm product height, 65mm product width
- Ambient operating temperature range from -25°C to 50°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T3-1-8200/EA/SVB |
| Quantity | Each |
| Technical Data Sheet EN |  |
