Description

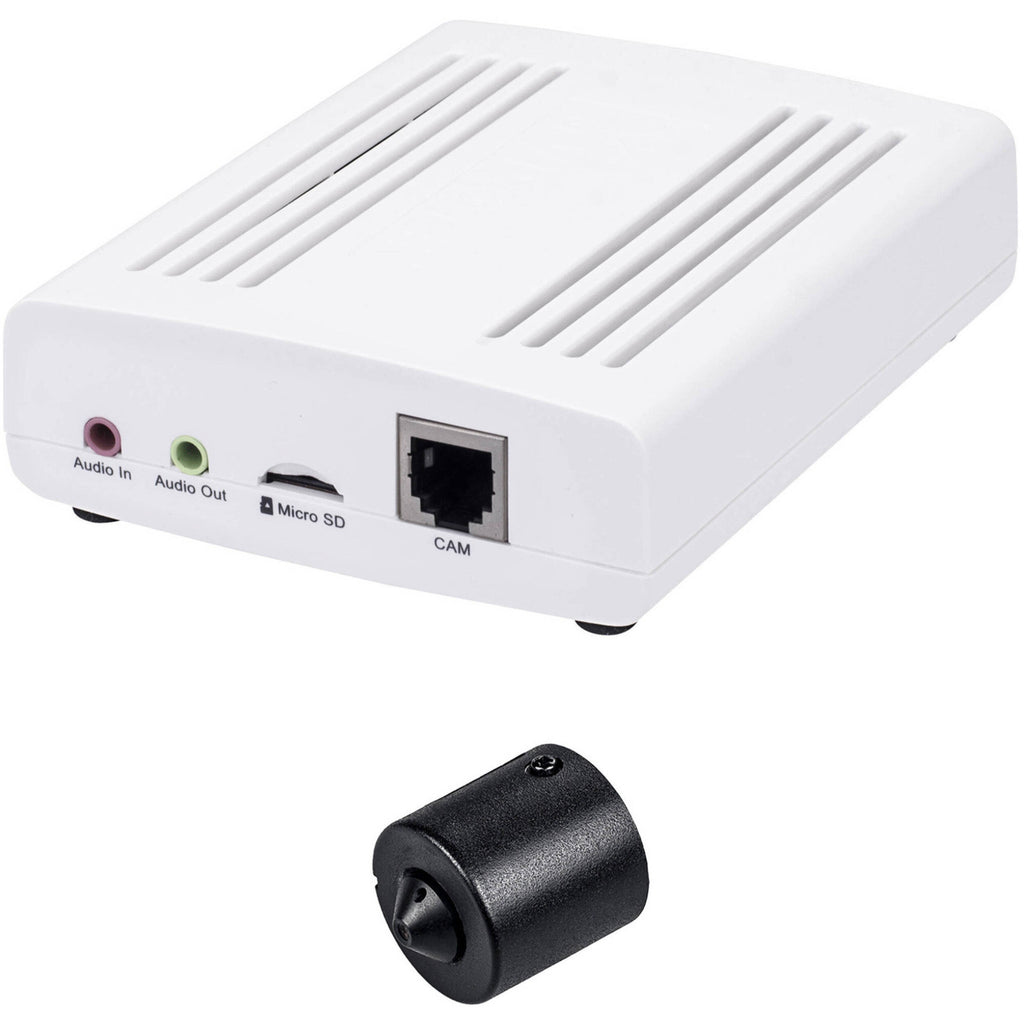

This Kit includes the Vivotek VC9101 Video Core System bundled with the CU9171-H 4MP Modular Camera Sensor & 3.7mm Pinhole Lens for an indoor covert surveillance solution.
Designed for indoor and covert surveillance, the Vivotek VC9101 is a video core system that works in conjunction with the CU series camera units (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. Depending on the camera unit installed, the VC9101 can stream a 5MP 360? fisheye image or a 4MP 16:9 image. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified video core system complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.

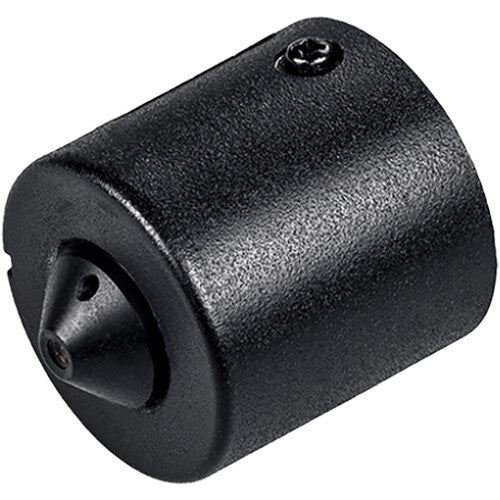

Designed for covert surveillance, the Vivotek CU9171-H 4MP Modular Camera Sensor with 3.7mm Pinhole Lens works in conjunction with the VC9101 Video Core System (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. The camera features a cylinder-shaped sensor unit with a 3.7mm pinhole lens and 16.4' cable for flexible placement. The lens delivers a 93? horizontal field of view.
Items Included
- Vivotek VC9101 Indoor Video Core System
- Installation Kit
- Limited 36-Month Manufacturer Warranty
- Vivotek CU9171-H 4MP Indoor Modular Camera Sensor with 3.7mm Pinhole Lens
- Limited 36-Month Manufacturer Warranty
Additional Resources
Guides & Manuals
Vivotek VC9101 Indoor Video Core System
| Power I/O |
1x DC
1x RJ45 |
| Automatic Gain Control |
No
|
| Multi-View Streaming |
Yes: 3 Streams
|
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711, G.726
|
| Memory |
2 GB RAM / 8000 MB Flash
|
| External Storage Options |
Cloud, NAS
|
| Analytics |
Motion Detection, Face Detection
|
| Built-In Installation Aids |
Pixel Counter
|
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
| Power I/O |
1x DC
1x RJ45 |
| Power Consumption |
8.5
|
| Environmental Resistance |
No
|
| Certifications |
EN 55022 Class B, RCM, UL
|
| Startup Temperature |
32 to 122?F / 0 to 50?C
|
| OS Compatibility |
Windows 7 or Later / macOS 10.12 or Later
|
| OS Compatibility |
Windows 7 to 10
macOS 10.12 |
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
1.2 x 4.1 x 3.3" / 30 x 105 x 84 mm
|
| Weight |
6.7 oz / 190 g (Body Only)
|
| Package Weight |
0.67 lb
|
| Box Dimensions (LxWxH) |
7.7 x 5.1 x 2.6"
|
