Description
Vivotek IT9383-HVW Overview

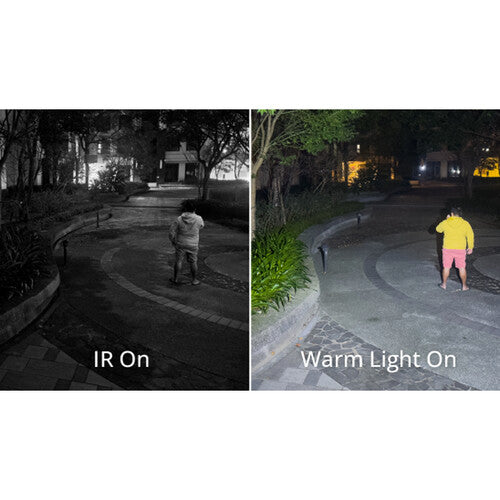

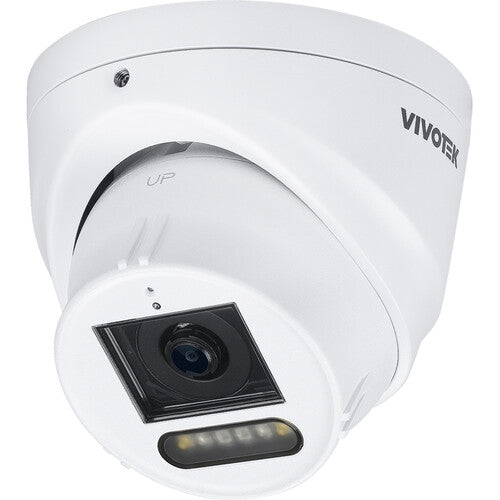

Securely monitor your surroundings with the IT9383-HVW 5MP Outdoor Network Turret Camera from Vivotek. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. Additionally, warm light illuminators provide up to 98' of visibility in low-light conditions. The 2.8mm fixed lens delivers a 103.4? horizontal angle of view. A built-in microphone enables the camera to pick up audio from up to 16' away. An onboard card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
Additional Details
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- Smart IR technology
- Smart Stream III optimizes bandwidth efficiency
- WDR Pro

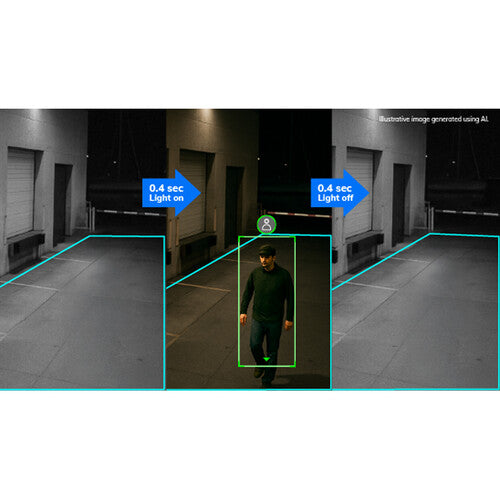

- Smart motion detection includes five-window video motion detection, people detection, vehicle detection, and time filter

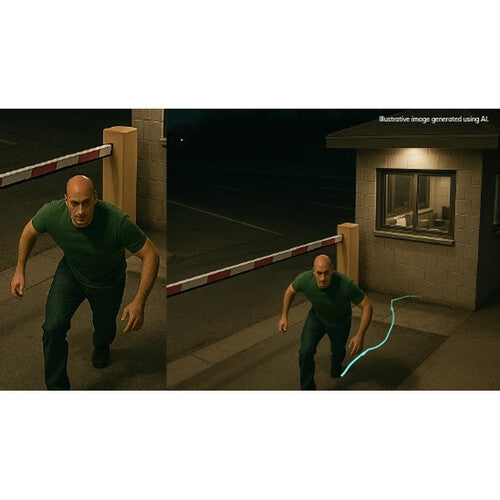

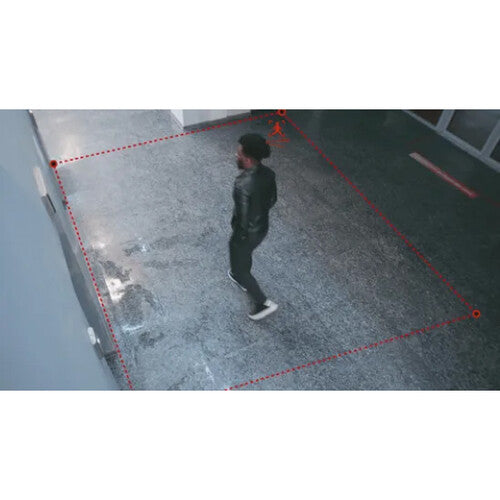

- Smart VCA includes intrusion detection, loitering detection, line crossing detection, face detection, unattended object detection, missing object detection, and crowd detection
- System power and status LED indicators
- Live viewing for up to 10 clients
- Compatible with Microsoft Windows 10, 8, and 7, macOS 10.12 (Chrome only), Chrome 58 or above, VLC 1.1.11 or above, and VADP
- 1-year free trial of Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
Items Included
- Vivotek IT9383-HVW 5MP Outdoor Network Turret Camera with Dual-Light Illumination
- Alignment Sticker
- Screw Pack
- Cable Gland
- Limited 5-Year Manufacturer Warranty
Additional Resources
Vivotek IT9383-HVW Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 103.4?
Vertical: 75.3? Diagonal: 135.2? |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8mm Lens:
Detect: At 198.1' / 60.4 m Observe: At 79.2' / 24.1 m Recognize: At 39.5' / 12.0 m Identify: At 19.6' / 6.0 m |
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Signal-to-Noise Ratio |
58 dB
|
| Minimum Illumination |
0.055 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
2.8mm
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 103.4?
Vertical: 75.3? Diagonal: 135.2? |
| Maximum Aperture |
f/2
|
Video
| Supported Protocols |
Video Streaming Protocol
ARP/Bonjour/CIFS/SMB/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/NTP/ONVIF Profile G/ONVIF Profile M/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTP/RTSP/SFTP/SMTP/SNMP v1/v2c/v3 (MIB-II)/SSL/TLS/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2560 x 1920 up to 30.00 fps 1920 x 1080 up to 60.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 350?
Vertical: 0 to 70? Rotation: -175 to 175? |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, MP2
|
| Built-In Microphone |
Yes
|
| Memory |
2 GB RAM / 8000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Abandoned Object, Face Detection, Intrusion Detection, Loitering, Motion Detection, Object Counting, Object Detection, Object Removal, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 5.5 to 7 W with IR Off
PoE: 10.7 W with IR On |
Environmental
| Operating Conditions |
-22 to 122?F / -30 to 50?C up to 90% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
-14 to 122?F / -25 to 50?C
|
General
| Certifications |
BIS, BSMI, CB, CE, EN, FCC, IC, ICES, IEC/EN, RCM, UKCA, UL, VCCI
|
| Illumination |
IR LEDs up to 98.4' / 30 m
Warm Lights up to 98.4' / 30 m |
| OS Compatibility |
Windows 7 to 10 / macOS 10.12 Only
|
| Dimensions (W x H x D) |
4.7 x 3.7 x 4.7" / 120 x 95 x 120 mm
|
| Weight |
1.6 lb / 730 g (Body Only)
|
Packaging Info
| Package Weight |
2.445 lb
|
| Box Dimensions (LxWxH) |
8.1 x 7.9 x 6.5"
|
