Description

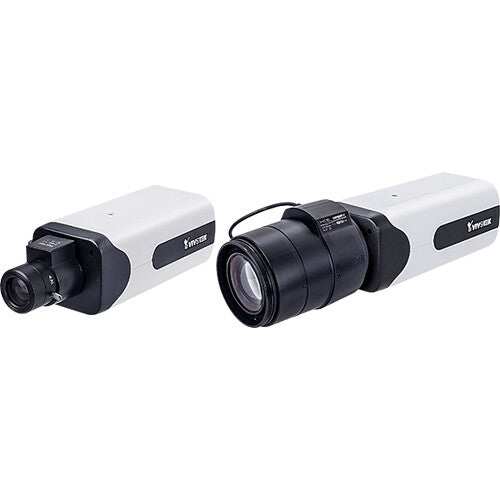

Vivotek IP9165-LPRKIT-S-V2 Overview
Capture license plates of moving vehicles with the IP9165-LPRKIT-S-V2 2MP License Plate Recognition Camera from Vivotek. This unit captures license plates of vehicles traveling at up to 110 mph. It features a 1/2" progressive scan CMOS sensor to capture 1080p resolution video at up to 60 fps. The camera's 9-50mm varifocal lens delivers a 42.8 to 8.3? horizontal angle of view. Two-way audio is possible thanks to an audio input and output. A preinstalled 32GB microSD is preinstalled for storing LPR images. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Additional Details
- ANPR (automatic number plate recognition) with license
- ANPR Gen 2 software embedded
- Multimedia SoC CPU with built-in hardware deep learning accelerator
- Removable IR cut filter enables day and night switching
- IR cut filter features headlight filter designed for anti-glare
- AE-237/241/242 enclosures can be used for outdoor installations (available separately)
- WDR Pro II
- Live viewing for up to 10 clients
- 2 x digital I/O
- Compatible with Windows 8 & 7, macOS 10.12 (Chrome only), Chrome 58 or higher, VLC 1.1.11 or higher, Trend Micro IoT Security, and VADP package
- LED indicators for system power and status
Items Included
- Vivotek IP9165-LPRKIT-S-V2 2MP License Plate Recognition Camera with 9-50mm Lens
- 9-50mm Lens
- Preinstalled 32GB microSD Card
- Screws
- Camera Stand
- L-Wrench
- Limited 5-Year Manufacturer Warranty
Additional Resources
Vivotek IP9165-LPRKIT-S-V2 Specs
Key Specs
| Image Sensor |
1/2"-Type CMOS
|
| Focal Length |
9 to 50mm
|
| Field of View |
Horizontal: 42.8 to 8.3?
Vertical: 24.3 to 4.7? Diagonal: 48.9 to 9.46? |
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
|
Imaging
| Lens Mount |
CS
|
| Number of Lenses |
1
|
| Image Sensor |
1/2"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Signal-to-Noise Ratio |
66 dB
|
| Minimum Illumination |
0.01 Lux
|
Lens
| Focal Length |
9 to 50mm
|
| Max Optical Zoom |
5.5x
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 42.8 to 8.3?
Vertical: 24.3 to 4.7? Diagonal: 48.9 to 9.46? |
| Maximum Aperture |
f/1.5 to 1.6
|
Video
| Supported Protocols |
Video Streaming Protocol
ARP/Bonjour/CIFS/SMB/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/NTP/ONVIF Profile G/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTP/RTSP/SFTP/SMTP/SNMP v1/v2c/v3 (MIB-II)/SSL/TLS/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 60.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [32 GB Maximum]
|
| Other I/O |
1x RJ45
1x BNC 1x 9-Pin (RS-485) 2x Micro-USB |
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, MP2
|
| Built-In Microphone |
No
|
| Memory |
2 GB RAM / 8000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
License Plate Recognition, Motion Detection
|
| Built-In Installation Aids |
Remote Focus, Remote Zoom
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 10 W
Power Supply: 12 VDC 8.88 W Power Supply: 24 VAC 17 W |
Environmental
| Operating Conditions |
14 to 140?F / -10 to 60?C up to 90% Humidity
|
| Startup Temperature |
32 to 122?F / 0 to 50?C
|
General
| Certifications |
BIS, BSMI, C-Tick, CE, FCC, UL, VCCI, cUL
|
| OS Compatibility |
Windows 7 to 8 / macOS 10.12 Only
|
| Dimensions (W x H x D) |
3.1 x 3.3 x 10.4" / 78 x 84 x 263 mm
|
| Weight |
2.1 lb / 970 g (Body Only)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
