Description
Vivotek CC831-HV Overview

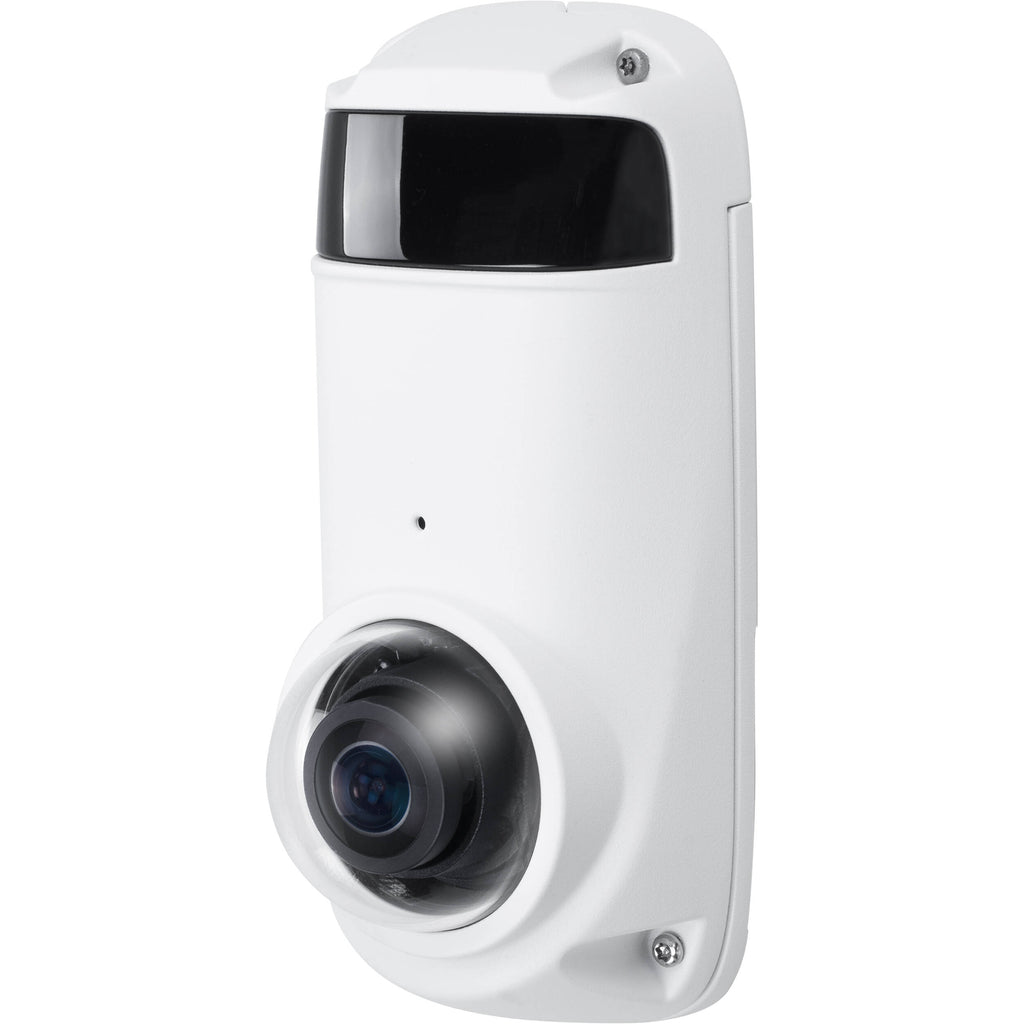

Securely monitor your surroundings with the CC831-HV-1Y 5MP Outdoor AI 180 Panoramic Camera with 1-Year xPro License from Vivotek. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 15 fps. IR LEDs provide up to 65.6' of night vision. The camera's fixed panoramic lens delivers a wide 180? of view to see everything in front of it. An onboard memory card slot accepts microSD/SDHC/SDXC cards, and a 256GB SD card comes built-in. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera comes with a one-year standard xPro AI license for added AI detection analytics. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at high risk of vandalism. An integrated heater that ensures the camera will be operational in temperatures as low as -40?F.
xPro License
This camera includes one year of full AI-powered capabilities, including Deep Search, and an exclusive 10-year warranty. With advanced AI capabilities, xPro offers greater flexibility to meet your operational needs without additional integration costs.
180? Panoramic View
Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180? panoramic field of view.
Tilt Bracket for Greater View
The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15-20?, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your coverage.
AI Analytics
Integrated AI technology provides real-time alerts and notifications and analytics such as color, gender, and type, as well as object tracking.
Advanced Deep Search
Machine learning enhances accuracy over time, and you can also utilize a deep search using AI that turns hours of investigation into seconds. It includes Attribute Search, Scene Search, and Re-Search using metadata-defined attributes and rules. This eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.
Durable Design
The camera is designed for outdoor installation and is rated IK10 for impact resistance and IP66 for weatherproofing, ensuring durability in harsh weather conditions.
Items Included
- Vivotek CC831-HV-1Y 5MP Outdoor AI 180? Panoramic Camera with 1-Year xPro License
- Mounting Bracket
- Tilt Bracket
- Screw Pack
- Limited 10-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vivotek CC831-HV Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
1.47mm
|
| Field of View |
Horizontal: 180?
Vertical: 120? Diagonal: 180? |
| Output Formats |
Ethernet:
2560 x 1920 at 15 fps 1280 x 960 at 15 fps |
| Pan/Tilt |
Tilt: 40? (-20 to 20?)
|
| Built-In Microphone |
Mono
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel (2560 x 1920)
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Minimum Illumination |
0.08 Lux at f/2.7 Aperture (Color)
0.005 Lux at f/2.7 Aperture (Black and White) |
Lens
| Focal Length |
1.47mm
|
| Field of View |
Horizontal: 180?
Vertical: 120? Diagonal: 180? |
| Maximum Aperture |
f/2.7
|
Video
| Output Formats |
Ethernet:
2560 x 1920 at 15 fps 1280 x 960 at 15 fps |
| Supported Protocols |
Camera Control Protocol
IP Video Streaming Protocol SSL/TLS/ICMP/NTP/DNS/UDP/QoS Layer 3 DiffServ/ARP/HTTP/DHCP/TCP/IPv4/v6/RTP/RTCP/RTSP |
| Max IP Streaming |
via RJ45
2560 x 1920 up to 15 fps |
| Multi-View Streaming |
Yes: 6 Streams
|
Control
| Pan/Tilt |
Tilt: 40? (-20 to 20?)
|
Networking
| Security |
HTTPS
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Built-In Microphone |
Mono
|
| External Storage Options |
Cloud
|
System Integration
| Analytics |
Abandoned Object, Camera Sabotage/Tampering, Intrusion Detection, Loitering, Object Detection, Object Removal, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Remote Focus
|
Sensors & Alarms
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 10.26 W with IR On
PoE: 6.96 W with IR Off |
Environmental
| Operating Conditions |
-22 to 131?F / -30 to 55?C up to 98% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
-14 to 131?F / -25 to 55?C
|
General
| Materials |
Metal
|
| Certifications |
CB, CE, EN, FCC, IEC, IEC/EN, RCM, UL, VCCI
|
| Illumination |
4x IR LEDs up to 65.6' / 20 m
|
| Dimensions (W x H x D) |
2.8 x 6.3 x 2.4" / 72 x 160 x 60 mm
|
| Weight |
1.1 lb / 492 g (Body Only)
|
