Description
Uniview IPC3535SR4-ADZK-H Overview

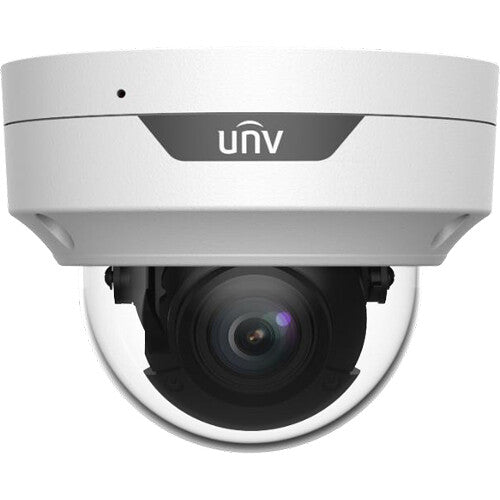

Monitor your surroundings with the IPC3535SR4-ADZK-H 5MP Outdoor Network Dome Camera with 2.8-12mm Lens from Uniview. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2688 x 1620 resolution video at 25 fps paired with a 2.8-12mm motorized varifocal lens with a wide dynamic range. IR LEDs provide up to 131' of night vision.
Additional Details
- Its PTZ design delivers a 96.4 to 32.7? horizontal field of view with endless 360? panning and a 0 to 90? tilt range
- Audio recording is possible via a built-in microphone
- An onboard card slot supports microSD cards up to 256GB (available separately)
- Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable
- This PTZ camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices
- Detection features include cross-line, motion, tampering, audio, and intrusion detection
- It is housed in an IP67- and IK10-rated enclosure for safe outdoor use in areas at risk of vandalism
- Multiple security features, including password protection, encryption, and digest authentication
- Control with EZStation, EZView, and EZLive software clients
Items Included
- Uniview IPC3535SR4-ADZK-H 5MP Outdoor Network Dome Camera with 2.8-12mm Lens
- Limited 3-Year Manufacturer Warranty
Additional Resources
Uniview IPC3535SR4-ADZK-H Specs
Key Specs
| Image Sensor |
1/2.7"-Type CMOS
|
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 96.4 to 32.7?
Vertical: 51.3 to 18.6? Diagonal: 101.2 to 37.2? |
| Output Formats |
Ethernet:
2880 x 1620 at 25 fps 2560 x 1440 at 25 fps 2304 x 1296 at 30 fps 1920 x 1080 at 30 fps 1280 x 720 at 30 fps 720 x 576 at 30 fps 640 x 360 at 30 fps |
| Pan/Tilt |
Programmed
Pan: 360? Tilt: 90? (0 to 90?) |
| Built-In Microphone |
Stereo
|
| Power I/O |
1x Barrel (12VDC)
1x RJ45 (12VDC) Input |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.7"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel (2880 x 1620)
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8 to 12mm Lens:
Detect: 206.7 to 885.8' / 63 to 270 m Observe: 82.7 to 354.3' / 25.2 to 108 m Recognize: 41.3 to 177.2' / 12.6 to 54 m Identify: 20.7 to 88.6' / 6.3 to 27 m |
Exposure Control
| Shutter Speed |
1/100000 to 1 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
52 dB
|
| Minimum Illumination |
0.001 Lux at f/1.6 Aperture (Color)
0 Lux at f/1.6 Aperture (Black and White) |
Lens
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 96.4 to 32.7?
Vertical: 51.3 to 18.6? Diagonal: 101.2 to 37.2? |
| Maximum Aperture |
f/1.6
|
Video
| Output Formats |
Ethernet:
2880 x 1620 at 25 fps 2560 x 1440 at 25 fps 2304 x 1296 at 30 fps 1920 x 1080 at 30 fps 1280 x 720 at 30 fps 720 x 576 at 30 fps 640 x 360 at 30 fps |
| Supported Protocols |
Camera Control Protocol
IP Video Streaming Protocol API/SDK/FTP/ICMP/SMTP/SNMP v1/v2c/v3 (MIB-II)/ONVIF Profile T/ARP/HTTP/PPPoE/SSL/TLS/DDNS/NTP/IGMP/DNS/UDP/QoS Layer 3 DiffServ/DHCP/TCP/ONVIF Profile G/RTMP/IPv4/v6/RTP/UPnP/RTCP/RTSP/ONVIF Profile S |
| Max IP Streaming |
via RJ45
2688 x 1620 up to 25 fps |
| Multi-View Streaming |
Yes: 2 Streams
|
Control
| Camera Angle Adjustment |
Rotation: 0 to 360?
|
| Pan/Tilt |
Programmed
Pan: 360? Tilt: 90? (0 to 90?) |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
Stereo
|
| Built-In Speaker |
No
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Audio Detection, Camera Sabotage/Tampering, Motion Detection, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC)
1x RJ45 (12VDC) Input |
| Power Consumption |
PoE: 8 W
|
Environmental
| Operating Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
General
| Materials |
Metal
|
| Certifications |
CE, RoHS, UL, WEEE
|
| Illumination |
850 nm IR LEDs up to 131.2' / 40 m
|
| Dimensions (W x H x D) |
5 x 3.9 x 5" / 128 x 100 x 128 mm
|
| Weight |
1.5 lb / 660 g (Body Only)
|
