Description

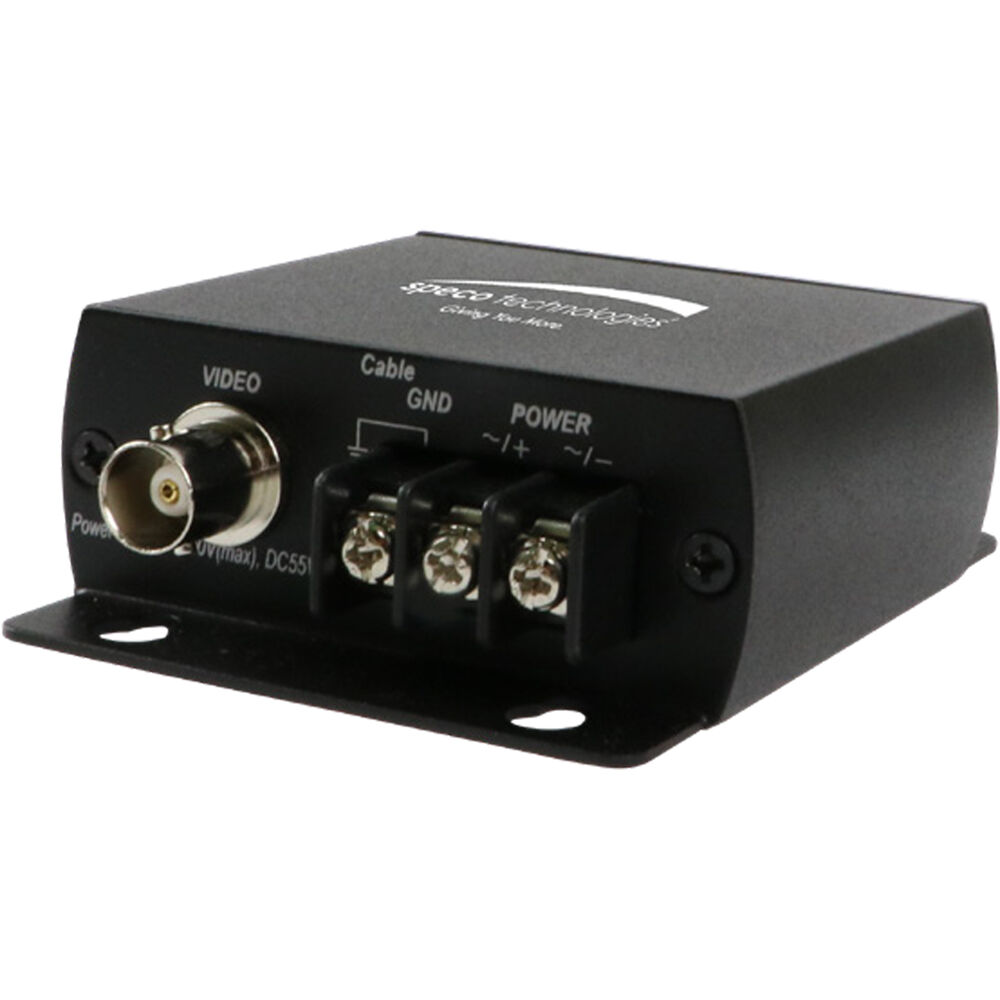

Speco Technologies SPTVIVP Overview
Ensure that your analog cameras remain functional and safe from lightning strikes and power surges with the SPTVIVP HD-TVI Video & Power Surge Protector from Speco Technologies. This device provides 4kV surge protection with a response time of less than a nanosecond. It supports HD-TVI, HD-CVI, AHD, and CVBS formats.
Items Included
- Speco Technologies SPTVIVP HD-TVI Video & Power Surge Protector
- Limited 2-Year Manufacturer Warranty
Additional Resources
Speco Technologies SPTVIVP Specs
General
| Compatibility |
Various HD-TVI, HD-CVI, AHD & CVBS Cameras
|
Inputs/Outputs
| Ports |

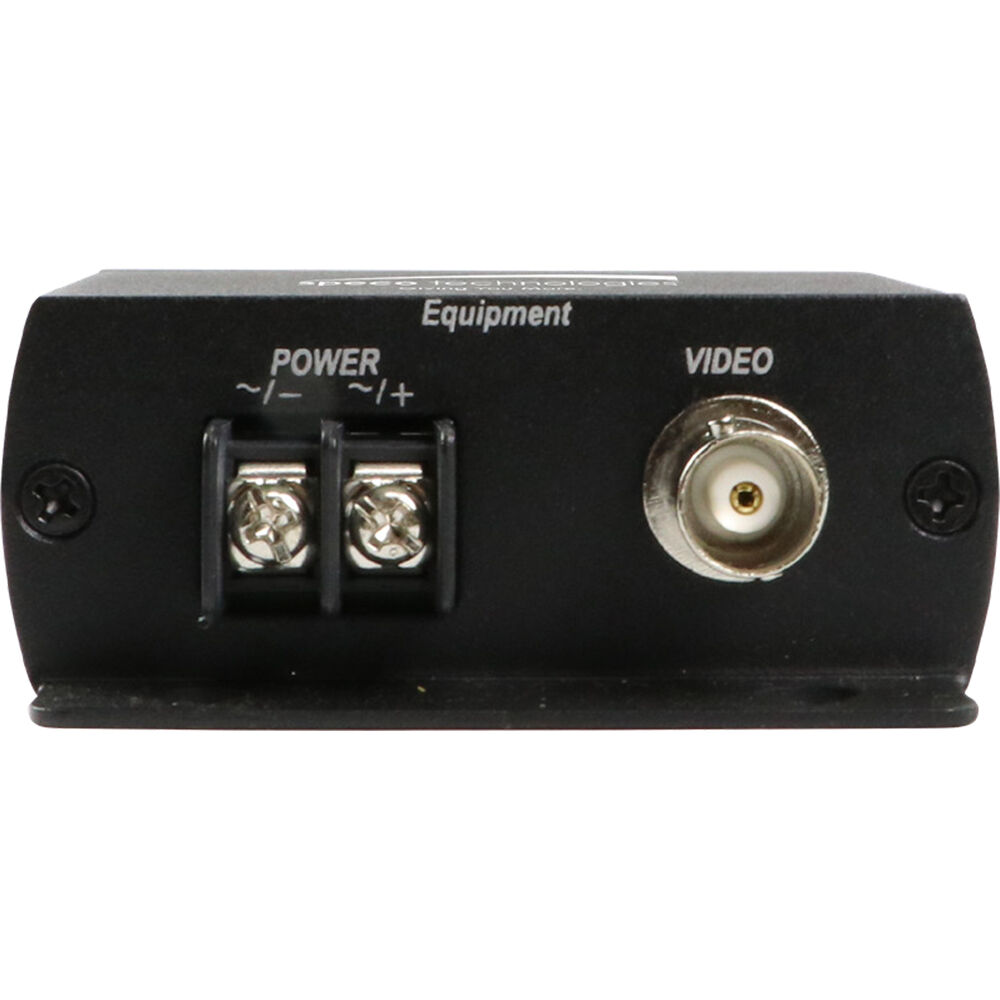

Equipment End: 1 x BNC Female, 1 x 2-Pin Terminal Block
Cable End: 1 x BNC Female, 1 x 3-Pin Terminal Block |
Power
| Power Source |
AC Input, DC Input
|
| DC Input Power |
56 VDC
|
| Power |
Normal Resistance Across Coax: 10,000 M?
Band Pass: 0 to 1 GHz Power Passing Capability: 130 VDC/VAC, 65 Vrms at 10 A Insertion Loss Less than 0.2 dB Return Loss (75?): 16 dB |
Physical
| Color |
Black
|
| Operating Conditions |
14 to 185?F / -10 to 85?C up to 95% Humidity
|
| Storage Conditions |
-40 to 221?F / -40 to 105?C
|
| Dimensions |
3.4 x 2.6 x 1" / 86.4 x 66 x 25.4 mm
|
| Weight |
0.3 lb / 145 g
|
