Description
Speco Technologies O2675T Overview

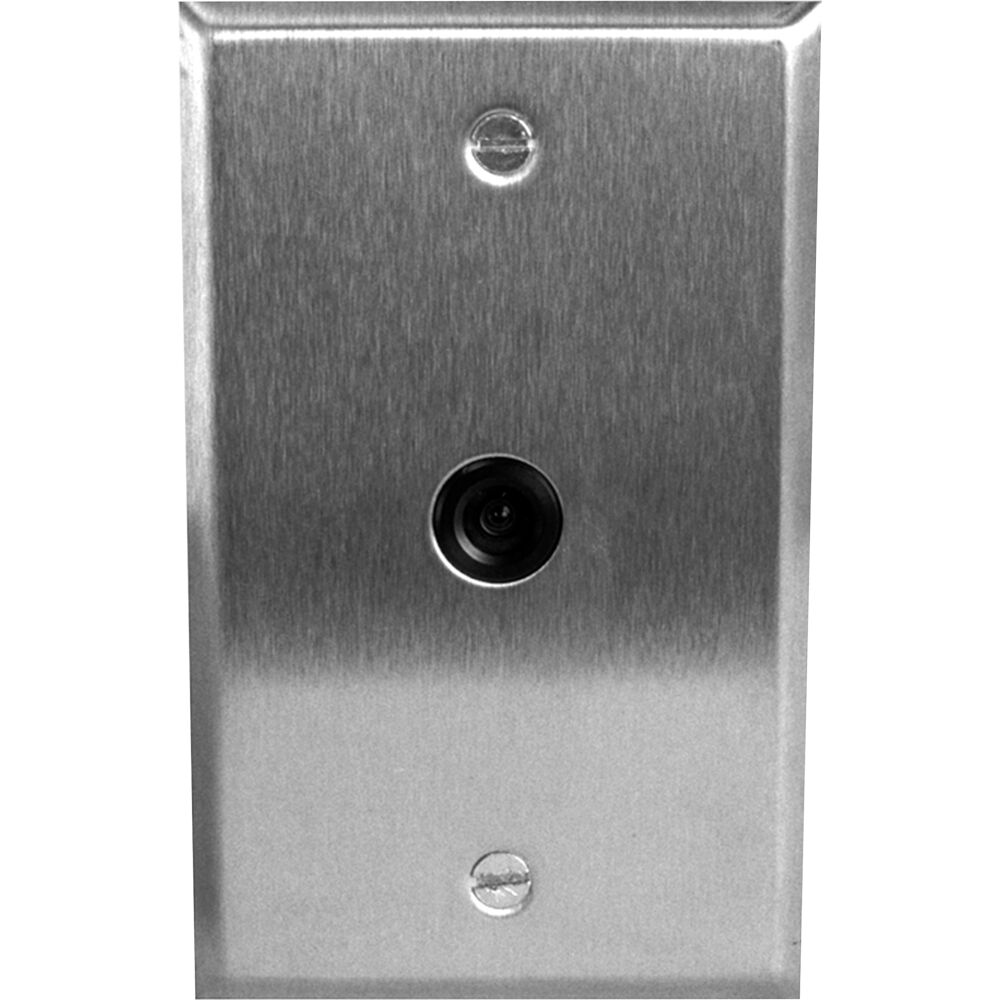

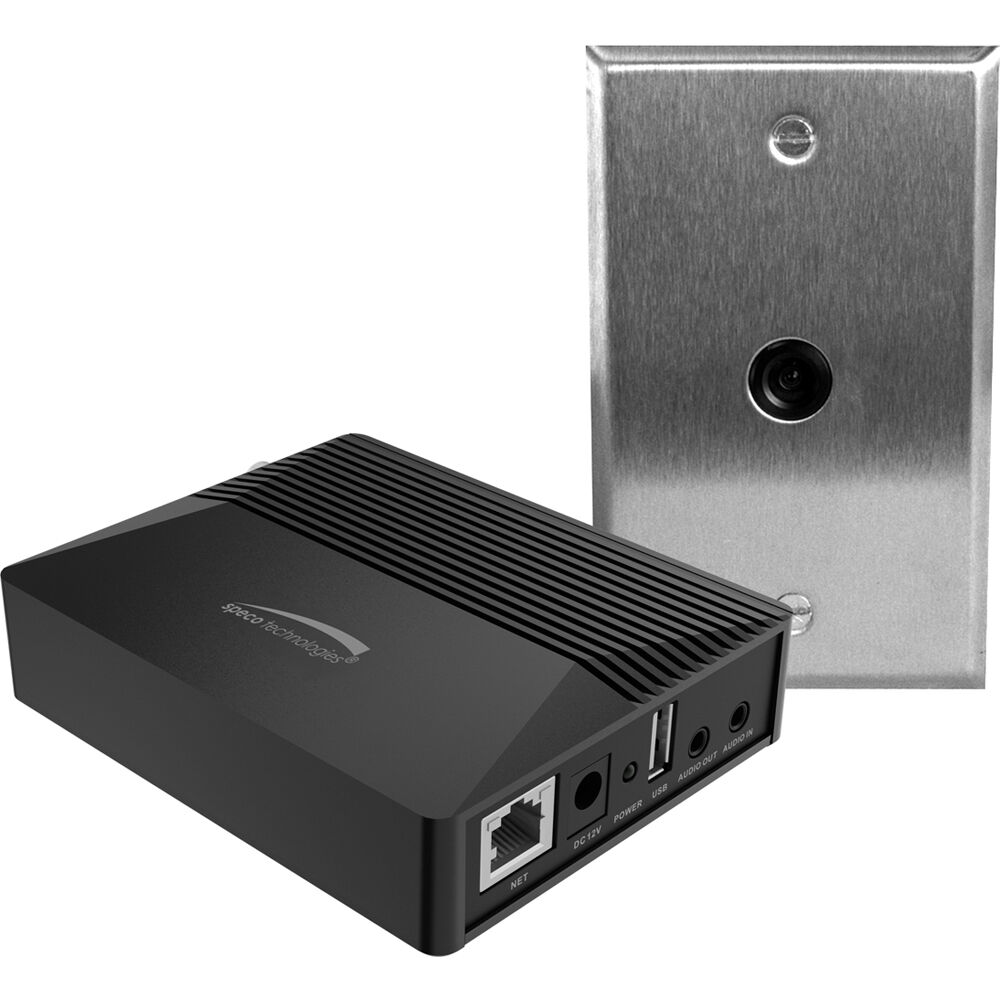

Install a discreet HD camera into your wall for surveillance and security with the O2675T 2MP Wall Plate Camera with Advanced Analytics IP Encoder from Speco Technologies. This compact camera features a 3.6mm lens in the center and installs into a standard 1-gang electrical box via a stainless steel wall plate.

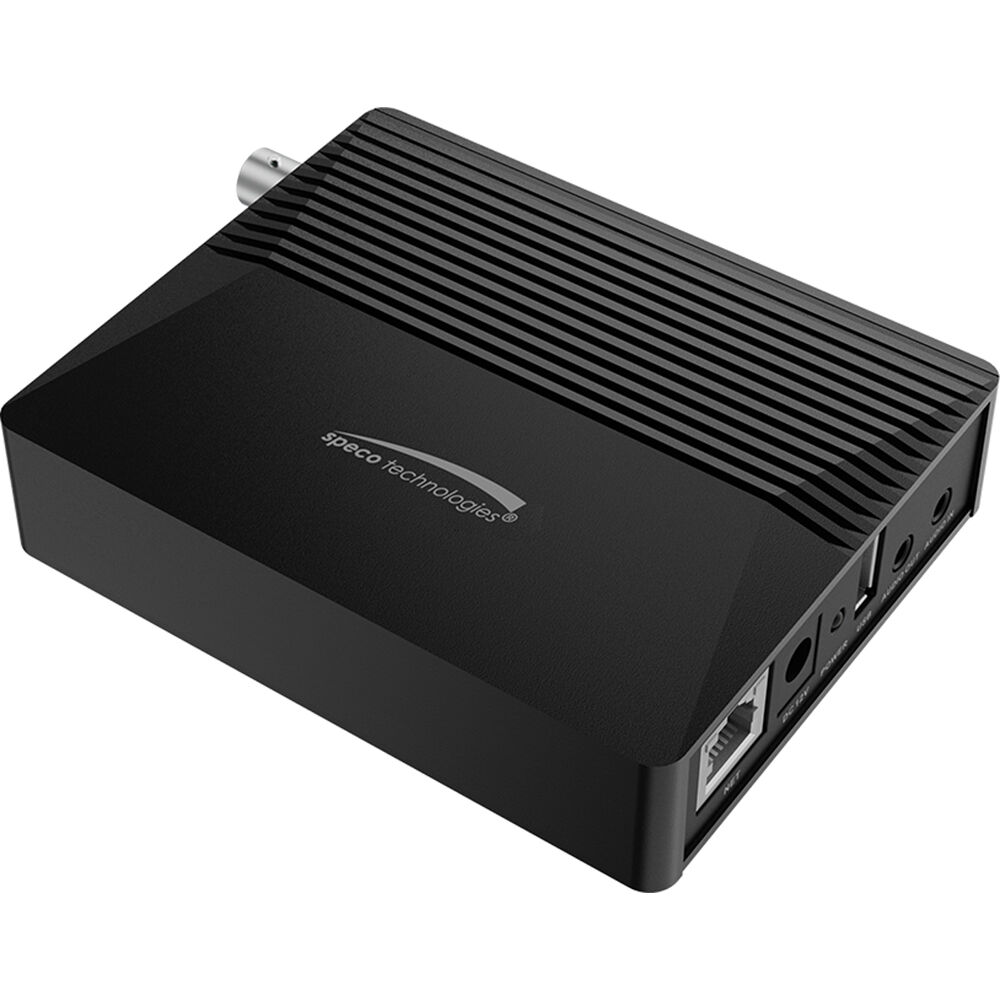

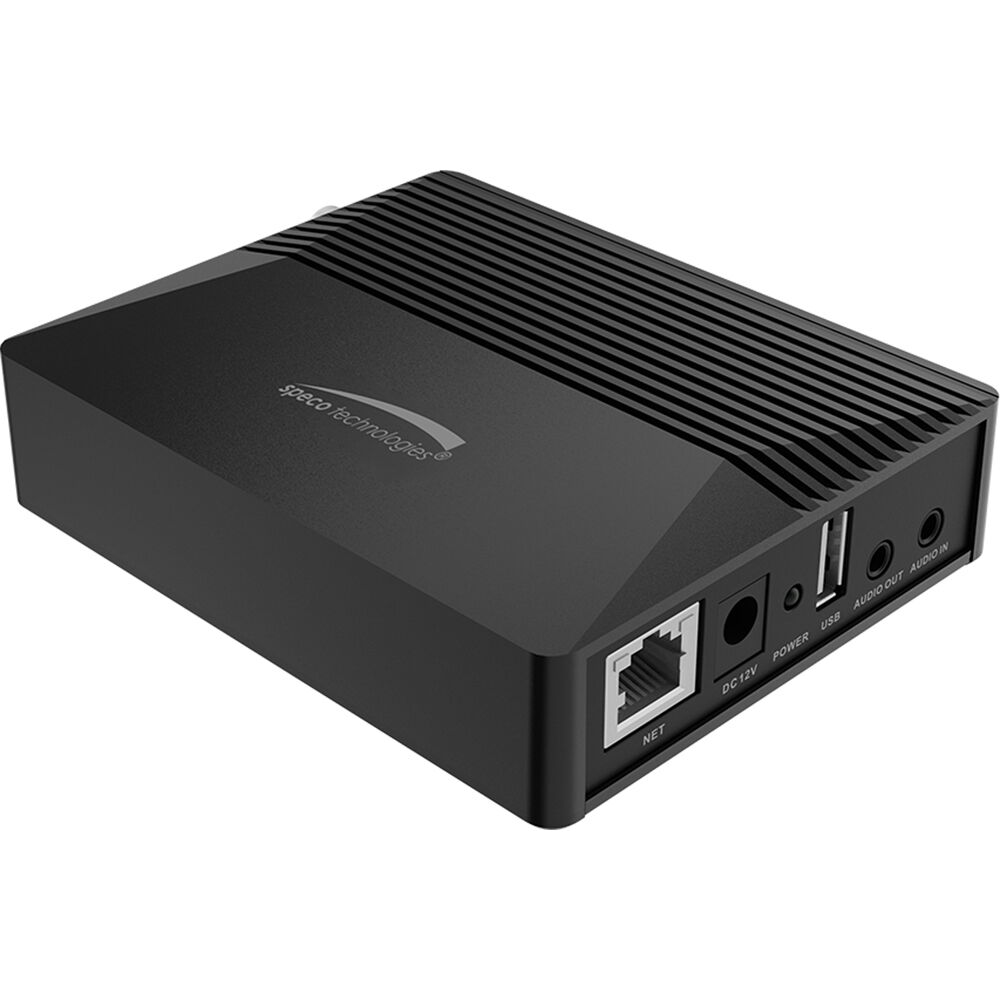

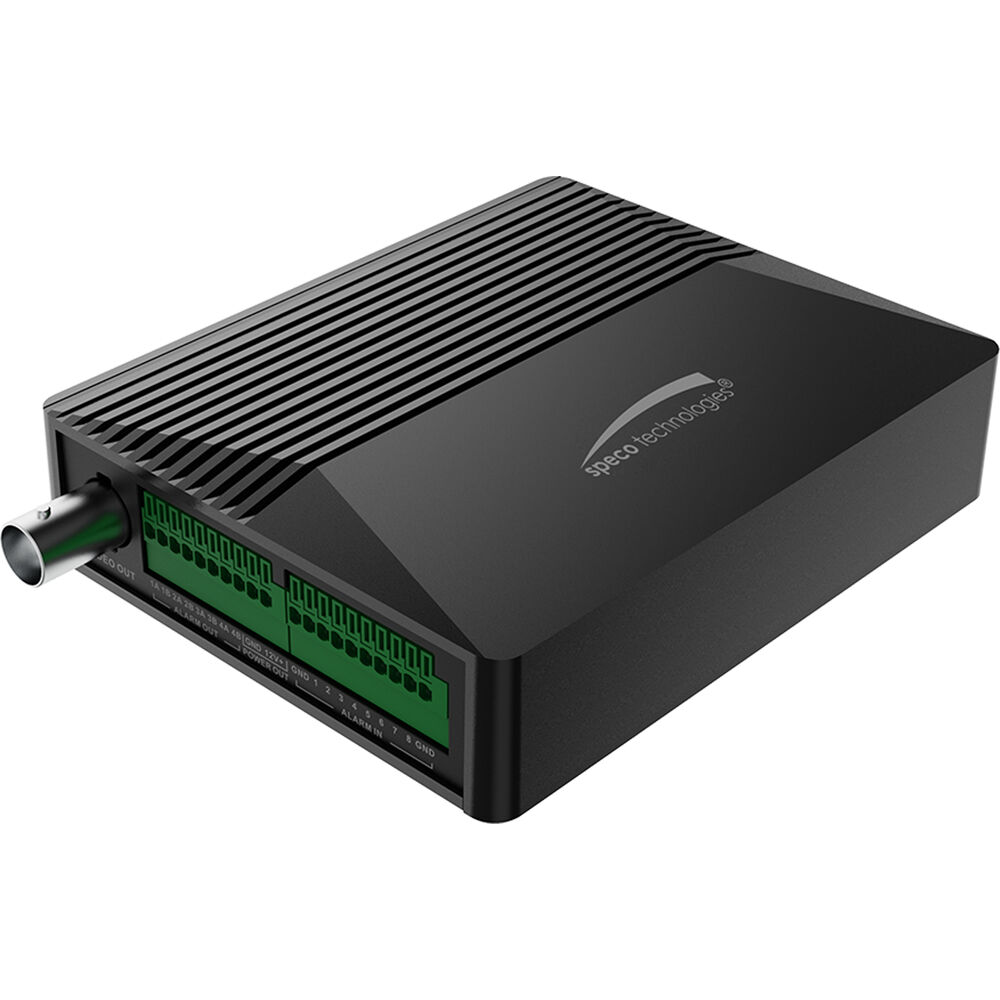

The camera plate connects to the included companion analytics IP encoder that provides wired IP Ethernet, PoE, and 1080p capture via its CMOS sensor. The unit provides numerous analytics, including motion detection, object removal, face detection, and more.
Analytics
- Motion detection
- Object removal
- Abnormality
- Line crossing
- Intrusion
- Target
- Counting
- Face detection
- Missing object
- Detection
- Heat map
Securitty
- User ID and password protection
- IP/Mac address filtering
- Digest authentication
- Maximum of eight simultaneous users (depending on bandwidth)
Compatibility
- Web browser support: Edge, Chrome, Firefox, Safari
- Software applications: SecureGuard VMS/CMS, Speco Blue VMS
- Mobile support Speco Blue app, SecureGuard (iPhone and Android)

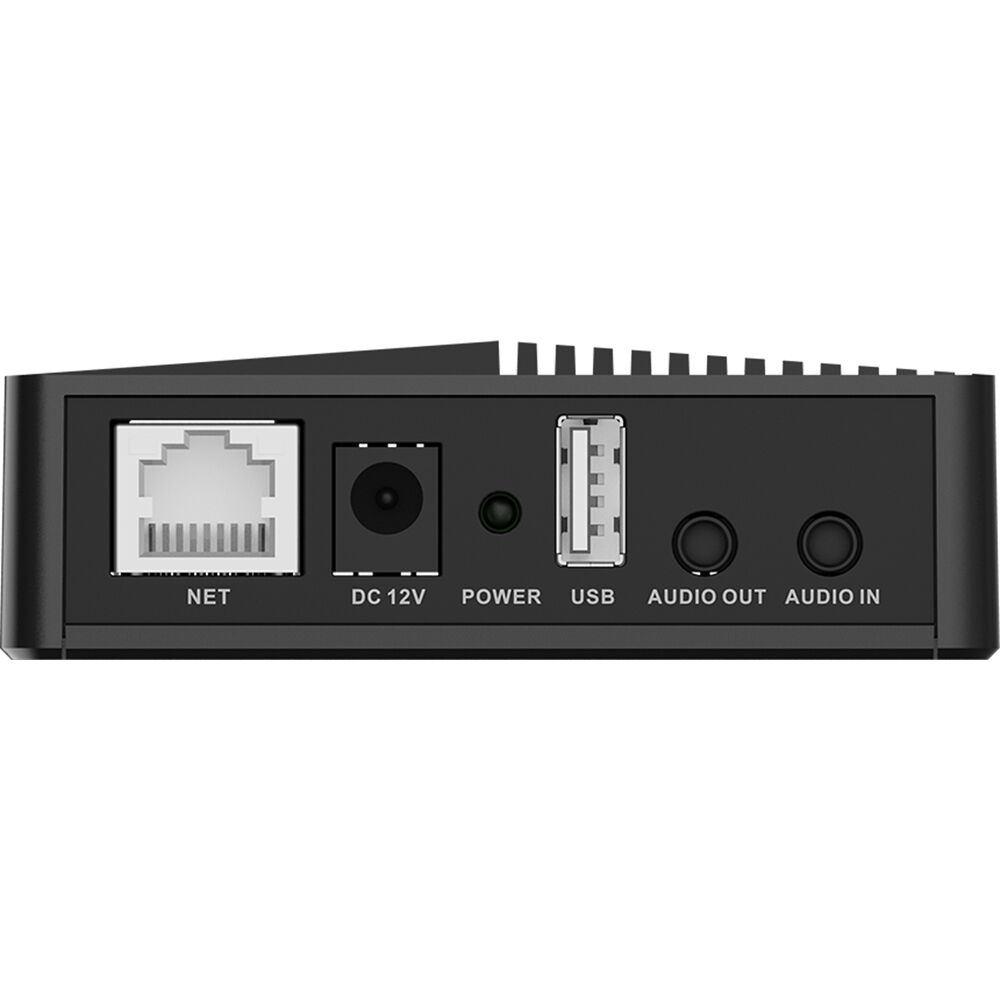

Connectivity
- Wired 10/100 Mb/s Ethernet with three simultaneous H.264/H.265 streams
- PoE support
- BNC video input
- 3.5mm audio input and output
- microSD slot for recording; supports up to 256GB cards
- Analytics unit provides power to camera via the terminal block
Items Included
- Speco Technologies O2675T 2MP Wall Plate Camera with Advanced Analytics IP Encoder
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Speco Technologies O2675T Specs
Key Specs
| Image Sensor |
1/3"-Type CMOS
|
| Focal Length |
3.6mm
|
| Field of View |
Horizontal: 72?
Vertical: 53? |
| Output Formats |
Ethernet:
1920 x 1080p at 30 fps |
| Video I/O |
1x RJ45 LAN Input/Output
1x BNC (3G-SDI) Input |
| Built-In Microphone |
No
|
| Power I/O |
1x Barrel (12VDC) Input
1x Block 2-Pin (12VDC) |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/3"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel (1984 x 1105)
|
| Day/Night |
No
|
Exposure Control
| Shutter Speed |
1/30000 to 1/30 Second
|
| Signal-to-Noise Ratio |
50 dB
|
Lens
| Focal Length |
3.6mm
|
| Field of View |
Horizontal: 72?
Vertical: 53? |
Video
| Output Formats |
Ethernet:
1920 x 1080p at 30 fps |
| Max IP Streaming |
H.264, H.265 via RJ45
1920 x 1080p up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Control
| Supported Control Protocols |
IP
|
Networking
| Security |
Password Protection
|
| Supported Protocols |
DHCP, FTP, HTTP, RTMP, RTP, SFTP, SMTP, TCP, UDP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type)
|
| Video I/O |
1x RJ45 LAN Input/Output
1x BNC (3G-SDI) Input |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Input
1x 1/8" / 3.5 mm TRS Stereo Output |
| Audio Formats |
G.711
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
System Integration
| Analytics |
Abandoned Object, Face Detection, Heat Mapping, Intrusion Detection, Motion Detection, Object Removal, People Counting
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC) Input
1x Block 2-Pin (12VDC) |
| Power Consumption |
PoE: 5.5 W
|
Environmental
| Operating Conditions |
-22 to 140?F / -30 to 60?C at 10 to 95% Humidity
|
General
| Certifications |
FCC, RoHS
|
| Dimensions (W x H x D) |
4.27 x 3.45 x 1.1" / 10.85 x 8.76 x 2.8 cm
|
| Weight |
9.5 oz / 269 g (Body Only)
|
