Description
Speco Technologies N16WNRXM Overview

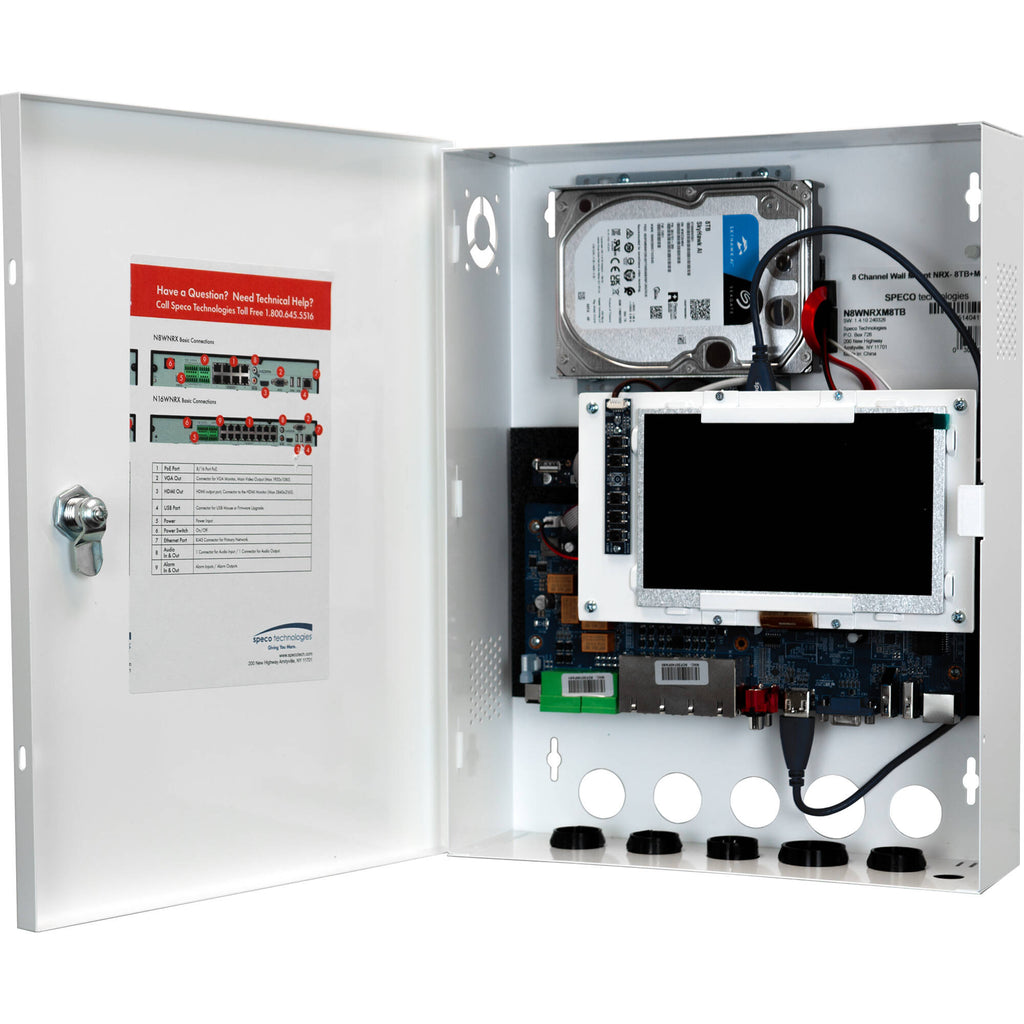

Record from and manage up to 16 cameras at resolutions up to 16MP with the N16WNRXM 16-Channel 8K Wall Mount NVR with Monitor & 2TB HDD from Speco Technologies. This recorder is equipped with two SATA ports that each have a 16TB storage capacity for a total of 32TB (2TB preinstalled). H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This NVR supports HDMI and a VGA video outputs, along with up to 10 users.
Built-in monitor
Up to 16MP (8K) recording resolution at 30 fps in real time
Two SATA ports for up to 32TB of storage (2TB preinstalled)
1 x HDMI and 1 x VGA
Object and line crossing/intrusion (people/vehicle) are supported when used with select Speco Technologies smart analytic cameras
Facial recognition and comparison are supported when used with select Speco Technologies facial detection cameras
Supports LPR (license plate recognition) analytics
Smart Search
Two-way audio
16 x PoE ports
Video export via USB
Free US-based DDNS and P2P server access
Remote viewing via web browser or mobile device
Analytics, continuous, motion, sensor, schedule, and manual recording modes
S.M.A.R.T feature for temperature, power on time, bad sectors, and health checkups
Compatible with SecureGuard VMS, along with Speco Blue mobile app for iOS and Android
UPC: 030519046671
Items Included
- Speco Technologies N16WNRXM 16-Channel 8K Wall Mount NVR with Monitor & 2TB HDD
- USB Mouse
- Remote Control
- Limited 5-Year Manufacturer Warranty (NVR)
- Limited 3-Year Manufacturer Warranty (HDD)
Additional Resources
No additional resources available
Speco Technologies N16WNRXM Specs
Key Specs
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
4K VGA: 1080p |
| Recording Resolution |
1080p, 720p, 960p, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 16 MP
|
| PTZ Support |
Yes
|
| Throughput |
192 Mb/s (Networking)
|
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
2x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
2 TB
|
| PoE Power Budget |
150 W
|
General
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
4K VGA: 1080p |
| Recording Resolution |
1080p, 720p, 960p, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 16 MP
|
| PTZ Support |
Yes
|
| Throughput |
192 Mb/s (Networking)
|
| IP Camera Support |
16
|
| Encoding Resolution |
1080p, 960p, 720p, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 16 MP
|
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
2x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Audio I/O |
16x Input (Network)
|
| System Connection |
2x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Maximum User Access |
10
|
| Network Protocols |
DDNS, DHCP, DNS, NTP, P2P, PPPoE, SMTP, TCP/IP, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.265
|
| Backup Formats |
AVI, JPG, MP4, RPAS, ZIP
|
| Backup Method |
Network, USB Drive
|
System
| Installed Drive |
2 TB
|
| Max Capacity Supported |
16 TB (Each Drive)
32 TB (Total) |
| Number of Bays |
2x Internal
|
Software System Requirements
| OS Compatibility |
Android/iOS
|
| Web Browser Support |
Chrome, Edge, Firefox, Safari
|
Notifications
| Alarm I/O |
8x Input
4x Output |
| Event Trigger |
Analytics
|
| Notification Type |
Email
|
System Functions
| Search Modes |
Bookmark, Date/Time, EZ Search, Event, Log, Motion, Museum, Snapshot
|
| Recording Modes |
Analytics, Continuous, Manual, Motion, Schedule, Sensor
|
| Recording Intervals |
5 Seconds (Pre-Record)
10 Minutes (Post-Record) |
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
15 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
150 W
|
| PoE per Port |
15 W
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 122°F / -10 to 50°C at 10 to 90% Humidity
|
| Certifications |
NDAA
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
19.3 x 16.3 x 3.5" / 489.0 x 413.0 x 89.0 mm
|
