Description
Speco Technologies H24HRLN Overview

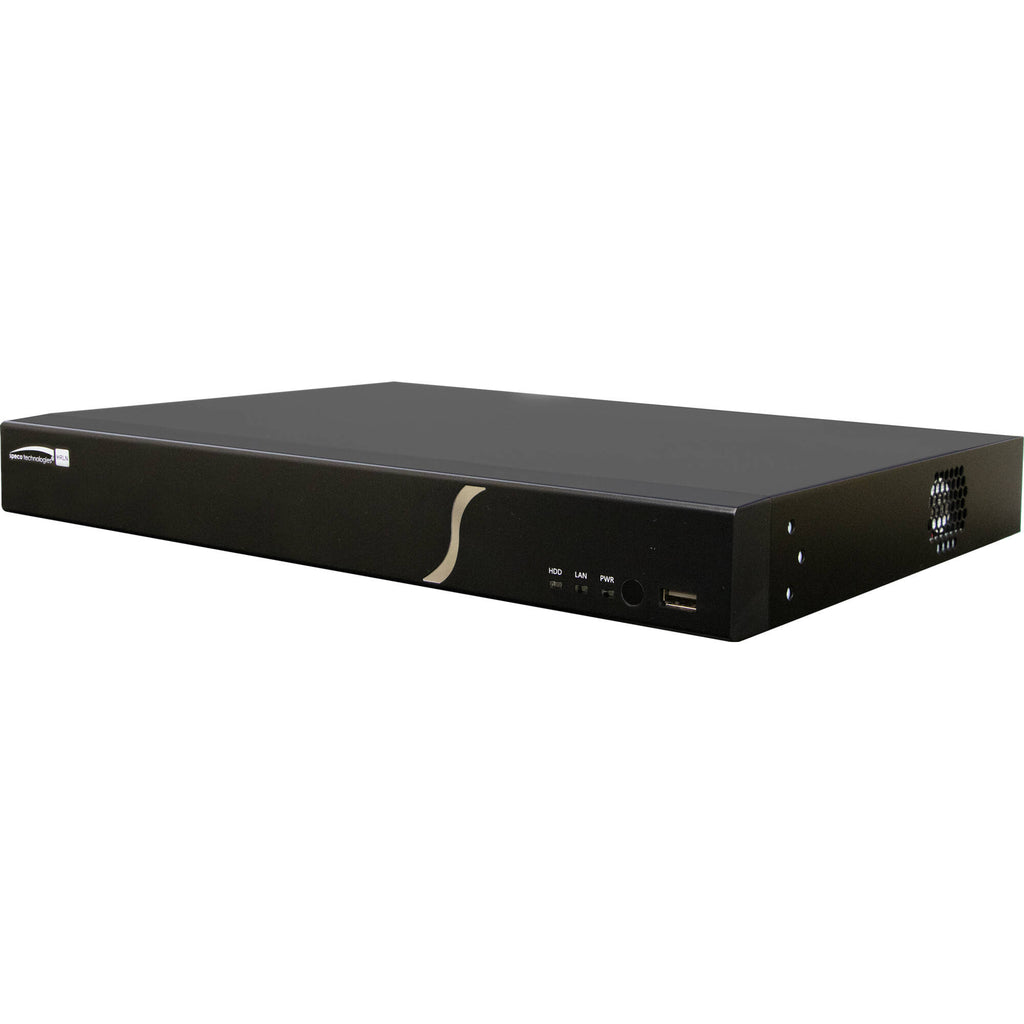

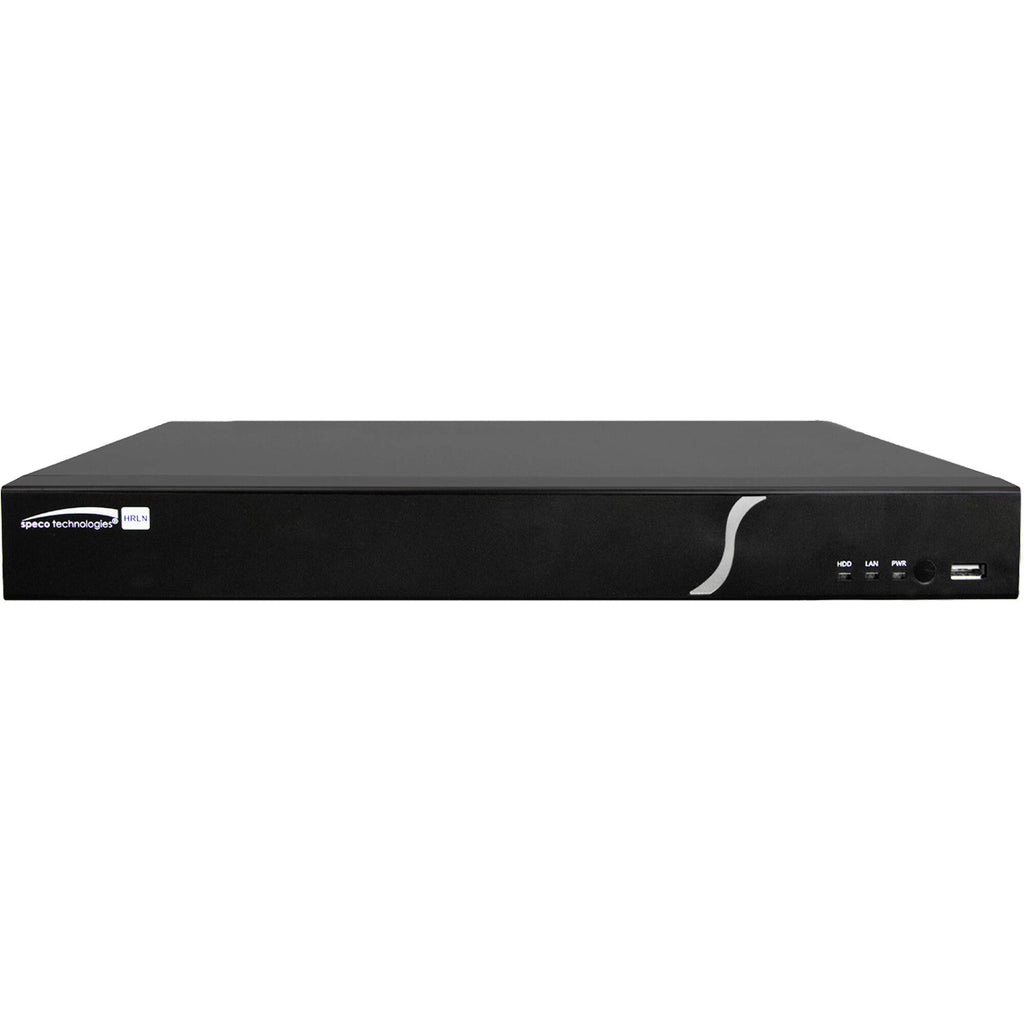

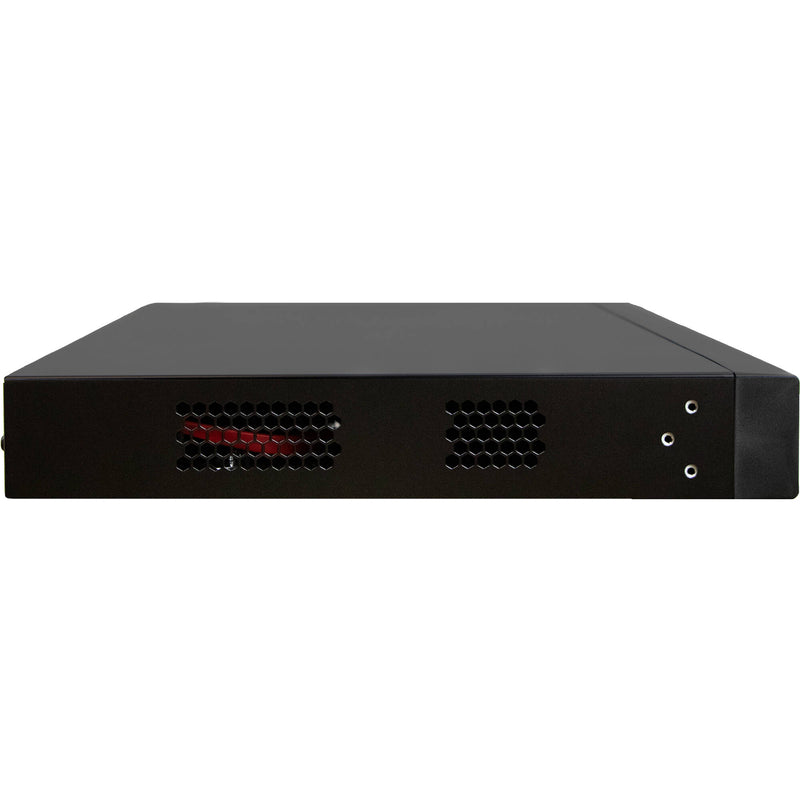

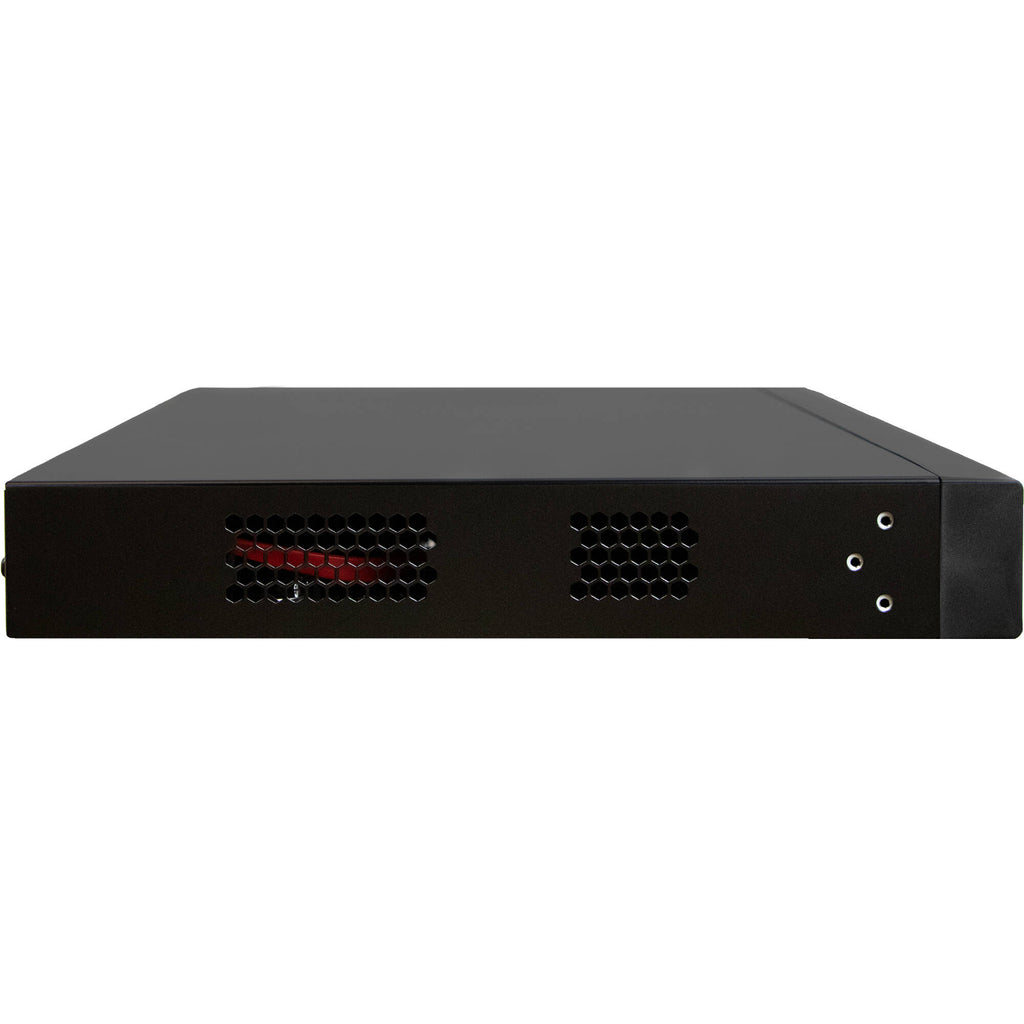

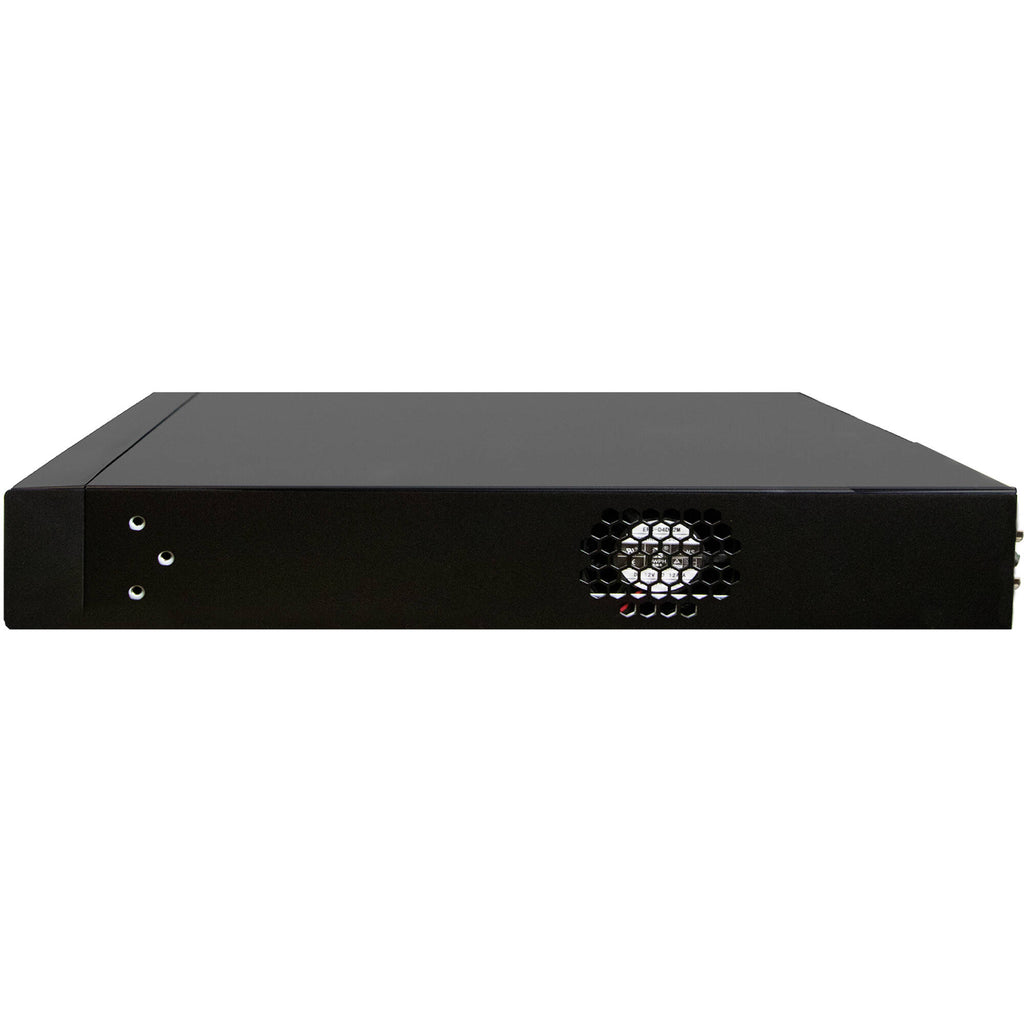

Record from and manage up to 24 cameras with the H24HRLN 24-Channel 5MP HD-TVI Hybrid DVR with 8TB HDD from Speco Technologies at resolutions up to 5MP for 8 configurable hybrid channels, 8 HD-TVI channels, and 8 IP channels. This recorder is equipped with two SATA ports that each support an HDD up to 16TB, for a maximum capacity of 32TB (8TB preinstalled). H.265 video compression keeps file sizes manageable while maintaining the best quality possible.
This recorder supports two-way audio. HDMI and VGA ports enable video output to an external monitor at up to 4K UHD resolution (HDMI output only).
Embedded Linux OS
EZ Wizards simplify use and setup
Two SATA ports for up to 32TB of total storage (8TB preinstalled)
One eSATA port for up to 8TB of additional storage
Simultaneous HDMI & VGA video outputs
CVBS/spot monitor video output
Object and line crossing detection and alerts with Speco Technologies Smart Analytic IP cameras
Smart Search with Speco Technologies Smart Analytic IP cameras enables you to search for changes in a specific area of a camera view
Two-way audio communication
Free US-based DDNS and P2P server access
Remote viewing via web browser, Apple TV, Amazon Fire TV, or mobile device
Compatible with Speco Blue and SecureGuard Client
Video export via USB
Continuous, motion, analytics, and sensor recording modes
Bookmark pins on playback for easy reference
Instant playback of individual channels directly from the live view screen
Customizable channel view placement
Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology for HDD)
NDAA compliant
UPC: 030519039338
In the Box
- Speco Technologies H24HRLN 24-Channel 5MP HD-TVI Hybrid DVR with 8TB HDD
- Remote Control
- Optical Mouse
- Rack Ears
- Power Adapter
- Limited 5-Year Manufacturer Warranty
Speco Technologies H24HRLN Specs
General
| Signal | HD-TVI, IP |
| Number of Channels | 24 |
| Playback Resolution | HDMI: 4K UHD 1920 x 1080 (1080p) 1920 x 1080 VGA: 1920 x 1080 (1080p) 1280 x 1024 1024 x 768 CVBS, Spot: 960H |
| Recording Resolution | 4K at 7 fps 5 MP at 15 fps 1080p, 720p, WD1 at 30 fps |
| PTZ Support | Yes |
| Bit Rate | 32 Mb/s to 78 Mb/s |
| IP Camera Support | 8 |
| Dual Streaming | Yes |
| 2-Way Audio | Yes |
Connectivity
| A/V Inputs/Outputs | HD-TVI: 16 x BNC CVBS: 1 x BNC (, Spot) 8 x RCA Audio Input 1 x RCA Audio Output |
| Communication Inputs/Outputs | 1 x RJ45 Ethernet 2 x USB-A 2.0 |
| Audio Inputs/Outputs | 8 Inputs 1 Output |
| System Connection | 2 x SATA 1 x eSATA |
| Wi-Fi | None |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, NTP, PPPoE, RTSP, SMTP, TCP/IP, UPnP |
| Network Bandwidth | 192 Mb/s |
Compatibility
| Supported Video Codecs | H.265 |
| Backup Method | External HDD, USB Drive |
System
| Installed Drive | 8 TB Hard Drive |
| Max Capacity Supported | 16 TB (Each Drive) 32 TB (Total) |
| OS Compatibility | Android iOS *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Recording Modes | Analytics, Continuous, Motion, Sensor |
| Search Modes | Bookmark, EZ Search, Event, Museum, Snapshot, Timeline |
Notifications
| Alarm Inputs/Outputs | 16 Inputs 4 Outputs |
| Event Trigger | Analytics |
Electrical
| Power Consumption | Without HDD: 12 VDC at 4 A (30 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
Physical
| Certifications | NDAA *as per Manufacturer |
| Built-In Display | None |
| Dimensions (W x D x H) | 15.0 x 10.6 x 1.8" / 380.0 x 268.0 x 45.0 mm |
Packaging Info
| Package Weight | 8.555 lb |
| Box Dimensions (LxWxH) | 20.1 x 13.7 x 4.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
