Description

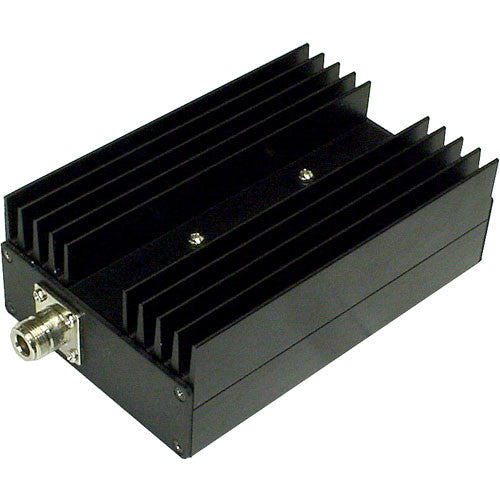

RF-Links ZH-8896/H Overview
The RF-Video ZH-8896/H is an industrial grade amplifier that can be used to boost wireless signals transmitted in the 880 MHz to 960 MHz frequency range. Its rugged construction along with the ability to operate in extreme temperature conditions makes it a particularly good choice for use in military, exploration, mobile surveillance and similar rough wireless monitoring environments.
High performance amplifier with integrated heat sink
Two antenna connectors (In/Out)
Operates in extreme high and low temprature conditions
No tuning or adjustments required
In the Box
- RF-Links ZH-8896/H 20W High Power 880-960 MHz Amplifier
- 1-Year Warranty
RF-Links ZH-8896/H Specs
| Frequency | 880-960 MHz |
| Operating Class | Linear AB |
| RF Power Output | 20W |
| Gain | Not Specified by Manufacturer |
| Input Power | 10-50mW |
| Antenna | Two integrated antenna connectors (antennas not included) |
| Impedance | 50 ohms |
| Power Requirements | 12 VDC |
| Power Consumption | 6.8A |
| Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) |
| Dimensions | 4 x 2 x 6" (102 x 51 x 152mm) |
| Weight | 10.6 oz (300 g) |
RF-Links ZH-8896/H Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 137366.6 |
| 3-5 | ₹ 135964.9 |
| 5-10 | ₹ 133161.5 |
| 10+ | ₹ 130358.1 |
Bulk discount will be automatically applied during checkout based on quantity.
