Description

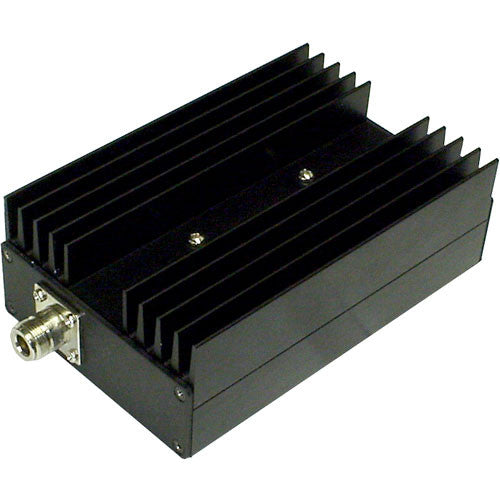

RF-Links AMP-900TX Overview
The RF-Video AMP-900TX is a high performance amplifier, capable of boosting wireless signals transmitted in the 2100-2200 MHz frequency range. Its durable construction along with its ability to withstand extreme temperatures, make it an excellent choice for use in experimental, scientific and surveillance applications. It also provides a viable solution for FM TV exciters. Amplified signals translate into improved video and audio transmissions over greater wireless distances.
Durable and temperature resistant design, perfect for lab and experimental use
Requires 25mW input power, delivers 10W output power
Operates on optional battery power
Accepts "N" type antennas
In the Box
- RF-Links ZH-2122 10-Watt High Power Amplifier for 2100-2200 MHz Band
- 1-Year Warranty
RF-Links AMP-900TX Specs
| Frequency | 2100-2200 MHz |
| Operating Class | Linear AB |
| RF Power Output | 10 Watt |
| Gain | 25dB |
| Input Power | 25mW |
| Antenna | Not included (N-type female connector) |
| Impedance | 50 ohm |
| Power Requirements | 24 VDC |
| Power Consumption | 4A |
| Operating Temperature | -13 ~ 158°F (-25 ~ +70°C) |
| Dimensions | 6 x 4 x 2" (152 x 102 x 51mm) |
| Weight | 1.3 lbs (600 g) |
RF-Links AMP-900TX Reviews
