Description
RF-Links ZH-1214/M Overview

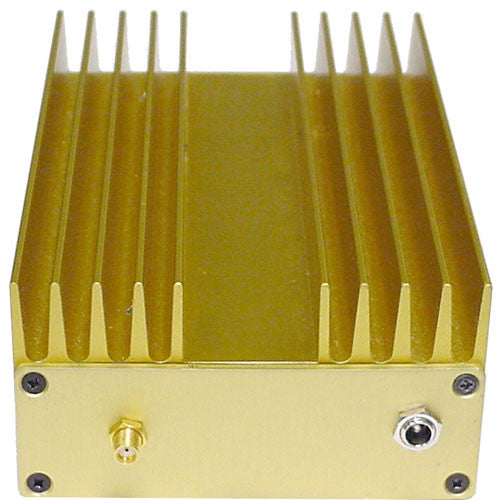

The RF-Video ZH-1214/M is a high power amplifier that can be used to boost the signal of any transmitter operating in the 1200 to 1400 MHz frequency range. Amplified signals translate into improved video and audio quality over greater wireless distances, making it a very useful tool for use with FM TV exciters, labs and experimental applications.
Note:
Antenna sold separately
For use with any 1200-1400 MHz wireless transmitter
Improved video and audio performance over greater wireless distances
Great for use with FM TV exciters
RF-Links ZH-1214/M Specs
| Frequency | 1200-1400 MHz (1.2-1.4 GHz) |
| Operating Class | Linear AB |
| RF Power Output | 10W |
| Gain | 29dB |
| Input Power | 20mW |
| Antenna | SMA (not included) |
| Impedance | 50 Ohms |
| Power Requirements | 12 VDC |
| Power Consumption | 2.8A |
| Operating Temperature | -13 x 158°F (-25 ~ +70°C) |
| Dimensions | 4 x 2 x 6" (102 x 51 x 152mm) |
| Weight | 10.6 oz (300 g) |
