Description

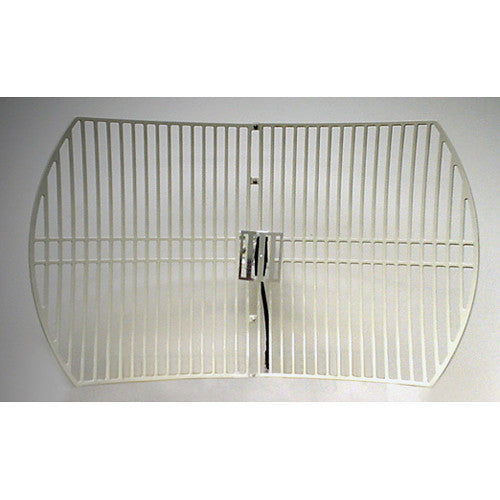

RF-Links PT-24L Overview
The PT-24L 2.4GHz High Performance LAN 24dBi Antenna from RF-Video comes equipped with the AMP-18-24M low noise amplifier for long range capabilities. When used together, the system will have 42dB of gain in the 2.4GHz. The PT-24L also includes a 1' 50 Ohm military grade cable with an N connector.
This rust-proof cast aluminum reflector grid is strong yet light with a UV powder coated grid surface for durability and aesthetics. The open-frame grid design minimizes wind loading.
2-piece UV powder coated reflector grid is strong and light
In the Box
- RF-Links PT-24L 2.4GHz High Performance LAN 24dBi Antenna
- 1' 50 Ohms Military Grade Cable
- AMP-18/24M Low-noise Amplifier
- 90-Day Limited Warranty
RF-Links PT-24L Specs
| Connector | N |
| Frequencies | 2400 - 2500MHz |
| Maximum Power | 50W |
| Impedance | 50 Ohms |
| Gain | 24 dBi |
| VSWR (Voltage Standing Wave Ratio) | <1.5.1 average |
| Beamwidth | 8° |
| Dimensions | Grid: 39.5 x 23.5" (100 x 60cm) |
| Mounting | 2" (50.8mm) diameter maximum |
| Weight | 4.8 lbs (2.18 kg) |
| Elevation Adjustment | 0 - +10° |
Packaging Info
| Package Weight | 10.15 lb |
| Box Dimensions (LxWxH) | 23.8 x 22.4 x 8.3" |
