Description

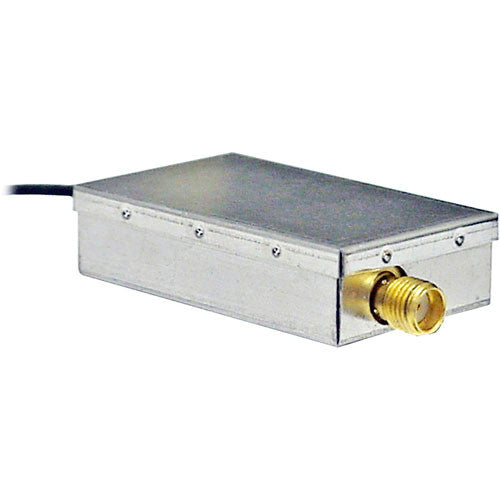

RF-Links LUV-80 Overview
The RF-Video LUV-80 is an ultra compact yet durably designed video and audio transmitter. It accepts a single NTSC or PAL camera for transmitting its signal in high resolution wirelessly up to two miles away in the air. Its small size and its ability to operate on optional battery power allow it to be placed easily virtually anywhere or carried around in a pocket, making it an excellent choice for hidden surveillance applications.
Note:
Receiver and antenna sold separately
Ultra compact design ideal for covert surveillance applications
Tested to transmit wirelessly up to 2 miles in free air using radio controlled model airplanes
Durable design with metal enclosure
Compatible with NTSC and PAL video systems
Accepts a variety of BNC type antennas
Low power consumption (80mA)
In the Box
- RF-Links LUV-80 Ultra Compact 2.4GHz 4 Channel Video and Audio Transmitter (80 mW)
- 1-Year Warranty
RF-Links LUV-80 Specs
| Signal System | NTSC/PAL |
| Operating Frequency | 2300-2500 MHz |
| Modulation | WFM |
| Channels | Selectable from 1-4 (4-8) internally |
| RF Power Output | 80 mW |
| Antenna | Not included, accepts SMA (BNC) type antenna (omni dipole recommended) |
| Impedance | 50 ohms |
| Wireless Range | Up to 2 miles (3 km) line of sight |
| Video Input | Open wire |
| Audio Input | Open wire |
| Power Requirements | 7.5-14.4 VDC (12 VDC required with battery) |
| Power Consumption | 80mA |
| Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) |
| Dimensions | 1 x 0.3 x 1.7" (25.4 x 7.62 x 43.18mm) |
| Weight | 0.5 oz (16 g) |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 5.5 x 3.9 x 1.2" |
