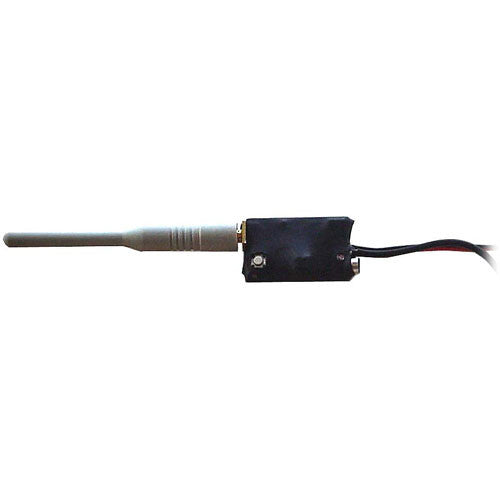

RF-Links LUV-200M Overview
The RF-Video LUV-200M is an ultra compact military grade transmitter capable of sending broadcast quality video wirelessly in the 2.4 GHz frequency range. The wireless range for this transmitter is approximately 4 miles in open air. This range can be further extended by using special high gain antennas. Its incredible small size coupled with its tolerance for extremely high and low temperature ranges make it well suited for a variety of security and non-security related monitoring applications.
Ultra compact design, suitable for many specialized applications
Airplane tested to transmit up to 4 miles in open air
Capable of withstanding extreme high and low temperature changes
Superior image quality with built-in pre-emphasis filter
Adjustable video level via on-board potentiometer
Fully synthesized with single channel PLL control
Includes 3dB gain antenna
In the Box
- RF-Links LUV-200M Ultra Compact 2.4 GHz Video Transmitter (200mW RF Power)
- Antenna
- 1-Year Warranty
RF-Links LUV-200M Specs
| Signal System | NTSC/PAL/SECAM |
| Operating Frequency | 2.4 GHz |
| Channels | N/A |
| RF Power Output | 200mW |
| Modulation | WFM |
| Antenna | Includes SMA antenna with 3db gain |
| Impedance | 50 ohms |
| Wireless Range | Up to 4 miles (6.5 km) line of sight |
| Video Input | RCA x1 |
| Audio Input | No |
| Power Requirements | 7.5-12 VDC |
| Power Consumption | 150mA |
| Operating Temperature | -4 ~ 140°F (-20 ~ +60°C) |
| Dimensions | 0.8 x 0.22 x 1.5" (20.3 x 5.6 x 38.1mm) |
| Weight | 0.21 oz (6 g) |
Packaging Info
| Package Weight | 0.8 lb |
| Box Dimensions (LxWxH) | 6 x 4 x 0.3" |
