Description

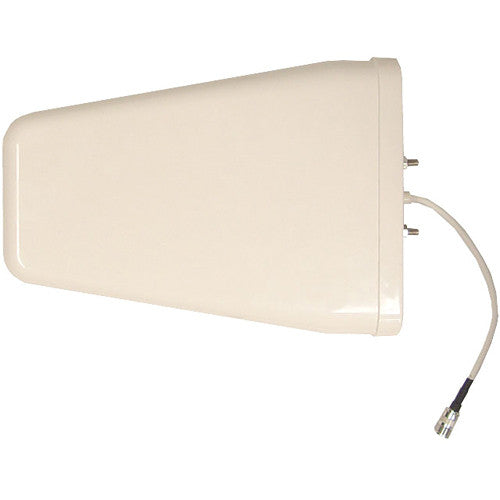

RF-Links LOG-1214 Overview
The RF-Video LOG1214 Directional Antenna (1200 to 1450 MHz) is a narrow band directional antenna designed for short and long distance transmissions. With a gain of 9 dBi, this antenna supports radio frequencies from 1200 to 1450 MHz, making it suitable for use in FM radios and TV microwave links.
Based on your application, you can mount the antenna for either vertical or horizontal polarization with the help of standard mounting brackets. Its non-corrosive aluminum alloy construction and PVC seal ensure that the electronics inside the antenna remain protected against the ingress of water and moisture.
Designed for short and long distance transmissions with a gain of 9 dBi
Narrow band transmissions from 1200 to 1450 MHz for use in FM radios and TV microwave links
Composed of 9 elements
Standard mounting brackets allow for positioning the antenna for either vertical or horizontal polarization
Durable non-corrosive aluminum alloy construction
Sealed using PVC to protect the antenna from the ingress of water or moisture
Easy and quick installation even on light poles
Lightning resistance is guaranteed by the DC ground potential of the entire antenna
RF-Links LOG-1214 Specs
| Frequency | 1200 to 1450 MHz |
| Gain | 9 dBi |
| Front to Back Ratio | Greater than 20 |
| Impedance | 50 Ohm |
| Maximum Input Power | 75 W |
| Lightning Protection | DC Short |
| VSWR | Less than 1.5 avg. |
| Polarization | Vertical and horizontal |
| Cover Material | PVC |
| Element | 9 |
| Connector | N type |
| Operating Temperature | -40 to 185°F (-40 to to 85°C) |
| Dimensions | 18 x 3.6 x 1.2" (45.7 x 9.1 x 3.04 cm) |
