| ₹ 376775.0 includes GST and import duties. | |
| B2B customers can avail ₹ 57458.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

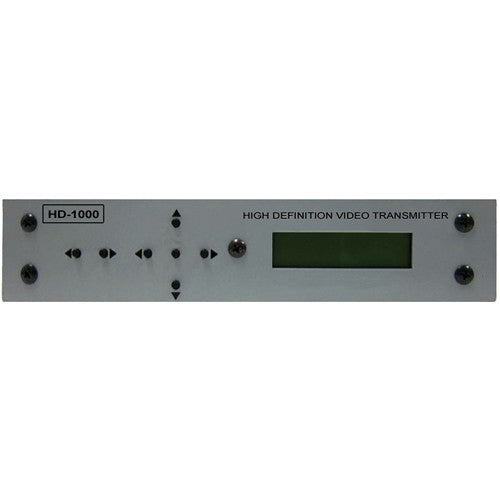

RF-Links HD-1000C Overview
The RF-Video High-Definition Audio/Video Transmitter is designed to send HD MPEG2 videos to a distance of up to 500� (152.4 m). Fully synchronized for the UHF band, this commercial grade transmitter covers a wide range of frequencies from 25 MHz to 1 GHz.
When connected to a video source via HDMI, Component Video, or a VGA output, the High Definition Audio/Video encodes the videos to HD quality. It supports 480i, 480p, 720p and 1080i resolutions, and allows transmission of high-quality videos with a gain of 100 mW.
Transmits HD MPEG2 videos to a distance of up to 500' (152.4m)
Fully synchronized for the UHF band frequencies from 25 MHz to 1 GHz
Supports high-definition video quality up to 1080i
Upscales video from HDMI, Component video or VGA sources to HD quality
Transmission gain of 100 mW
In the Box
- RF-Links High-Definition Audio/Video Transmitter
- 1-Year Warranty
RF-Links HD-1000C Specs
| Operating Frequencies | 25 to 1000 MHz |
| Video Inputs | VGA, HDMI, Component video in, Composite video in |
| DC Voltage | 12 VDC |
| RF Power | 100 mW |
| Input Resolutions | 480i, 480p, 720p, 1080i video |
| Battery Power | 12.6 V |
| Video Distortion | NA |
| Maximum Range | 1 to 2 mi (1.6 to 3.2 Km) with dir. antenna |
| Video Format | PAL, NTSC |
| Current Consumption | 1500 mA / 12 V |
| Antenna | Omni Dipole recommended |
| Antenna Connector | BNC |
| Impedance | 50 ohms |
| Video Connector | BNC connector |
| Video Impedance | Composite: 75 ohms |
| Video Level | 1 V |
| Audio Input | 300 mV |
| Temperature Range | -40 to 167°F (-40 to 75°C) |
| Output Level Accuracy | Equal to ± 1 dB |
| Modulation | QAM |
| Output Level Adjustment Range | 15 dB |
| Noise | Phase: Equal to -95 dBc @ 10 KHz offset Broadband: Equal to -75 dBc @ greater than ± 12 MHz |
| MER | Equal to/greater than 40 dB equalized |
| Frequency Response | Channel: = Equal to/less than 1 dB |
| Carrier Suppression | Greater than 40 dB |
| I/Q in Balance | Less than 1 degree |
RF-Links HD-1000C Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 369239.5 |
| 3-5 | ₹ 365471.75 |
| 5-10 | ₹ 357936.25 |
| 10+ | ₹ 350400.75 |
Bulk discount will be automatically applied during checkout based on quantity.
