Description
RF-Links DX-2 Overview

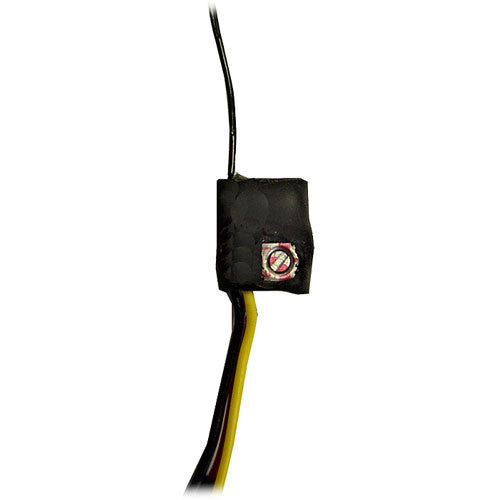

The RF-Video DX-2 is an incredibly small yet high performance transmitter capable of sending quality video wirelessly in the 2.4 GHz frequency range. Its absolutely small size plus its ability to withstand shock makes it an excellent choice for surveillance and experimental applications alike.
Ultra compact design, perfect for surveillance and experimental applications
Field tested to transmit wirelessly up to 1000 feet
Compatible with NTSC and PAL video systems
Includes hard wired antenna
Operates on optional battery power
In the Box
- RF-Links DX-2 2.4 GHz Ultra Compact Video Transmitter
- 1-Year Warranty
RF-Links DX-2 Specs
| Signal System | NTSC/PAL |
| Operating Frequency | 2.4 GHz |
| Modulation | WFM |
| Channels | Any single channel from 1- 8 |
| RF Power Output | 1mW |
| Antenna | Hard wired |
| Impedance | 50 ohms |
| Wireless Range | 1000 ft (305m) |
| Video Input | Open wire |
| Audio Input | No |
| Power Requirements | 5 VDC |
| Power Consumption | 8mA |
| Operating Temperature | 25 - 113°F (-4 ~ +45°C) |
| Dimensions | 0.3 x 0.25 x 0.3" (7.6 x 6.4 x 7.6mm) |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 6 x 4 x 1" |
