Description
RF-Links ASM-4786S Overview

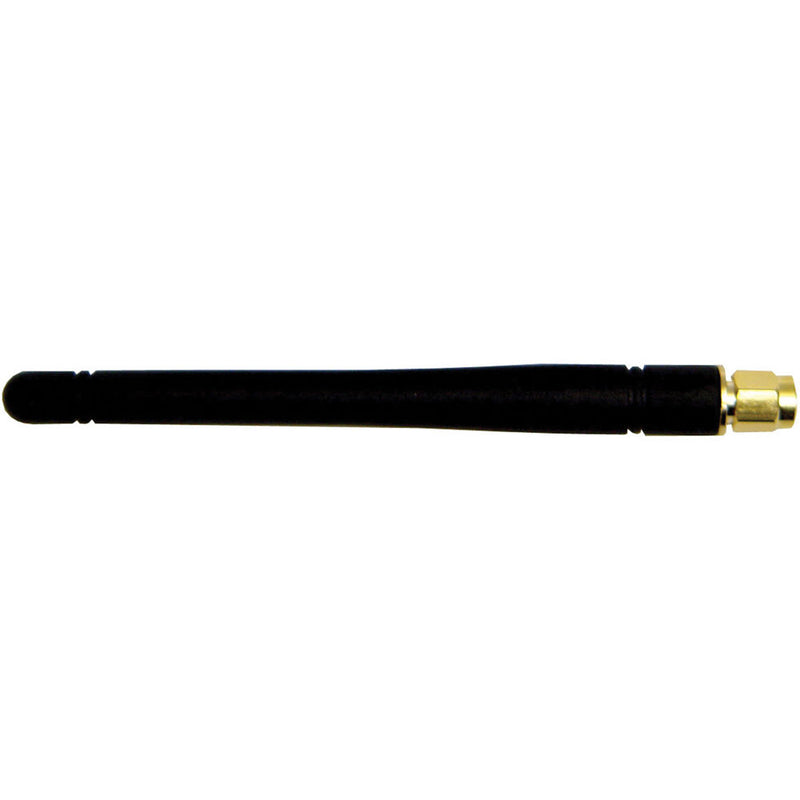

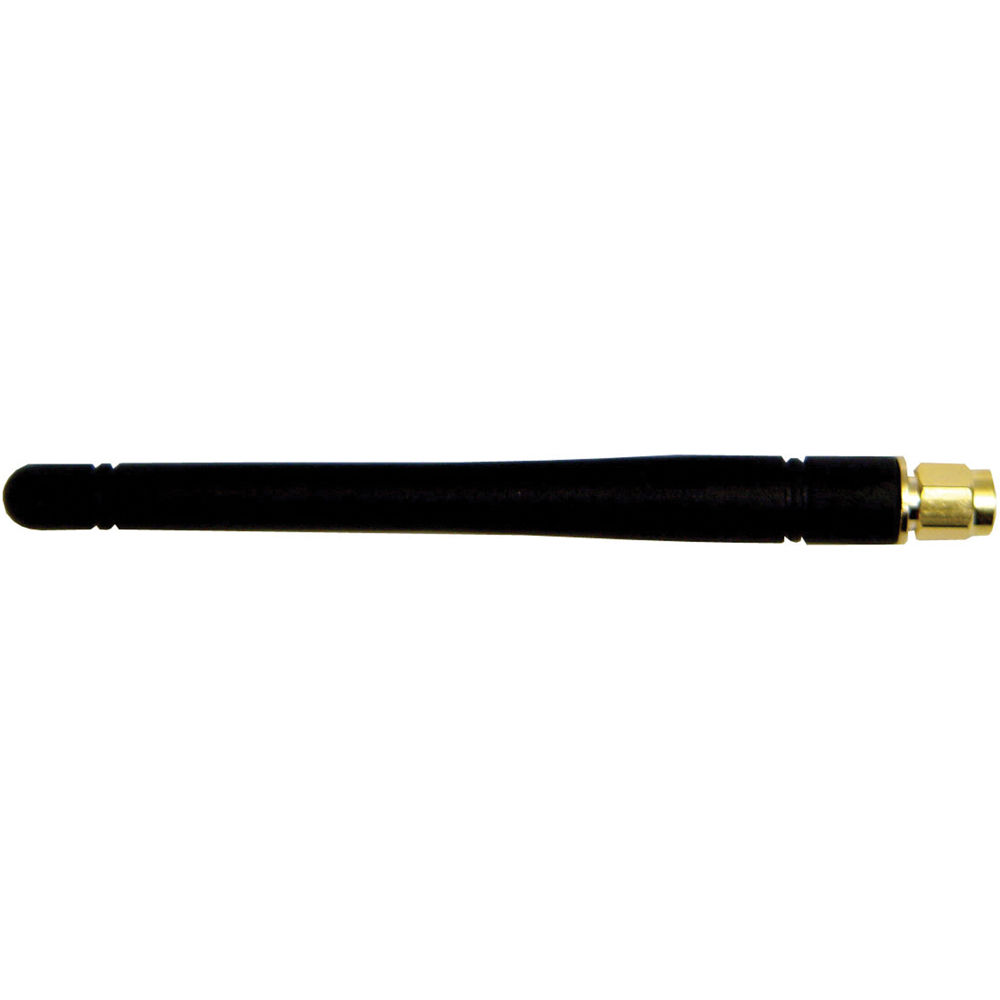

The RF-Video ASM-4786S Special Antenna (1.8 dB Gain) is designed for use with the SPX/M video transmitter and receiver series. Offering a wide frequency range (470 to 860 MHz), this antenna is ideal for applications such as television broadcasting.
Compatible with the SPX/M video transmitter and receiver series
Receives high frequencies (470 to 860 MHz)
In the Box
- RF-Links ASM-4786S Special Antenna (1.8 dB Gain)
- Limited 90-Day Manufacturer Warranty
RF-Links ASM-4786S Specs
| Operating Frequency |
470 to 860 MHz
|
| Impedance |
50 ohms
|
| Temperature Range |
?40 to 185°F (?40 to 85°C)
|
| Polarization |
Vertical
|
| Connector |
SMA
|
| Maximum Input Power |
5 W
|
| VSWR |
<1.5:1 average
|
| Gain |
1.8 dBi
|
| Length |
3" (7.62 cm)
|
| Weight |
0.70 oz (20 g)
|
