Description

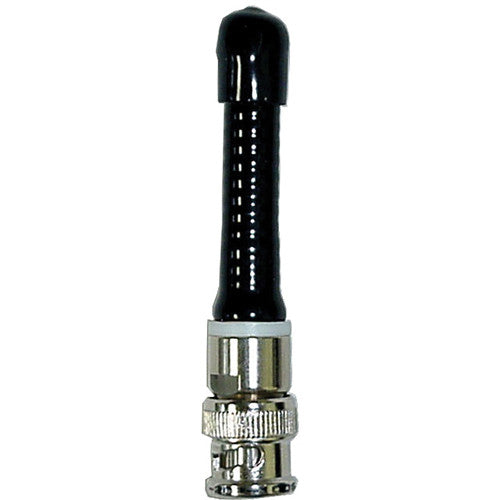

RF-Links AN-500 Overview
The AN-500 UHF Antenna (0 dB Gain) from RF Video is designed for use with the SPX/M series transmitters/receivers and for TV transmission in the UHF band. This antenna covers a frequency range of 500 to 650 MHz.
0 dB gain antenna for SPX/M series UHF transmitters/receivers
Covers a frequency range from 500 to 650 MHz
In the Box
- RF-Links AN-500 UHF Antenna (0 dB Gain)
- Limited 90-Day Manufacturer Warranty
RF-Links AN-500 Specs
| Operating Frequency |
500-650 MHz
|
| Impedance |
50 ohms
|
| Length |
2.5" (63.5 mm)
|
| Polarization |
Vertical
|
| Connector |
BNC male
|
| VSWR |
< 1.5:1, average 434 GHz
|
| Gain |
0 dBi
|
| Input Power |
20 W (maximum)
|
| Temperature Range |
-40 to 185°F (-40 to 85°C)
|
| Weight |
0.04 lb (19 g)
|
