Description
NVT Phybridge NV-EC1701PLS Overview
- 1Description
- 2NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
- 3NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
- 4NVT Phybridge 55 VDC 110W Power Supply for Phybridge PoE Products
- 5NVT Phybridge BNC to Screw Terminal Adapter

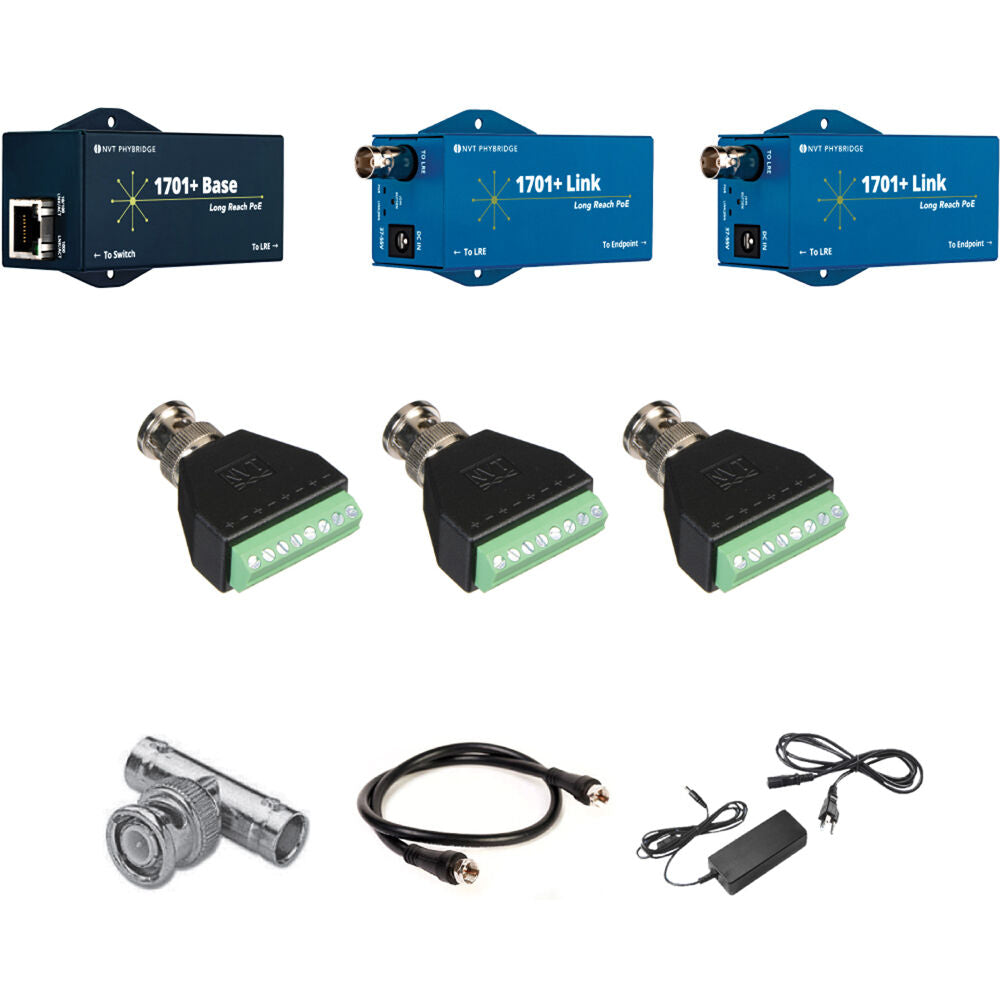

The NVT Phybridge NV-EC1701PLS-K2H 1701+ Extender Kit includes a 1701+ Base Extender, two 1701+ Link Adapters, a power supply, three BNC screw terminals, an NV-BNCT BNC T Adapter, and a 2' coax cable. This kit collectively functions as an extender solution to deliver data at rates up to 420 Mb/s and PoE+ over coax with a reach of up to 8000'.
NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
The NV-EC1701PLS-BSE 1701+ Base Extender from NVT works with the 1701+ Link adapter (available separately) to function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000'. This unit can be powered locally with an optional adapter or a PoE switch.
NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
The NV-EC1701PLS-LK 1701+ Link Adapter from NVT is an endpoint solution compatible with 1701+ Base extender (available separately). When used in conjunction with the 1701+ Base extender, the pair will function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000'. This unit can be powered locally with an optional adapter.
NVT Phybridge 55 VDC 110W Power Supply for Phybridge PoE Products
Use this 55 VDC 110W Power Supply from NVT with NVT Phybridge PoE products. It supports voltages from 100 to 240 VAC and delivers an output voltage of 55 VDC at 110W. The power supply complies with FCC, IEC, UL, and RoHS regulations and comes with a 3' power cord.
NVT Phybridge BNC to Screw Terminal Adapter
The BNC to Screw Terminal Adapter from NVT converts BNC for 2-wire terminals in IP transceivers. This adapter can be used mid-span along a wire run and has eight screw-terminal connections that support wires up to 16 AWG. It can be used in 4:1 fan-out applications, as well as for daisy-chaining and four-pair wire connections.
Note: This adapter is not intended for use with analog video transmission.
In the Box
- NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
- Limited 5-Year Warranty
- 2 x NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
- Limited 5-Year Warranty
- NVT Phybridge 55 VDC 110W Power Supply for Phybridge PoE Products
- 3' Power Cord
- Limited 5-Year Warranty
- 3 x NVT Phybridge BNC to Screw Terminal Adapter
- Limited Lifetime Warranty
- NV-BNCT BNC T Adapter
- 2' Coax Cable
- Description
- NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
- NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
- NVT Phybridge 55 VDC 110W Power Supply for Phybridge PoE Products
- NVT Phybridge BNC to Screw Terminal Adapter
NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender Specs
| Interface | Line Side: 1 x BNC Port IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Ethernet PoE Switch) |
| Data Rate | Line Side: Up to 420 Mb/s, HPAV2.1 (2 to 86 MHz) IEEE Side: 1000 Mb/s |
| Power Supply | 37 to 55 VDC 100 W on Coax 30 W Powered by 802.3af/at Switch |
| DC Input | 37-55 VDC via Optional External AC/DC Power Adapter (Available Separately) |
| Power Consumption | 2 W |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 95% (Non-Condensing at 95°F / 35°C) |
| MTBF | 20+ Years |
| Certifications | EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863 |
| Dimensions | 4.15 x 2.11 x 1.33" / 10.5 x 5.4 x 3.4 cm |
| Weight | 4.87 oz / 138 g |
| Package Weight | 0.42 lb |
| Box Dimensions (LxWxH) | 5.5 x 2.9 x 1.8" |
NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter Specs
| Interface | Line Side: 1 x BNC Port IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Endpoints) |
| Data Rate | Line Side: Up to 420 Mb/s, HPAV2.1 (2-86 MHz) IEEE Side: 1000 Mb/s |
| Power Supply | 37 to 55 VDC 50 W Locally Powered, Delivered on 4 Pairs 25 W Locally or Line Powered, Delivered on 2 Pairs |
| DC Input | 37 to 55 VDC via Optional External AC/DC Power Adapter (Available Separately) |
| Power Consumption | 2 W |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 95% (Non-Condensing at 95°F / 35°C) |
| MTBF | 20+ Years |
| Certifications | EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863 |
| Dimensions | 4.15 x 2.11 x 1.33" / 10.5 x 5.4 x 3.4 cm |
| Weight | 4.87 oz / 138 g |
| Package Weight | 0.415 lb |
| Box Dimensions (LxWxH) | 5.5 x 2.9 x 1.8" |
NVT Phybridge 55 VDC 110W Power Supply for Phybridge PoE Products Specs
| Input | 100 to 240 VAC at 50/60 Hz (1.5 A) |
| Output | 55 VDC 110 W (2 A) Regulated Class 2 (SELV) |
| Connectors | 1 x IEC380-C14 Power Input 1 x 5.5 mm DC Barrel, Power Output |
| EMC - Emissions (Class B) | FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2015 |
| EMC - Immunity | EN 55024:2010, EN 50121-4:2015 |
| Safety | IEC 60950-1:2005+A1+A2, EN 60950-1:2006+A1+A2+A11+A12 UL 60950-1 2nd Ed 2014-10-14, CAN/CSA C22.2 No. 60950-1-07 2nd Ed |
| Environment | RoHS Directive 2011/65 |
| Operating Temperature | -29 to 45.5°C / -20 to 113°F |
| Storage Temperature | -40 to 75°C / -40 to 167°F |
| Dimensions | 1.42 x 6.1 x 2.4 |
