Description

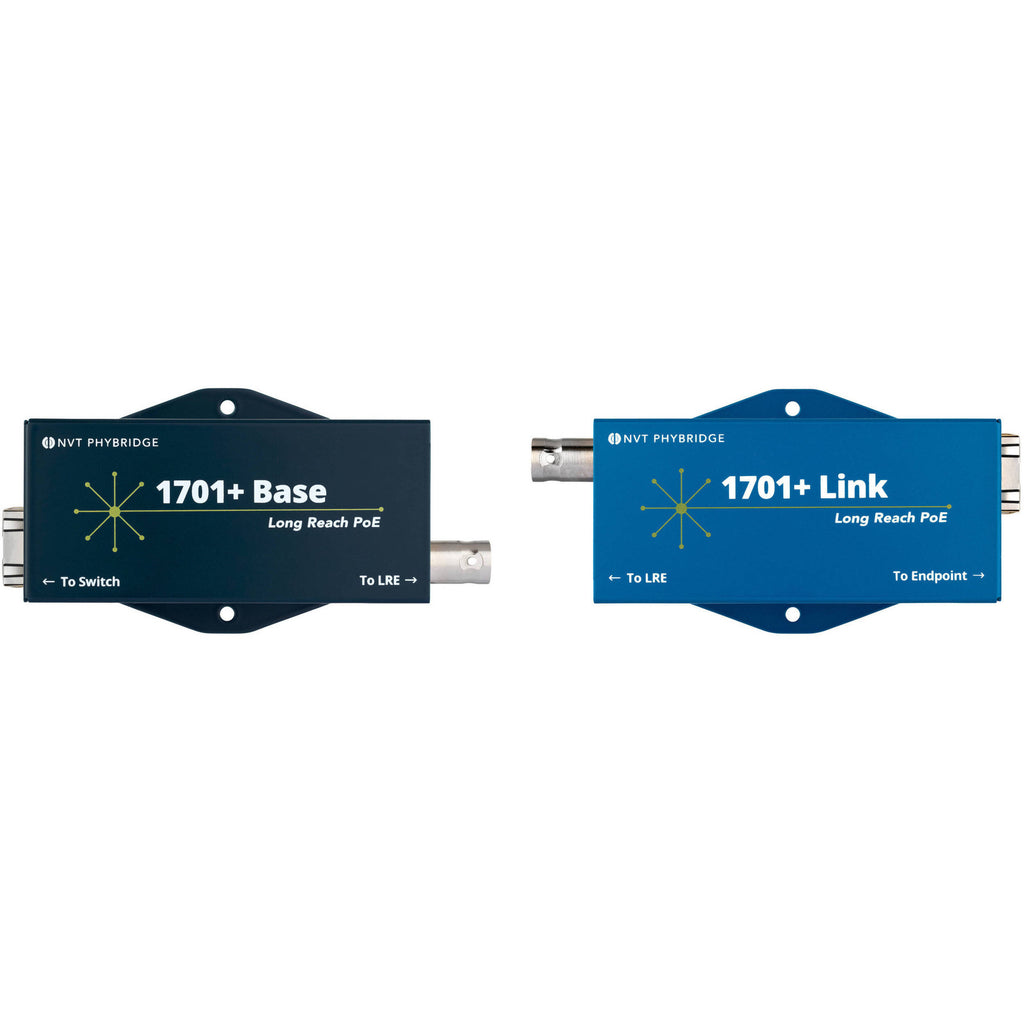

This Kit includes the NVT NV-EC1701PLS-BSE 1701 Base Extender, along with the NV-EC1701PLS-LK 1701+ link adapter. These devices work together to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000'.

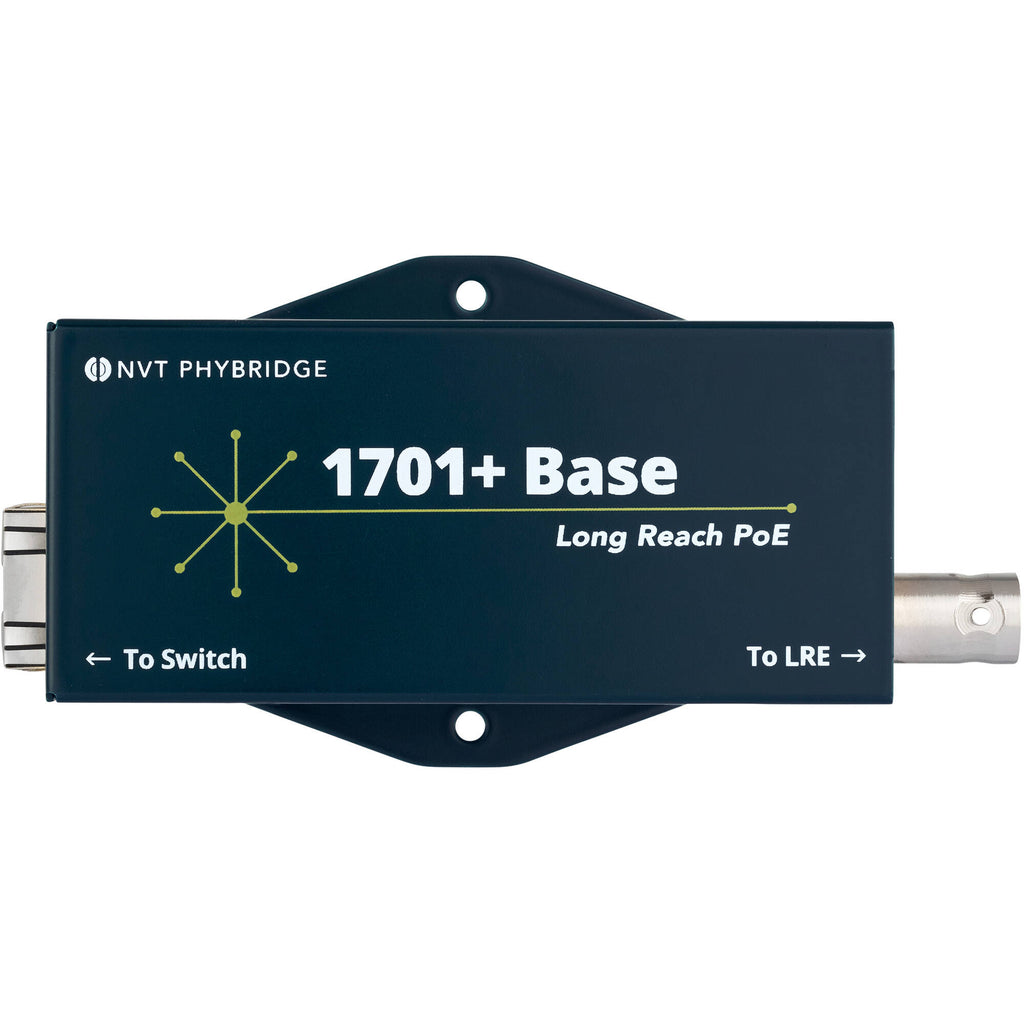

The NV-EC1701PLS-BSE 1701+ Base Extender from NVT works with the 1701+ Link adapter (available separately) to function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000'. This unit can be powered locally with an optional adapter or a PoE switch.

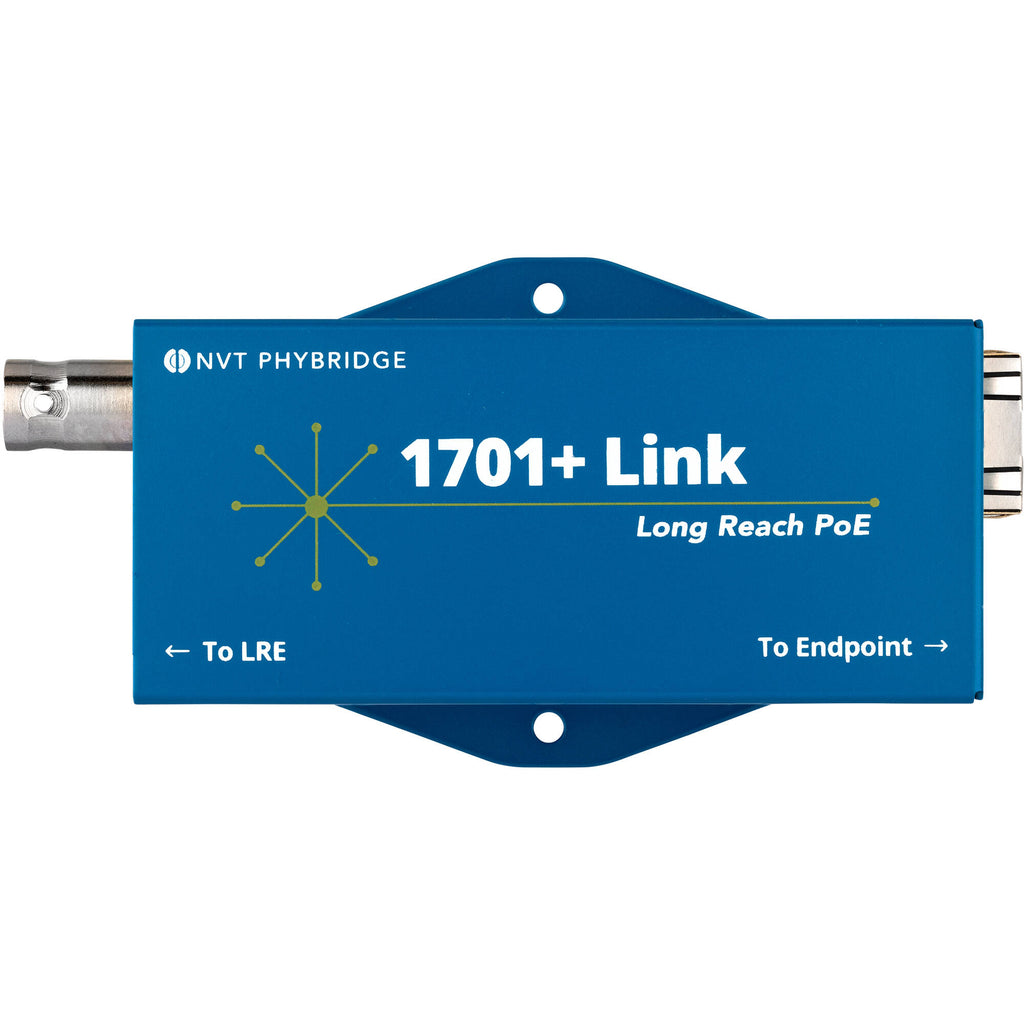

The NV-EC1701PLS-LK 1701+ Link Adapter from NVT is an endpoint solution compatible with 1701+ Base extender (available separately). When used in conjunction with the 1701+ Base extender, the pair will function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000'. This unit can be powered locally with an optional adapter.
Items Included
- NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
- Limited 5-Year Manufacturer Warranty
- NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
| Interface |
Line Side: 1 x BNC Port
IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Ethernet PoE Switch) |
| Data Rate |
Line Side: Up to 420 Mb/s, HPAV2.1 (2 to 86 MHz)
IEEE Side: 1000 Mb/s |
| Power Supply |
37 to 55 VDC
100 W on Coax 30 W Powered by 802.3af/at Switch |
| DC Input |
37-55 VDC via Optional External AC/DC Power Adapter (Available Separately)
|
| Power Consumption |
2 W
|
| Operating Temperature |
-4 to 140?F / -20 to 60?C
|
| Operating Humidity |
10 to 95% (Non-Condensing at 95?F / 35?C)
|
| MTBF |
20+ Years
|
| Certifications |
EMC
Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863 |
| Dimensions |
4.15 x 2.11 x 1.33" / 10.5 x 5.4 x 3.4 cm
|
| Weight |
4.87 oz / 138 g
|
| Package Weight |
0.42 lb
|
| Box Dimensions (LxWxH) |
5.5 x 2.9 x 1.8"
|
