Description

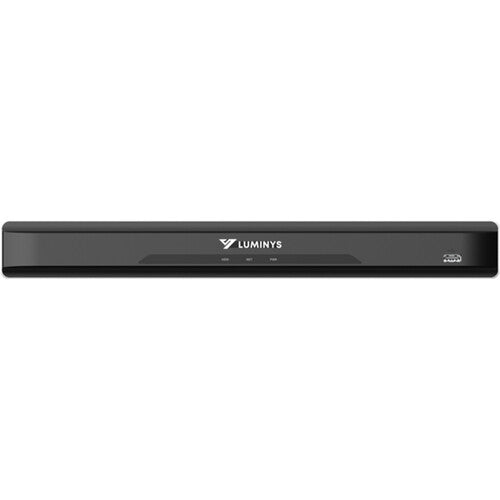

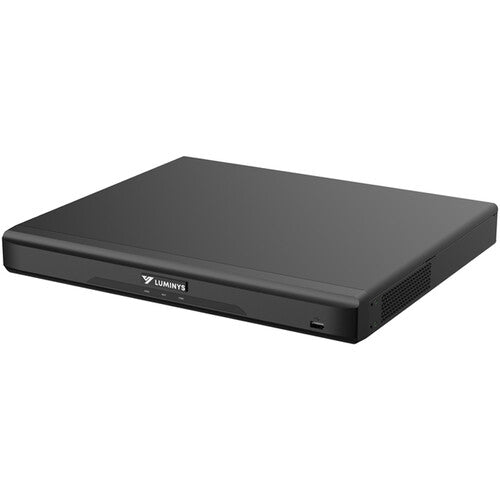

Luminys R52-16PA Overview
Record from and manage up to sixteen cameras with the R52-16PA 16-Channel 8K NVR (No HDD) from Luminys. This NVR supports IP cameras up to 32MP. It is equipped with two SATA ports that each support an HDD up to 16TB for a maximum capacity of 32TB (HDDs available separately). H.265, H.264 (including H.264H and H.264B), and MJPEG video compressions keep file sizes manageable while maintaining the best quality possible. LumiPower technology extends PoE power and data transmission by up to 3000' (ports 1 to 8).
This NVR supports two-way audio. An HDMI and a VGA interface enable video output to an external monitor.
Supported Analytics
Intelligent motion detection for (16 channels for camera, 8 channels for NVR)
Video content analytics (16 channels for camera, 4 channels for NVR, 10 rules per channel)
Face capture and recognition for 2 channels
Face picture comparison alarm from camera for 16 channels
Up to 20 face picture libraries (maximum 20,000 pictures total)
LumiSearch for 16 channels (must be supported by camera)
LumiSearch enables users to find, track, and identify targets in security footage using a reference image
Video metadata for 8 channels (analytics by camera)
License plate recognition for 8 channels (LPR camera required)
LPR features include two block list, two allow list, and a database of up to 20,000 plate numbers
Additional Features
LumiPower technology allows for long-distance PoE transmission that extend power and data delivery by up to 3000' (ports 1 to 8)
HDMI video output resolution up to 4K UHD
VGA video output resolution up to 1080p
Live view window division for up to 16 views
Auxiliary port window division for up to 16 views
Synchronous playback for up to 16 views
LumiViewer for desktop and mobile devices enable monitoring and remote management
Can be mounted on a desk or in a rack
UPC: 810161160136
Items Included
- Luminys R52-16PA 16-Channel 8K NVR (No HDD)
- Limited 7-Year Manufacturer Warranty
Not Included
- Essential Internal Hard Drives
Additional Resources
No additional resources available
Luminys R52-16PA Specs
Key Specs
| Number of Channels |
16
|
| Playback Resolution |
1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
|
| Recording Resolution |
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |

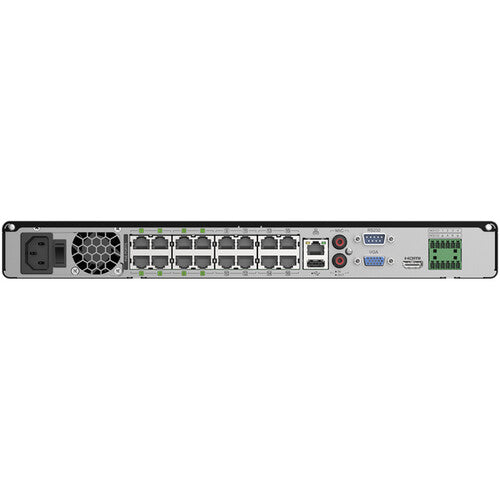

| A/V I/O |
1x RCA Audio Input
1x RCA Audio Output 1x HDMI Output 1x VGA Output |
| Communication I/O |
16x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet 1x USB-A 2.0 (Front) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x RS-232 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
No
|
| PoE Power Budget |
130 W
|
General
| Number of Channels |
16
|
| Playback Resolution |
1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
|
| Recording Resolution |
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| IP Camera Support |
16
|
| Decoding Resolution |
1 Channel:
32 MP at 30 fps 2 Channels: 32 MP at 30 fps 2 Channels: 16 MP at 30 fps 4 Channels: 16 MP at 30 fps 4 Channels: 8 MP at 30 fps 8 Channels: 8 MP at 30 fps 12 Channels: 4 MP at 30 fps 16 Channels: 4 MP at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x RCA Audio Input
1x RCA Audio Output 1x HDMI Output 1x VGA Output |
| Communication I/O |
16x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet 1x USB-A 2.0 (Front) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x RS-232 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.265, MJPEG
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
16 TB (Each Drive)
32 TB (Total) |
| Number of Bays |
2
|
Software System Requirements
| OS Compatibility |
Android/iOS
|
Notifications
| Alarm I/O |
4x Input
2x Output |
| Event Trigger |
Analytics
|
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
10 W (Without HDD)
|
| PoE Power Budget |
130 W
|
| PoE per Port |
25.5 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 93% Humidity
|
| Certifications |
FCC, NDAA
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
14.6 x 12.8 x 1.7" / 372.0 x 325.8 x 43.7 mm
|
| Weight |
5.7 lb / 2.6 kg (Without HDD)
|
Packaging Info
| Package Weight |
9.33 lb
|
| Box Dimensions (LxWxH) |
19.4 x 16.6 x 6.6"
|
