Description
Luminys K8T-16B2A4 Overview

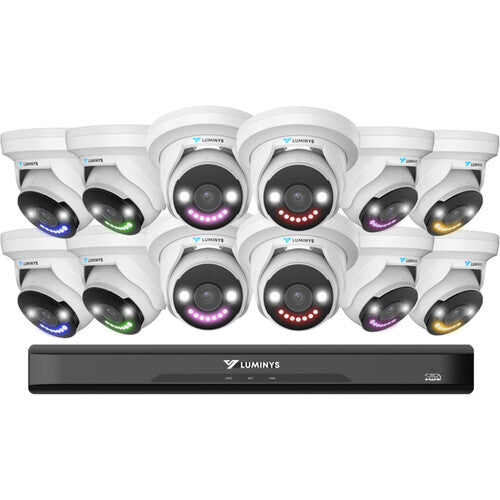

Monitor your property with the NDAA-compliant K8T-16B2A4 16-Channel UHD 4K NVR with 4TB HDD & 12 x 8MP LumiLightBand Turret Cameras Kit from Luminys. The 16-channel NVR can manage and record from up to 16 cameras. It is equipped with two HDD slots, each supporting up to 10TB of storage, for a maximum capacity of 20TB of storage (4TB preinstalled). The H.265/H.264 encoding and MJPEG video compression ensure high-quality recording and playback. Remote management is possible via the LumiViewer app for iOS and Android.
The included turret cameras capture 8MP resolution video from 2.8mm fixed lenses that have a 111? horizontal angle of view. The cameras have a night vision range up to 98', along with a white light illumination range of 98' and a built-in microphone to pick up audio. They are rated IP67 for safe outdoor use.
Additional Details for NVR
- Supports intelligent motion detection
- Smart search via target classification, pictures by channel, time, and event type
- RCA audio input and output
- ONVIF compliant
- 802.3af/at PoE standard
Additional Details for Turret Cameras
- LumiLightBand technology enables the camera to capture video day and night via IR and white LEDs with three low-light modes
- Low-night modes include covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination
- Built-in microphone
- IR cut filter for day and night switching
- CBR and VBR
- 4.9' close focus range
- Line crossing, intrusion, and intelligent motion detection supported with alarms for vehicles and humans
- Additional features include 120 dB WDR, 3D-DNR, rotation (0 to 270?), mirroring, region of interest for up to 4 zones, and privacy masking for up to 4 zones
- Supported browsers include Chrome, Firefox, and Edge
- LumiViewer for desktop and Android/iOS
UPC: 810161160846
Items Included
- Luminys K8T-16B2A4 16-Channel UHD 4K NVR with 4TB HDD & 12 x 8MP LumiLightBand Turret Cameras Kit
- R32-16PA4 16-Channel NVR
- 12 x Luminys N3T-8BA2 LumiLightBand 8MP Outdoor Network Turret Camera with Night Vision
- Mounting Hardware for Cameras
- Limited 7-Year Manufacturer Warranty
Additional Resources
Luminys K8T-16B2A4 Specs
NVR
| Video Inputs |
16
|
| Recording Resolutions |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
|
| Output Resolutions |
HDMI: UHD 4K (3840 x 2160), 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Live View / Playback |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
|
| Video Codecs |
H.265, H.264, MJPEG
|
| Decoding Capability |
Two-Channel: 8 MP at 30 fps
Eight-Channel: 1080p at 30 fps |
| Synchronous Playback |
1, 4, 8, 9, 16 Views
|
| Analytics |
Supported Analytics by Camera
Intelligent Motion Detection for 12 Channels Video Content Analytics (VCA) for 8 Channels Face Detection and License Plate Recognition for 4 Channels Smart Search by Target Classification, Pictures by Channel, Time, and Event Type |
| Number of SATA Ports |
2
|
| Installed HDD |
4 TB
|
| HDD Capacity |
20 TB (10 TB per HDD)
|
| Network |
1 x Self-Adaptive RJ45 Port (1000M)
|
| PoE Ports |
16 x Self-Adaptive RJ45 Port (100M)
|
| USB |
Front Panel: 1 x USB 2.0
Rear Panel: 1 x USB 2.0 |
| Alarm I/O |
Inputs: 4
Outputs: 2 |
| Audio |
Input: 1 x RCA Channel
Output: 1 x RCA Channel |
| Network Bandwidth |
Incoming/Recording: 160 Mb/s
Outgoing: 60 Mb/s |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
|
| Interoperability |
ONVIF, RTSP
|
| PoE Standard |
802.3af/at
|
| Client |
LumiViewer, LumiViewer Mobile App, LumiCloud (Cloud Subscription Available Separately)
|
| Certifications |
FCC, NDAA
|
| Power Supply |
100-240 VAC, 47-63 Hz, 3.5 A
|
| Power Consumption |
<10 W (Without HDD)
PoE: 115 W (Maximum Output for Single Port: 25.5 W) |
| Operating Conditions |
10 to 131?F / -10 to 55?C at 10 to 93% Humidity
|
| Dimensions (W x L x H) |
14.7 x 12.8 x 1.7" / 372 x 325.8 x 43.7 mm
|
| Weight |
5.8 lb / 2.6 kg (Without HDD)
|
Camera
| Series |
N3 Series (Entry Level)
|
| Image Sensor |
1/2.8" 8 MP Progressive Scan CMOS
|
| Maximum Resolution |
3840 x 2160
|
| Minimum Illumination |
Color: 0.008 Lux at f/1.6 (30 IRE)
B&W: 0.0008 Lux at f/1.6 (30 IRE) B&W: 0 Lux with IR Light On |
| Illuminator |
2 x White Light LEDs, 1 x IR LED, Supports LumiLightBand
|
| Illumination Distance |
IR: 98.4' / 30 m
Warm Light: 98.4' / 30 m |
| Electronic Shutter Speed |
Auto/Manual
1/100,000 to 1/3 |
| Angle Adjustment |
Horizontal: 0 to 360?
Vertical: 0 to 78? Rotation: 0 to 360? |
| S/N Ratio |
>50 dB
|
| Iris Type |
Fixed
|
| Lens Type |
Fixed
|
| Focal Length |
2.8mm
|
| Maximum Aperture |
f/1.6
|
| Angle of View |
Horizontal: 111?
Vertical: 58? Diagonal: 132? |
| Close Focus Distance |
4.9' / 1.5 m
|
| DORI Distance |
Detect: 190.9' / 58.2 m
Observe: 76.4' / 23.3 m Recognize: 38.1' / 11.6 m Identify: 19' / 5.8 m |
| Video Codecs |
Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
|
| Streams |
2
|
| Resolution |
3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, D1 (704 x 576, 704 x 480), VGA (640 x 480), CIF (352 x 288, 352 240)
|
| Maximum Frame Rate |
Main Stream: 3840 x 2160 at 20 fps
Sub Stream: D1 at 20 fps |
| Video Bit Rate |
H.265: 32 to 8192 kb/s
H.264: 12 to 8192 kb/s |
| Bit Rate Control |
CBR/VBR
|
| Day/Night |
Automatic (ICR), Color, Black and White
|
| WDR |
Wide Dynamic Range (120 dB)
|
| Noise Reduction |
3D-DNR
|
| Image Rotation |
0/90/180/270? (Supports 90/270? with 4MP Resolution and Lower)
|
| Mirror |
Mirroring Supported
|
| Privacy Masking |
4 Zones
|
| Region of Interest |
4 Zones
|
| VCA |
Line Crossing, Intrusion
|
| Intelligent Motion Detection |
Supported with Alarms for Vehicles and Humans
|
| Audio Codec |
PCM, G.711a, G.711Mu
|
| Audio Interface |
Input: Built-In Microphone
|
| Alarm Event Detection |
No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD
|
| Network Interface |
RJ45 100M
|
| Network Protocols |
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTMP, FTP, SFTP, NAS, DHCP, DNS DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x
|
| Interoperability |
ONVIF Profile G, S, and T, CGI, SDK
|
| Supported Browsers |
Chrome, Firefox, Edge
|
| Client |
LumiViewer, LumiViewer Mobile App
|
| Storage |
FTP, SFTP, NAS, microSD Card (Maximum 256 GB)
|
| Power Supply |
12 VDC, PoE (802.3af)
|
| Power Consumption |
12 VDC: 3.2 W (Normal), 8.5 W (Max)
PoE: 4.3 W (Normal), 9.8 W (Max) |
| Operating Temperature |
-40 to 140?F / -40 to 60?C
|
| Operating Humidity |
<95% RH (Non-Condensing)
|
| Storage Temperature |
-40 to 140?F / -40 to 60?C
|
| IP Rating |
IP67
|
| Housing Material |
Metal
|
| Certifications |
FCC, IC, NDAA
|
| Dimensions (Diameter x Height) |
4.8 x 4.1" / 122 x 104.7 mm
|
| Weight |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 328334.3 |
| 3-5 | ₹ 324983.95 |
| 5-10 | ₹ 318283.25 |
| 10+ | ₹ 311582.55 |
Bulk discount will be automatically applied during checkout based on quantity.
