Description

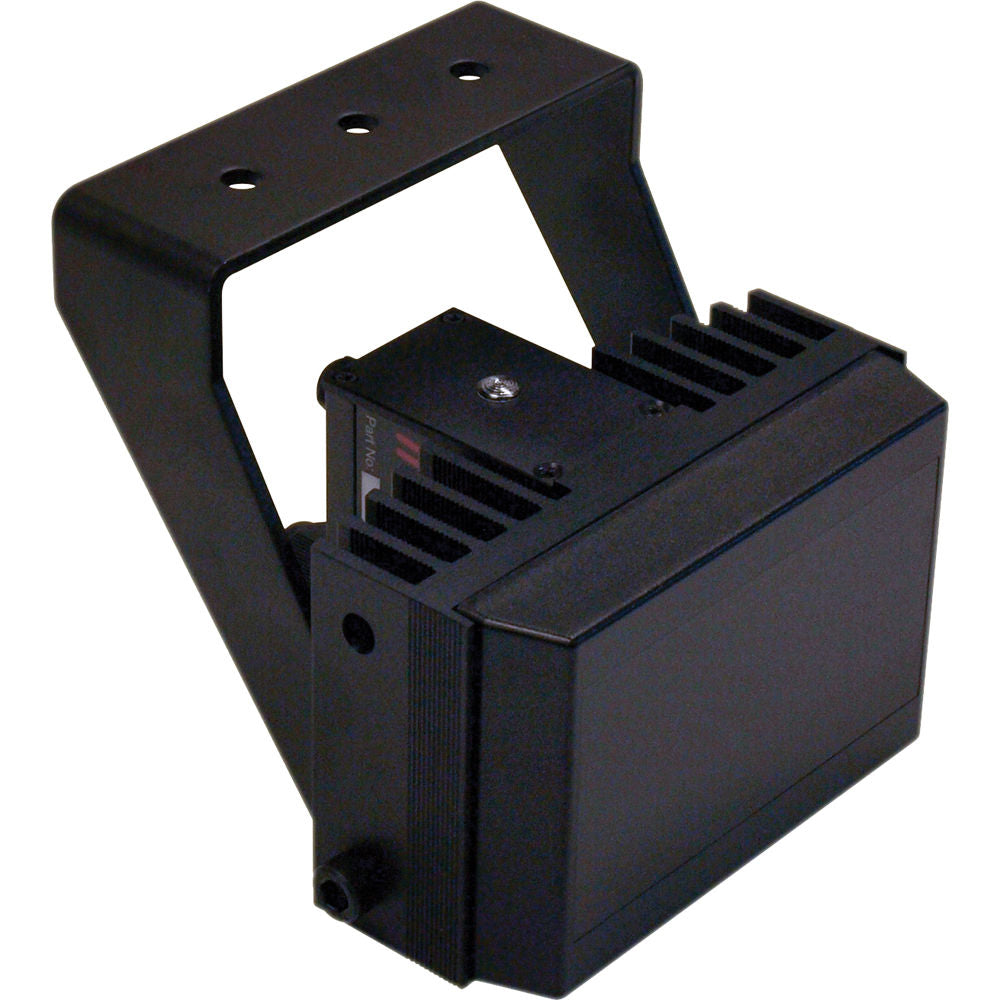

Iluminar IR148-A100-POE-2 Overview
The IR148-A100-POE Short-Range Infrared Illuminator from Iluminar is designed to provide infrared illumination to your surveillance setup, enabling you to capture clear images at night or in dark rooms. The light features four SMT LEDs that provide a 100° x 50° illumination angle and a 40' illumination range. This combination provides a 94' horizontal field of view for the total monitoring area that will be illuminated. Equipped with a built-in photocell and a telemetry input, you can manage and adjust the device with a remote control (available separately). PoE technology allows for a minimum of wires during setup, and the illuminator comes with a stainless steel wall mount. Housed in an IP67-rated weatherproof casing, the illuminator can be used outdoors, and it has a pressure equalization vent for preventing thermal expansion and pressure cycling.
In the Box
- Iluminar IR148-A100-POE 100° x 50°, 40' Short-Range Infrared Illuminator
- Limited 5-Year Warranty
Iluminar IR148-A100-POE-2 Specs
| Wavelength | 850 nm (semi-covert) Faint red glow visible on the illuminator only (no visible light) |
| Illumination Angle | 100° x 50° |
| Illumination Distance | 40' (12 m) |
| Horizontal Field-of-View | 94' (29 m) |
| Number of SMT LEDs | 4 |
| Electronics | High-efficiency surface mount high power LEDs Advanced current limited integral control circuitry |
| Front Window | Polycarbonate high transmittance protective (vandal-proof) IR filter |
| Pressure Equalization Vent | Prevents thermal expansion & pressure cycling |
| Interface Connector | Photocell following contact & remote telemetry input |
| Photocell | Adjustment via remote |
| Illumination | Adjustment via remote |
| PoE | IEEE 802.3af-compliant |
| Consumption | 12 W |
| Power Cable | IP67-rated RJ45 Cat 5e |
| Operating Temperature | -58 to 140�F (-50 to 60�C) |
| Mount | Powder-coated stainless steel wall mount Adjustable via M6 Allen key (included) |
| Construction | Aluminum extrusion |
| Certifications | Safety: EN60598:2004, EN60825-1 IP: IP67 in accordance with EN60525:1992 WEEE: Waste Electrical & Electronic Equipment European directive 202/96/EC RoHS: Restriction of Hazardous Substances European directive 202/95/EC |
| Dimensions | 2.2 x 4.3 x 3.2" / 5.5 x 11 x 8 cm |
| Weight | 1.6 lb / 0.7 kg |
