Description

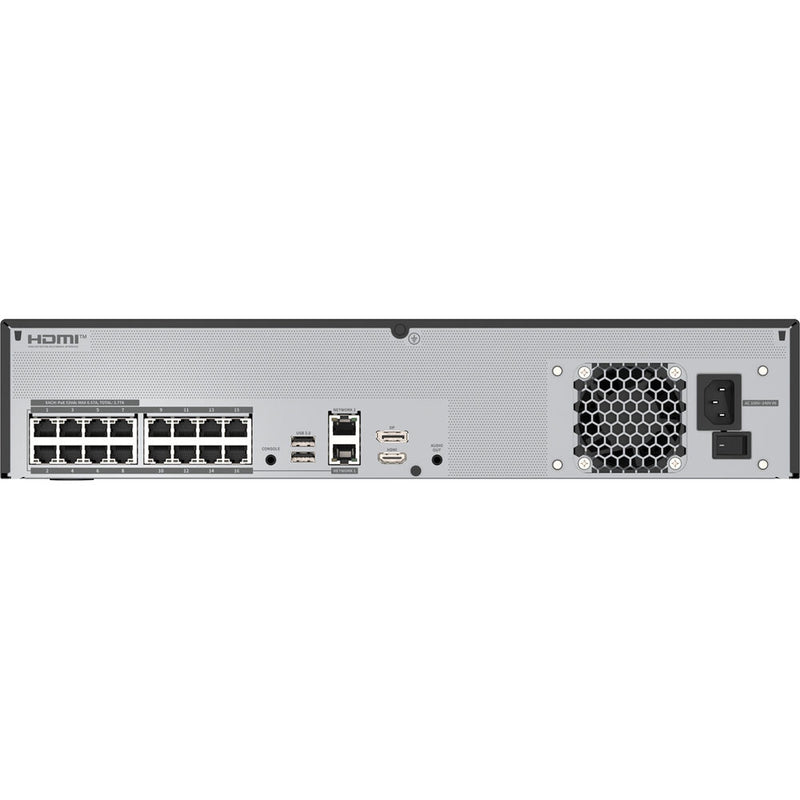

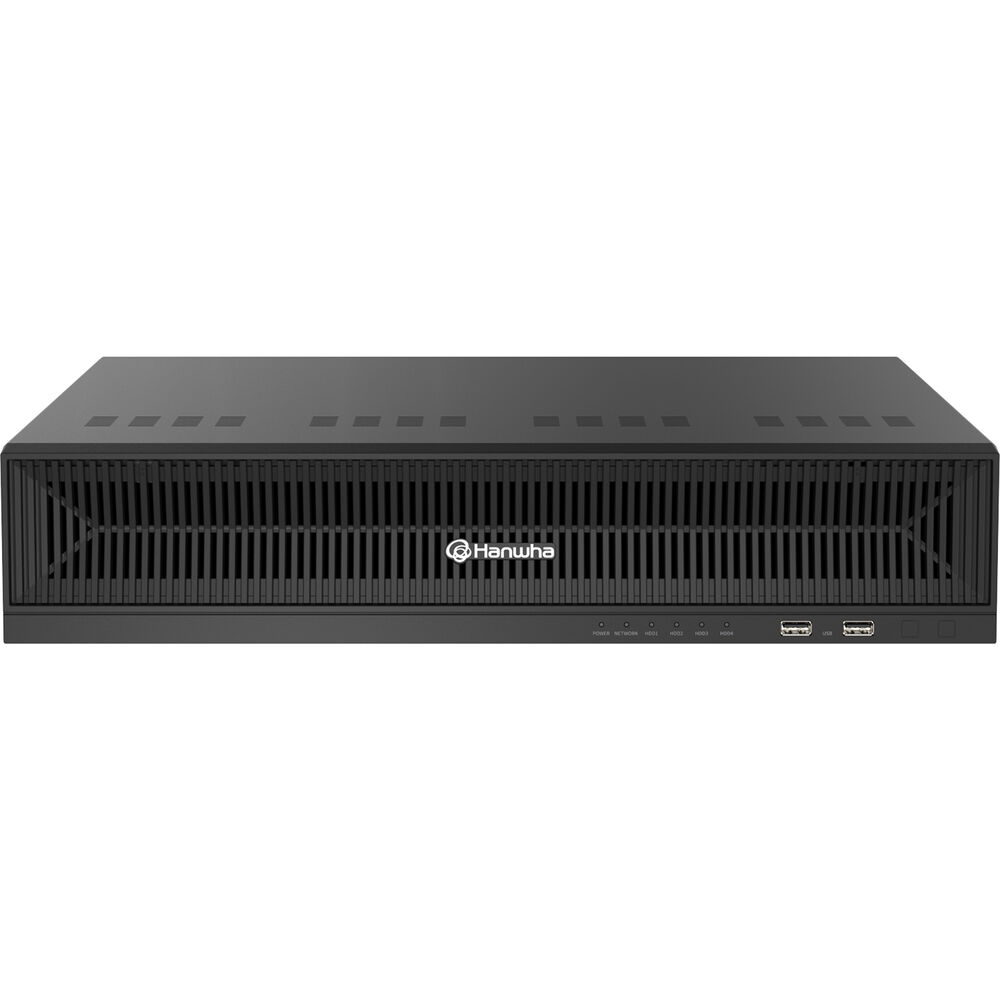

Hanwha Vision WRN-1632S Overview
Record from and manage up to 16 cameras with the WRN-1632S Wisenet WAVE PoE+ 16-Channel NVR with 12TB HDD from Hanwha Vision. This recorder supports IP cameras up to 12MP. It features four SATA ports that each support an HDD up to 10TB, for a maximum capacity of 40TB (12TB preinstalled).
This NDAA-compliant NVR is equipped with an audio output. An HDMI and a DisplayPort interface enable video output to an external monitor.
Four Wisenet WAVE Professional recording licenses included
Supports WAVE client and mobile/cloud sync
Supports AI metadata
HDMI and DisplayPort monitor outputs enable configuration and basic monitoring
Items Included
- Hanwha Vision WRN-1632S Wisenet WAVE PoE+ 16-Channel NVR with 12TB HDD
- USB Mouse
- Rack Mount Brackets
Additional Resources
Hanwha Vision WRN-1632S Specs
Key Specs
| Number of Channels |
16
|
| Playback Resolution |
DisplayPort, HDMI:
|
| Recording Resolution |
12 MP
|
| PTZ Support |
No
|
| Throughput |
250 Mb/s (Recording)
|
| A/V I/O |
1x HDMI
1x DisplayPort |
| Communication I/O |
2x USB-A 2.0
2x USB-A 3.0 / 3.1/3.2 Gen 1 16x RJ45 10/100 Mb/s Ethernet PoE+ 2x RJ45 Gigabit Ethernet |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
12 TB
|
| PoE Power Budget |
200 W
|
General
| Number of Channels |
16
|
| Playback Resolution |
DisplayPort, HDMI:
|
| Recording Resolution |
12 MP
|
| PTZ Support |
No
|
| Throughput |
250 Mb/s (Recording)
|
| IP Camera Support |
16
|
| 2-Way Audio |
No
|
Connectivity
| A/V I/O |
1x HDMI
1x DisplayPort |
| Communication I/O |
2x USB-A 2.0
2x USB-A 3.0 / 3.1/3.2 Gen 1 16x RJ45 10/100 Mb/s Ethernet PoE+ 2x RJ45 Gigabit Ethernet |
| Audio I/O |
1x Output
|
| System Connection |
4x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Computing
| Installed Operating System |
Ubuntu 22.04 LTS
|
| CPU |
Quad-Core:
(4 Cores) |
| Memory |
8 GB DDR4
|
| Maximum Memory Capacity |
32 GB
|
System
| Installed Drive |
12 TB
|
| Max Capacity Supported |
40 TB (Total)
10 TB (Each Drive) |
| Number of Bays |
4x Internal
|
Software System Requirements
| OS Compatibility |
Ubuntu
|
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
340 W
|
| Power Supply Type |
External
|
| PoE Power Budget |
200 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 85% Humidity
|
| Certifications |
FCC, cUL, CE, EAC, NDAA
|
| LED Indicators |
Yes
|
| Material of Construction |
Metal
|
| Dimensions (W x D x H) |
17.3 x 16.9 x 3.5" / 440.0 x 428.4 x 89.8 mm
|
| Weight |
12.26 lb / 5.56 kg
|
