Description

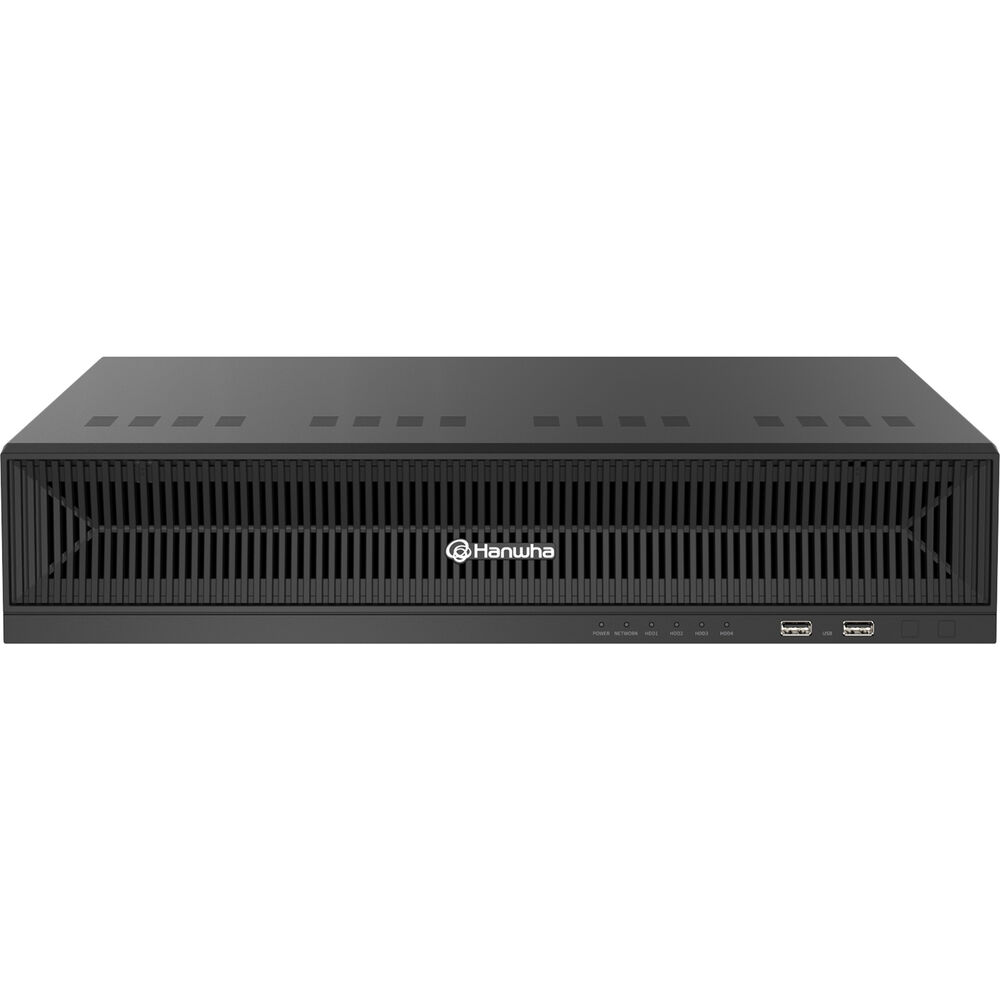

Hanwha Vision WRN-1632 Overview
Record from and manage up to 32 cameras with the WRN-1632 Wisenet WAVE 32-Channel NVR with 4TB HDD from Hanwha Vision. This recorder supports IP cameras up to 12MP. It features four SATA ports that each support an HDD up to 10TB, for a maximum capacity of 40TB (4TB preinstalled).
This NDAA-compliant NVR is equipped with an audio output. An HDMI and a DisplayPort interface enable video output to an external monitor.
Four Wisenet WAVE Professional recording licenses included
Supports up to 32 channels with an external PoE switch (available seperately)
Supports WAVE client and mobile/cloud sync
Supports AI metadata

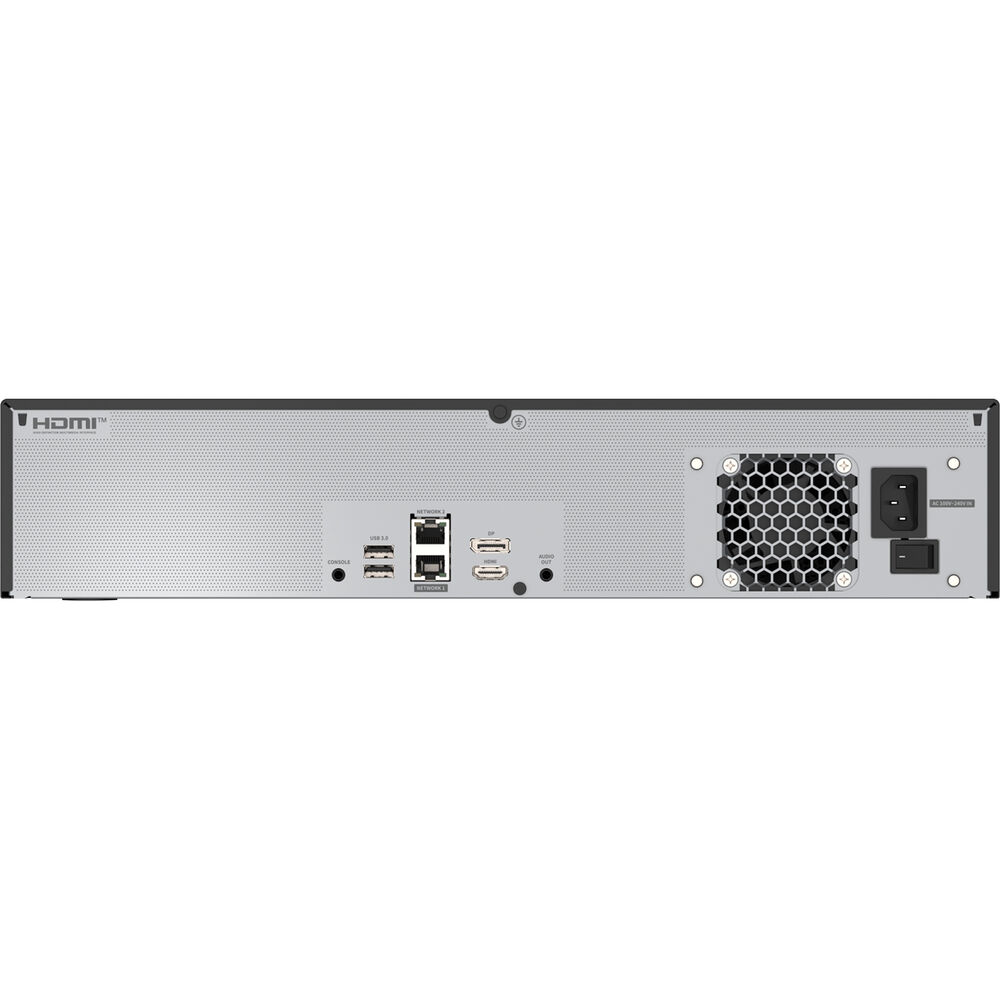

HDMI and DisplayPort monitor outputs enable configuration and basic monitoring
Items Included
- Hanwha Vision WRN-1632 Wisenet WAVE 32-Channel NVR with 4TB HDD
- USB Mouse
- Rack Mount Brackets
Additional Resources
Hanwha Vision WRN-1632 Specs
Key Specs
| Number of Channels |
32
|
| Playback Resolution |
DisplayPort, HDMI:
|
| Recording Resolution |
12 MP
|
| PTZ Support |
No
|
| Throughput |
250 Mb/s (Recording)
|
| A/V I/O |
1x HDMI
1x DisplayPort |
| Communication I/O |
2x USB-A 2.0
2x USB-A 3.0 / 3.1/3.2 Gen 1 2x RJ45 Gigabit Ethernet |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
4 TB
|
| PoE Power Budget |
200 W
|
General
| Number of Channels |
32
|
| Playback Resolution |
DisplayPort, HDMI:
|
| Recording Resolution |
12 MP
|
| PTZ Support |
No
|
| Throughput |
250 Mb/s (Recording)
|
| IP Camera Support |
32
|
| 2-Way Audio |
No
|
Connectivity
| A/V I/O |
1x HDMI
1x DisplayPort |
| Communication I/O |
2x USB-A 2.0
2x USB-A 3.0 / 3.1/3.2 Gen 1 2x RJ45 Gigabit Ethernet |
| Audio I/O |
1x Output
|
| System Connection |
4x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Computing
| Installed Operating System |
Ubuntu 22.04 LTS
|
| CPU |
Quad-Core:
(4 Cores) |
| Memory |
8 GB DDR4
|
| Maximum Memory Capacity |
32 GB
|
System
| Installed Drive |
4 TB
|
| Max Capacity Supported |
40 TB (Total)
10 TB (Each Drive) |
| Number of Bays |
4x Internal
|
Software System Requirements
| OS Compatibility |
Ubuntu
|
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
340 W
|
| Power Supply Type |
External
|
| PoE Power Budget |
200 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 85% Humidity
|
| Certifications |
FCC, cUL, CE, EAC, NDAA
|
| LED Indicators |
Yes
|
| Material of Construction |
Metal
|
| Dimensions (W x D x H) |
17.3 x 16.9 x 3.5" / 440.0 x 428.4 x 89.8 mm
|
| Weight |
12.26 lb / 5.56 kg
|
