Description

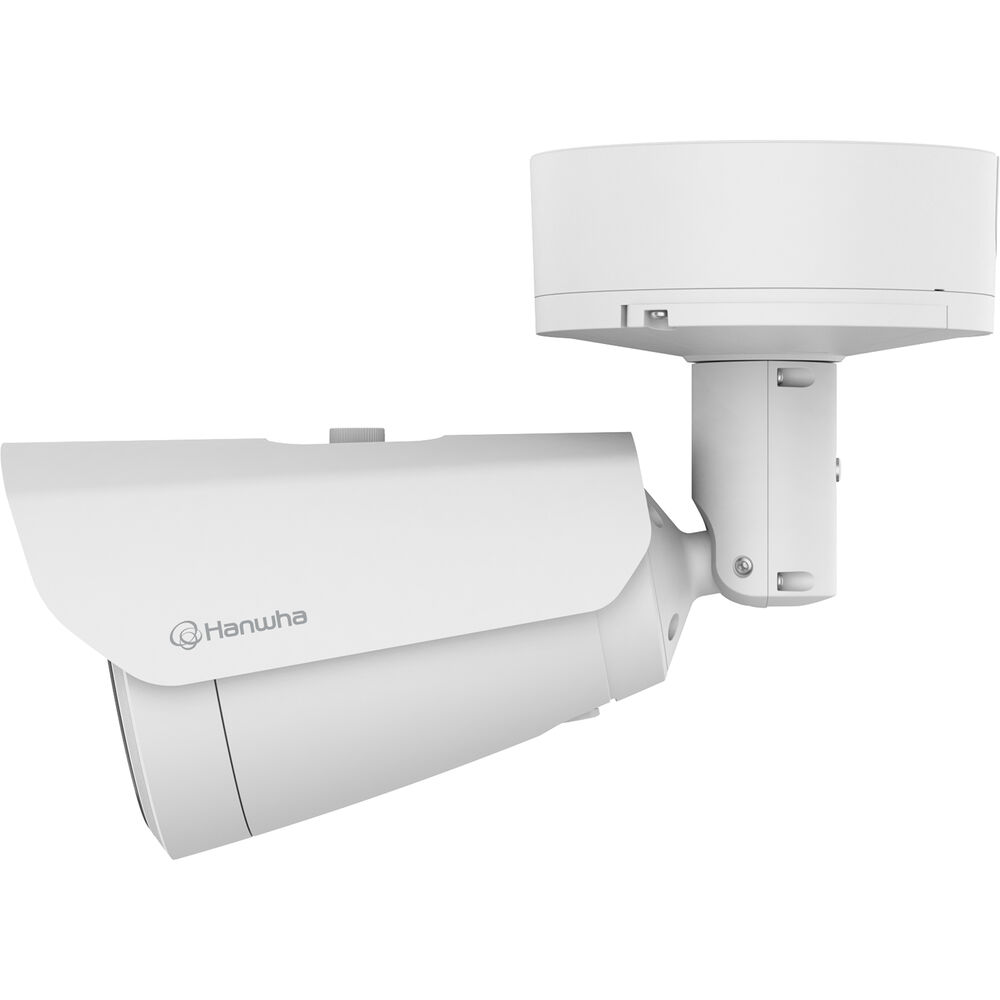

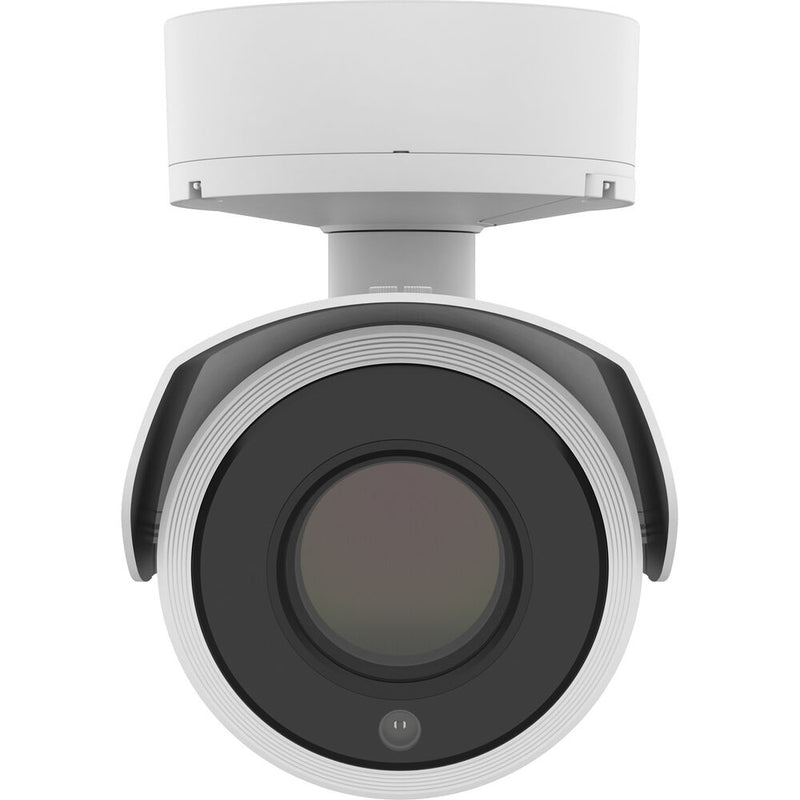

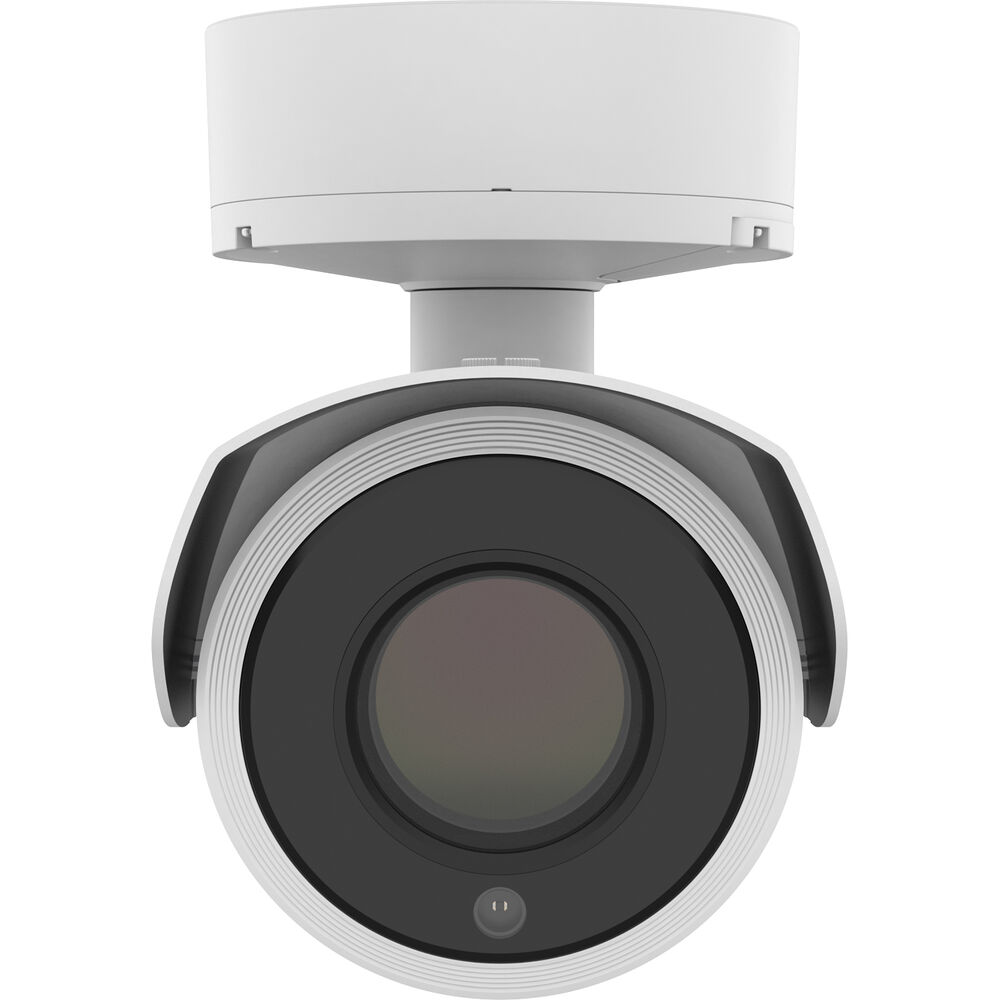

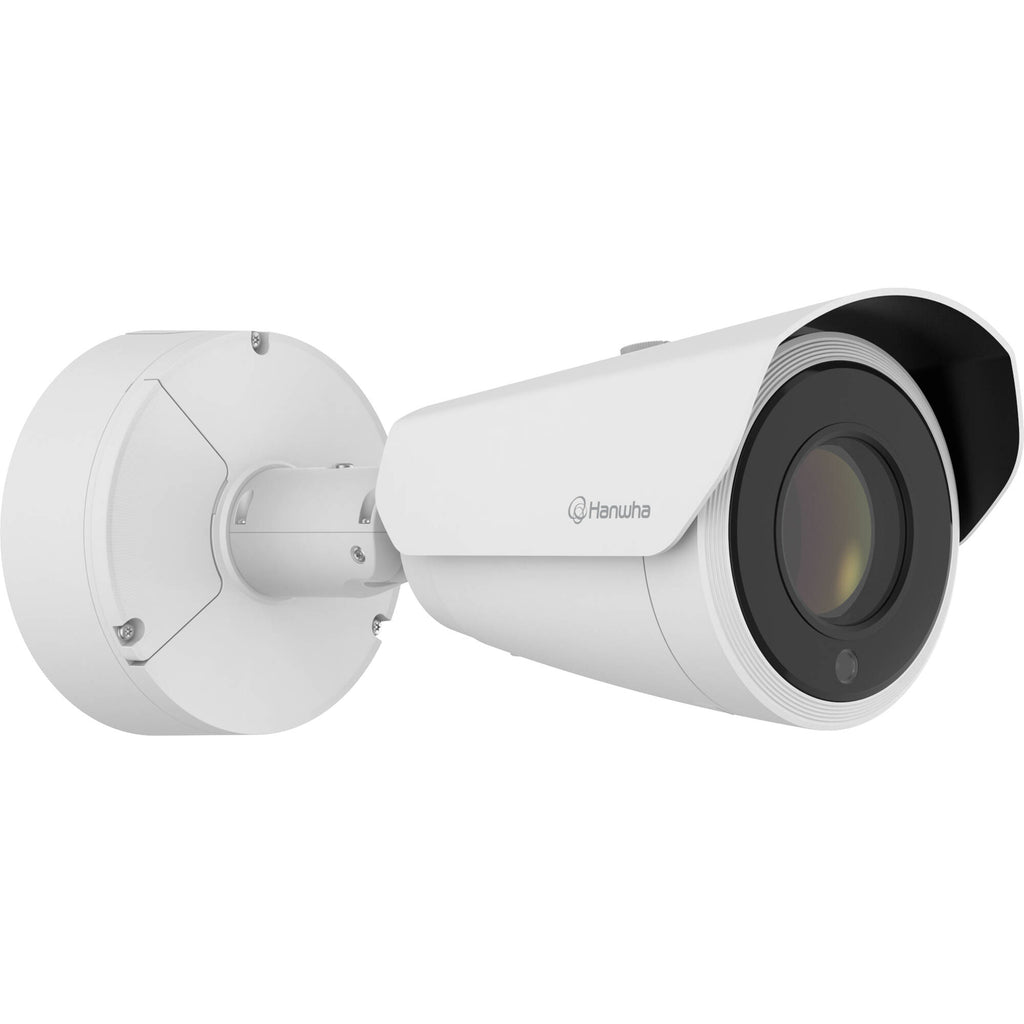

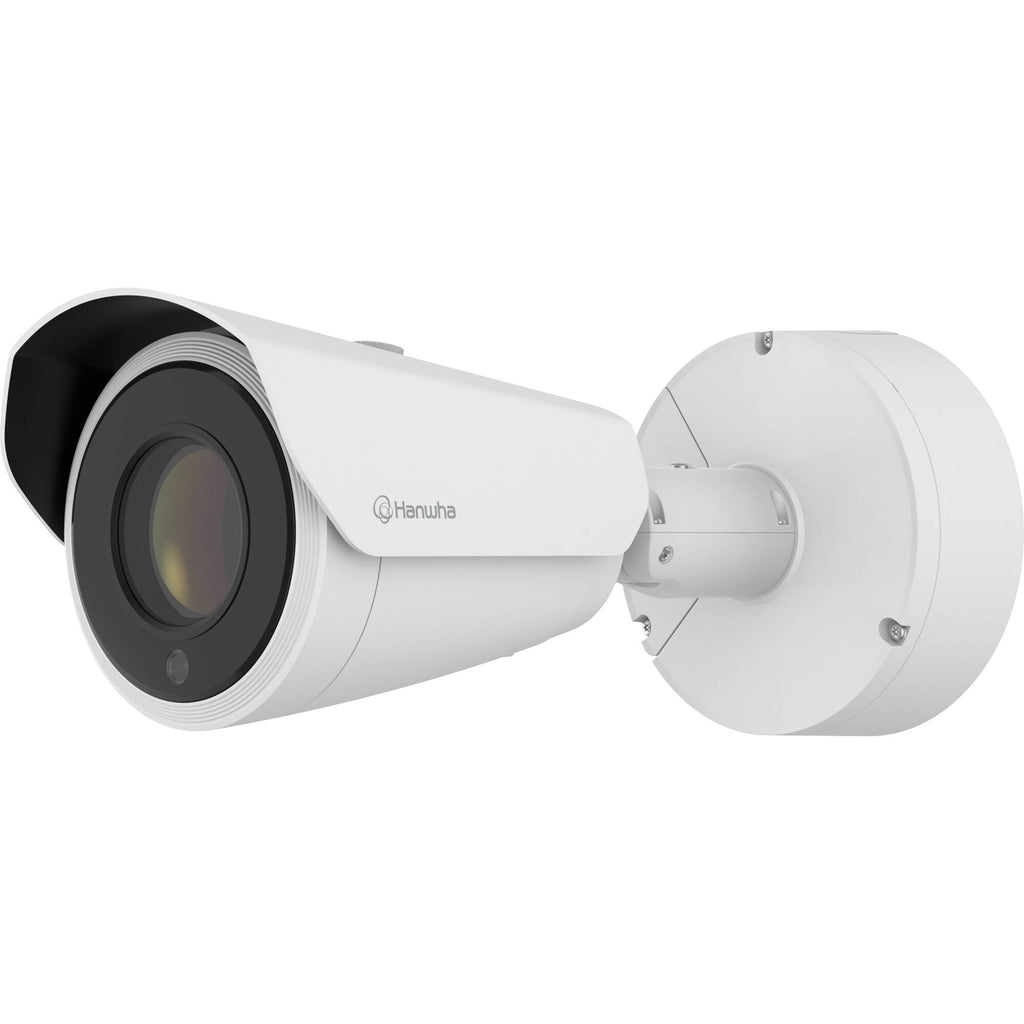

Hanwha Vision PNO-A9311RLP Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
6.91 to 214.7mm
|
| Field of View |
Horizontal: 60.92 to 2.2°
Diagonal: 69.18 to 2.52° Vertical: 35.26 to 1.24° |
| Output Formats |
Micro-USB:
3840 x 2160 at 30 fps |
| Video I/O |
1x Micro-USB 2.0 Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| IR Cut Filter |
No
|
| Day/Night |
Yes
|
| DORI Coverage |
With mmIntegrated Lens:
Detect: 428.4 to 13,122' / 130.6 to 3999.6 m With mmIntegrated Lens: Observe: 171.4 to 5,249' / 52.2 to 1599.9 m With mmIntegrated Lens: Recognize: 85.7 to 2,625' / 26.1 to 800.1 m With mmIntegrated Lens: Identify: 42.8 to 1,312' / 13.0 to 399.9 m |
Exposure Control
| Shutter Speed |
1/12000 to 1/5 Second
|
| Automatic Gain Control |
Yes
|
| Minimum Illumination |
0.05 Lux at 1/30 Shutter Speed (Color)
0.0075 Lux at 1/30 Shutter Speed (Black and White) |
Lens
| Focal Length |
6.91 to 214.7mm
|
| Optical Zoom Ratio |
31x
|
| Field of View |
Horizontal: 60.92 to 2.2°
Diagonal: 69.18 to 2.52° Vertical: 35.26 to 1.24° |
| Maximum Aperture |
f/1.36 to 4.6
|
Video
| Output Formats |
Micro-USB:
3840 x 2160 at 30 fps |
| Multi-View Streaming |
Yes, 6 Streams
|
Networking
| Security |
Anonymous Authentication, IP Address Filtering, Lockout
|
| Supported Protocols |
ARP, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SRTP, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video I/O |
1x Micro-USB 2.0 Output
|
| Audio I/O |
1x Block Line Input
1x Block Line Output |
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726
|
| Built-In Microphone |
No
|
| Memory |
4 GB RAM / 1024 MB Flash
|
| External Storage Options |
Local PC, NAS
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
2 / 2
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x DC
|
| Power Consumption |
12 VDC 25.5 W
|
Environmental
| Operating Conditions |
-14 to 131°F / -25 to 55°C up to 95% Humidity
|
| Storage Conditions |
-58 to 140°F / -50 to 60°C up to 90% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
General
| Material of Construction |
Aluminum
|
| Certifications |
CE, CISPR 22, EN 55032 Class A, EN 50130-4,, EN 61000-3-2, FCC, IEC/EN 62262 IK10, UL 62368-1
|
| Illumination |
850 nm
|
| Supported Languages |
Czech
English French German Greek Hungarian Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese |
| Dimensions (W x H x D) |
14.12 x 6.3 x 5.36" / 35.86 x 16 x 13.61 cm
|
| Weight |
7.05 lb / 3.20 kg (Body Only)
|
Packaging Info
| Package Weight |
8.92 lb
|
| Box Dimensions (LxWxH) |
19 x 9.5 x 8.9"
|
