Description

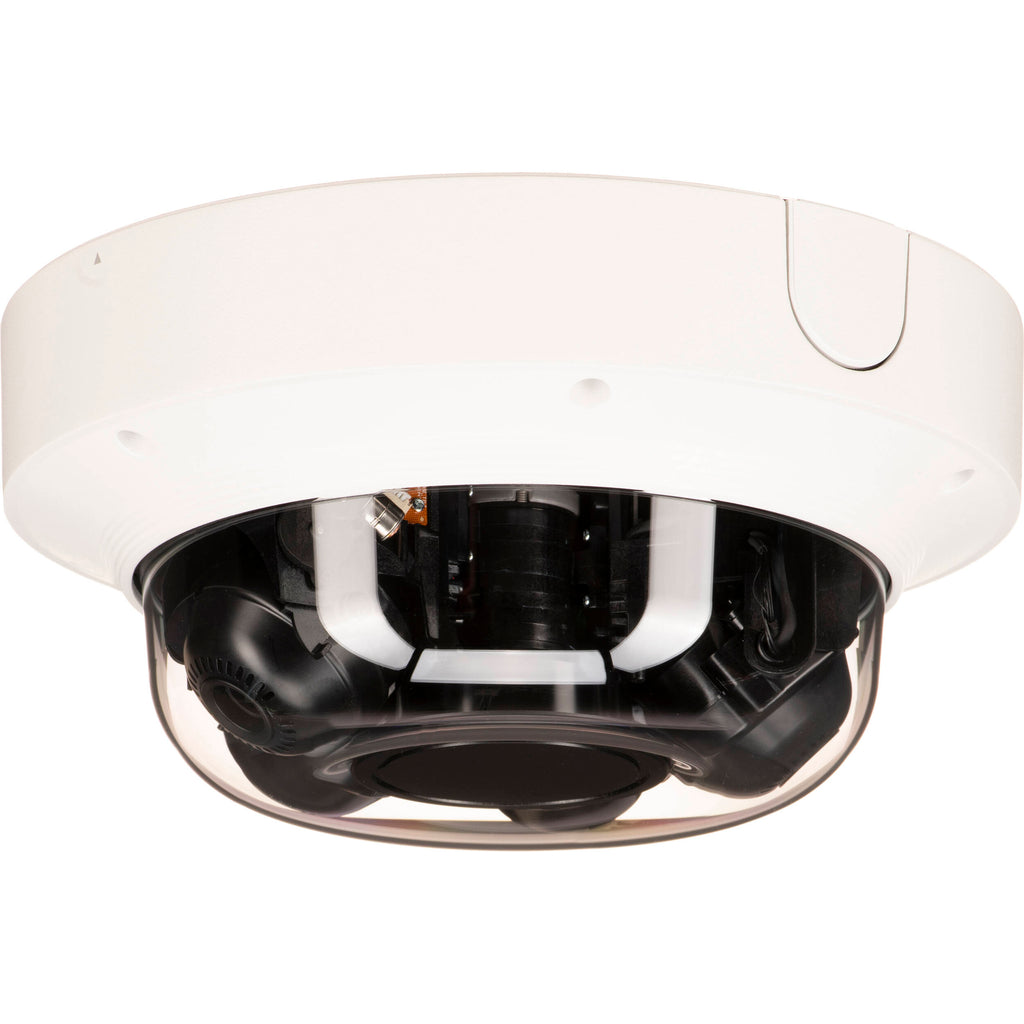

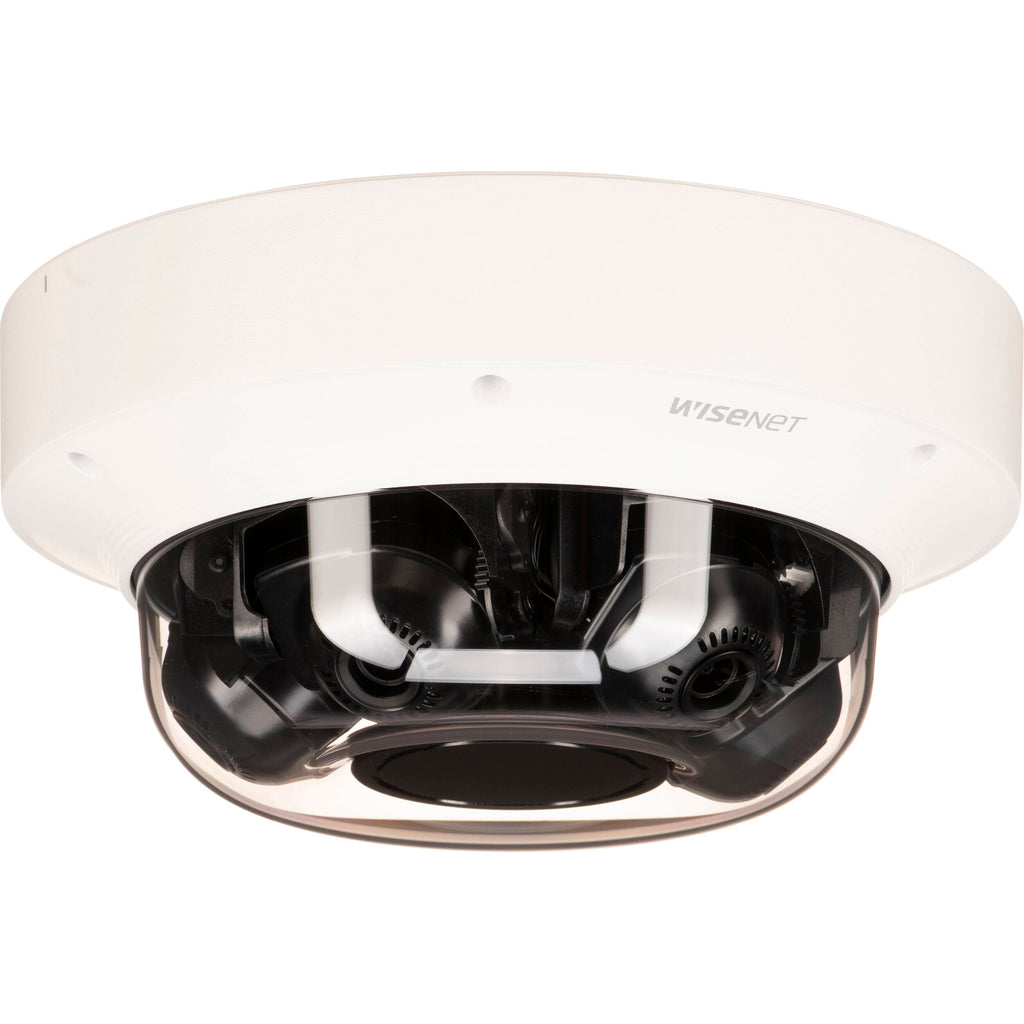

Hanwha Techwin PNM-9084QZ1 Overview
Monitor an indoor or outdoor area with the white WiseNet P Series PNM-9084QZ1 8MP 4-Sensor PTRZ Network Dome Camera from Hanwha Techwin. This unit uses four 1/2.8" 2MP CMOS sensors to capture 1920 x 1080 resolution video per sensor at 60 fps, for a total resolution of 8MP. Four 3-6mm motorized varifocal lenses deliver a 107 to 56.3° horizontal field of view. The camera features 360° panning, a 0 to 73° tilt range, a 0 to 90° rotation range, and 2x optical zoom.
Two-way audio is possible thanks to an audio input and output. Each sensor is equipped with a memory card slot that accepts microSD/SDHC/SDXC cards up to 256GB for a total storage up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles S and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
Hanwha Techwin PNM-9084QZ1 Specs
| Sensor | 4 x 2 MP 1/2.8" CMOS |
| Focal Length | 3 to 6mm |
| Maximum Aperture | f/2.2 to 3.1 |
| Zoom | Optical: 2x |
| Lens Field of View | Horizontal: 107 to 56.3° Vertical: 57 to 31.5° Diagonal: 126 to 64.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.04 Lux B&W: 0.004 Lux |
| Shutter Speed | 1/12,000 to 2 Seconds |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726 |
| Pan/Tilt | Programmed Pan: 360° (0 to 360°) Programmed Tilt: 73° (0 to 73°) |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Application Programming Interface (API) | ONVIF Profiles S & T, SUNAPI (HTTP API), Wisenet Open Platform |
| Analytics | Defocus Detection, Directional Detection, Face Detection, Fog Detection, Motion Detection (8 Polygonal Zones), Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual Line, Audio Detection |
| OS Compatibility | Android iOS *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Memory | 5 GB RAM / 1280 MB Flash |
| Media/Memory Card Slot | Per Sensor: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| Power Source | PoE 802.3bt (60 W) |
| Power Consumption | 33 W |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Inputs/Outputs | 1 x RJ45 |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Material of Construction | Aluminum |
| Dimensions | ø: 9.9 x H: 4.6" / ø: 251.0 x H: 116.5 mm |
| Weight | 6.6 lb / 3 kg |
| Package Weight | 9.075 lb |
| Box Dimensions (LxWxH) | 12.9 x 12.7 x 7.5" |
