Description
Digital Watchdog DWC-PVX20WATX Overview

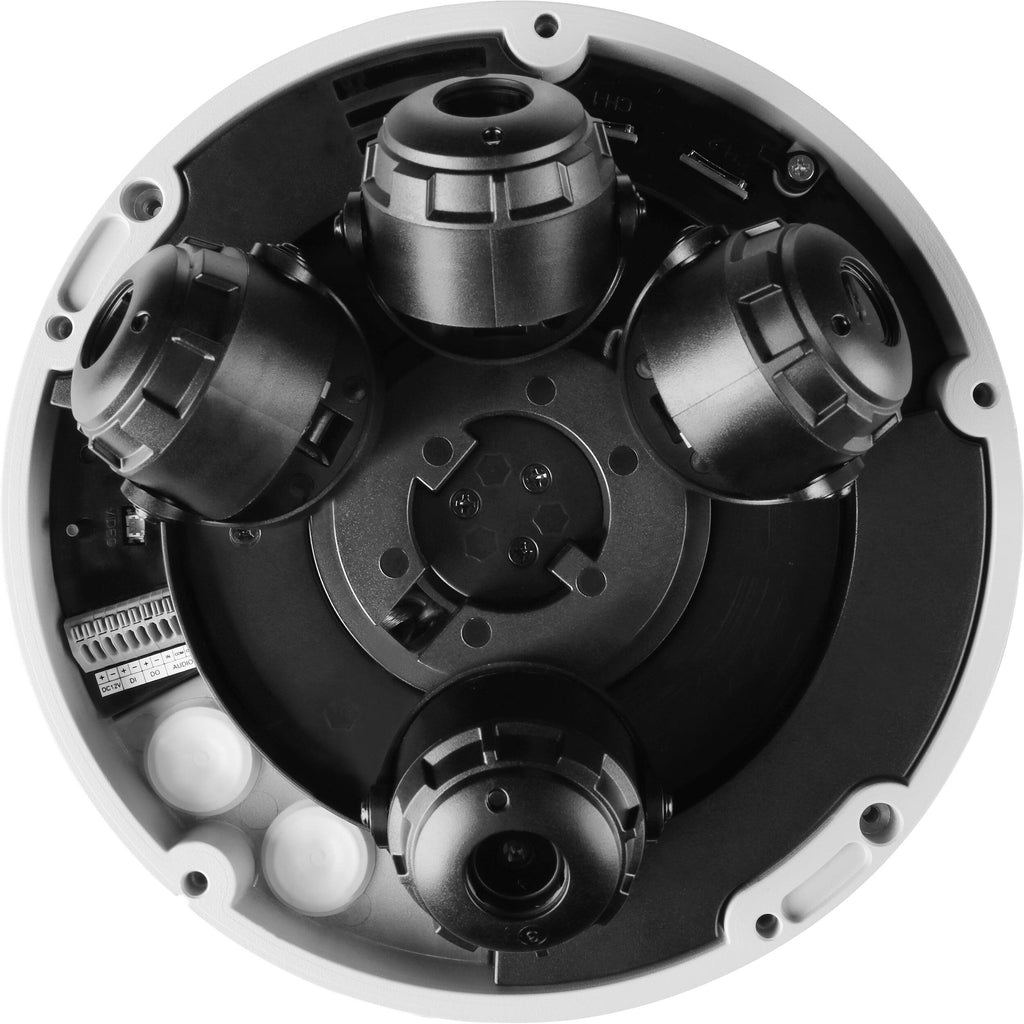

Securely monitor your surroundings with the MEGApix Flex DWC-PVX20WATX 20MP Four-Sensor Outdoor Network Dome Camera from Digital Watchdog. This unit uses four 1/2.8" CMOS image sensors to capture 2592 x 1944 resolution video per sensor at 30 fps for a combined resolution of 20MP. The camera's four 2.8-8mm motorized varifocal lenses each deliver a 93 to 51? horizontal angle of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
ONVIF compliance enables interoperability with a wide range of surveillance devices. The camera is housed in an IP67- and IK10-rated aluminum enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
- Intelligent Video analytics (IVA) include intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, and logical rules
- IVA engine detects and classifies people and vehicles in real time
- Flexible sensor positioning on a magnetic base
- 3-axis gimbal for wide range lens positioning
- 180/360? flexible panoramic views
- Star-Light Plus enables the camera to record color video in low-light conditions
- IR cut filter enables day and night functionality
- 3D-DNR
- Auto white balance
- True WDR
- Mirror and flip orientation
- Built-in web server for camera management from any browser
- Compatible with Internet Explorer, Chrome, Firefox, and Safari
- DW Spectrum VMS
UPC: 840407902923
Items Included
- Digital Watchdog MEGApix Flex DWC-PVX20WATX 20MP Four-Sensor Outdoor Network Dome Camera
- Star Wrench (T-20)
- Test Monitor Cable
- PoE Injector
- RJ45 Installation Tool
- Moisture Absorber
- Grommet
- 7 x Spare Dome Screws
- Limited 5-Year Manufacturer Warranty
Additional Resources
Digital Watchdog DWC-PVX20WATX Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.8 to 8mm
|
| Field of View |
Horizontal: 93 to 51?
Vertical: 68 to 39? |
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45 (12VDC)
|
Imaging
| Number of Lenses |
4
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5.14 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/32000 to 1/15 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux (Color)
0.1 Lux (Black and White) |
Lens
| Focal Length |
2.8 to 8mm
|
| Max Optical Zoom |
2.8x
|
| Field of View |
Horizontal: 93 to 51?
Vertical: 68 to 39? |
| Maximum Aperture |
f/1.6
|
Video
| Supported Protocols |
Video Streaming Protocol
SSL/TLS/DDNS/APIPA/FTP/ICMP/SMTP/NTP/SNMP v1/v2c/v3 (MIB-II)/DNS/UDP/HTTP/DHCP/TCP/IPv4/v6/RTP/RTSP |
| Max IP Streaming |
H.264, H.265 via RJ45
2592 x 1944 up to 30.00 fps MJPEG via RJ45 1920 x 1080 up to 30.00 fps |
| Multi-View Streaming |
Yes: 2 Streams
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended]
|
| Video I/O |
1x BNC (Composite) Output
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
No
|
System Integration
| Analytics |
Abandoned Object, Camera Sabotage/Tampering, Directional Detection, Entering/Exiting, Intrusion Detection, Loitering, Object Detection, Object Removal, Stopped Vehicle, Tailgating, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Autofocus, Zoom
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x RJ45 (12VDC)
|
| Power Consumption |
PoE: 31 W
12 VDC 28 W |
Environmental
| Operating Conditions |
-4 to 122?F / -20 to 50?C at 10 to 90% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Materials |
Aluminum, Polycarbonate
|
| Certifications |
CE, FCC, NDAA, RoHS, TAA, UL
|
| OS Compatibility |
Computer: Windows / macOS / Linux
Mobile: Android/iOS |
| Dimensions (W x H x D) |
8.3 x 3.6 x 8.3" / 210 x 91.8 x 210 mm
|
| Weight |
4.2 lb / 1.9 kg (Body Only)
|
Packaging Info
| Package Weight |
7.03 lb
|
| Box Dimensions (LxWxH) |
10.9 x 10.1 x 10.1"
|
