Description

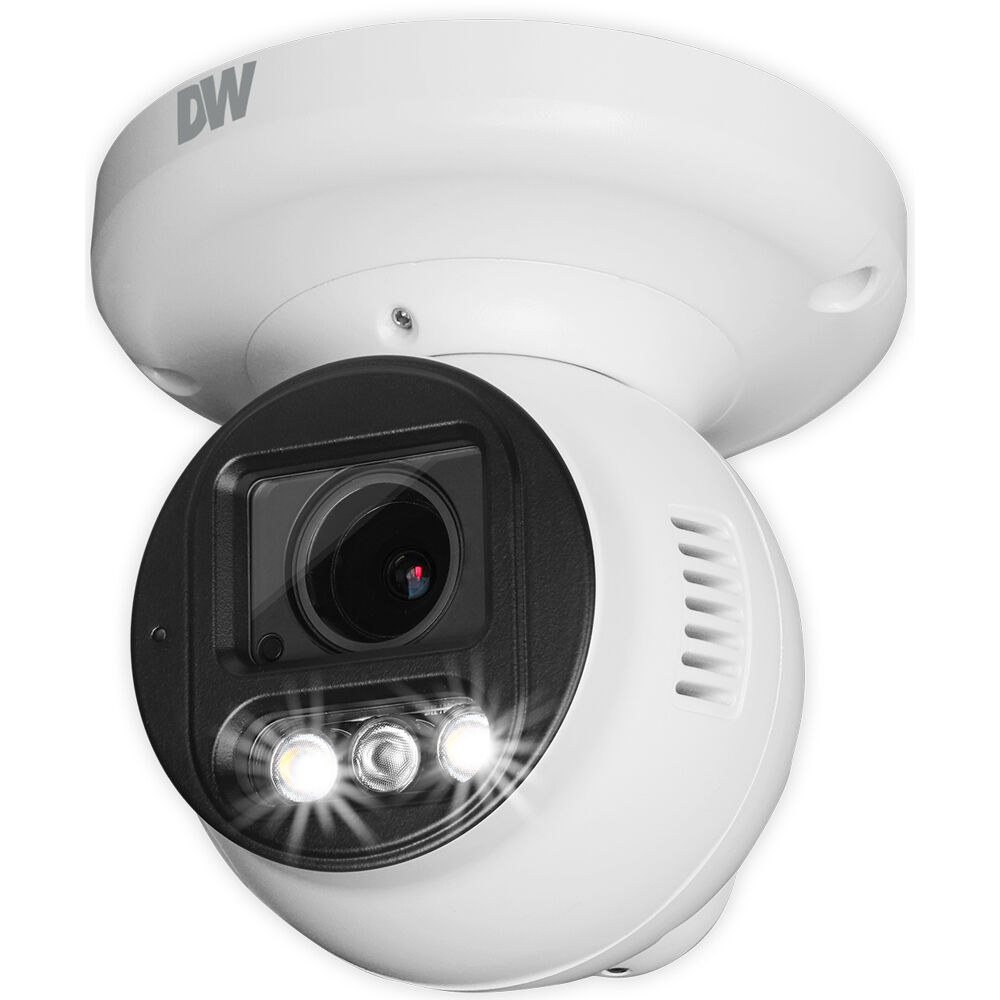

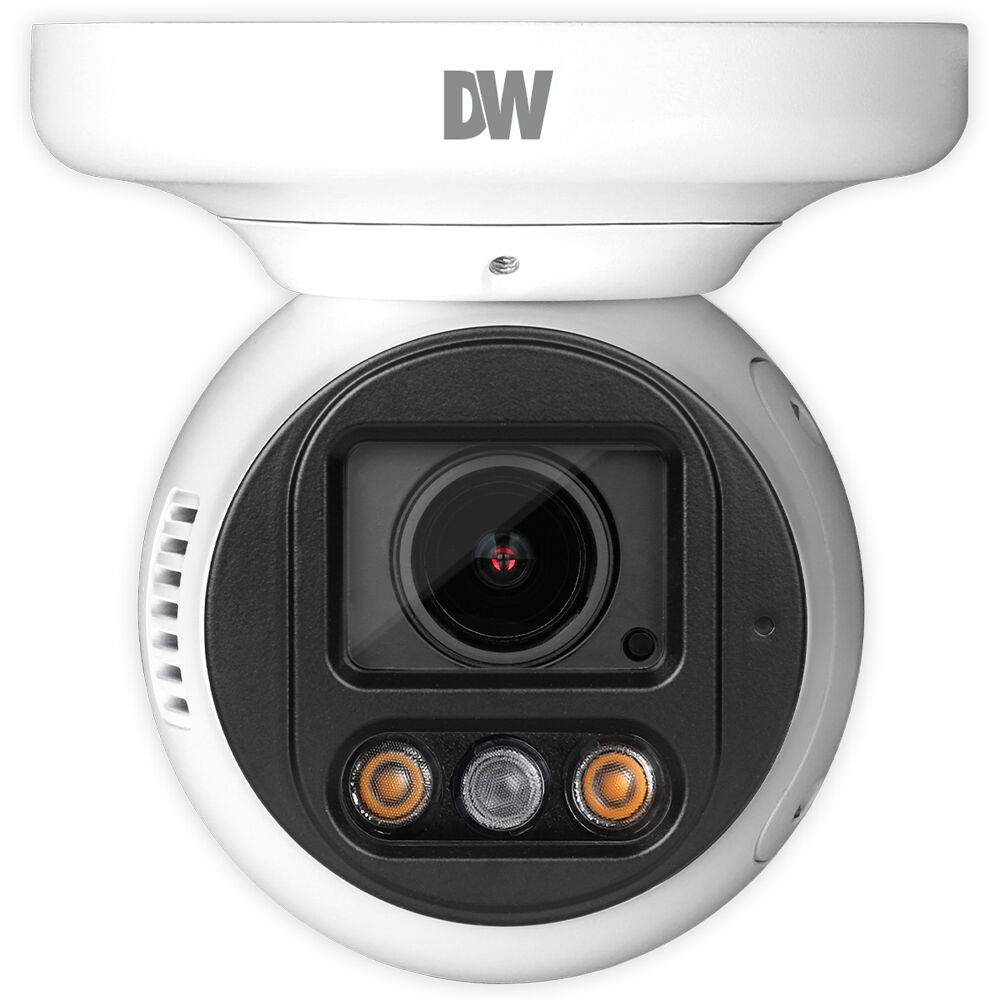

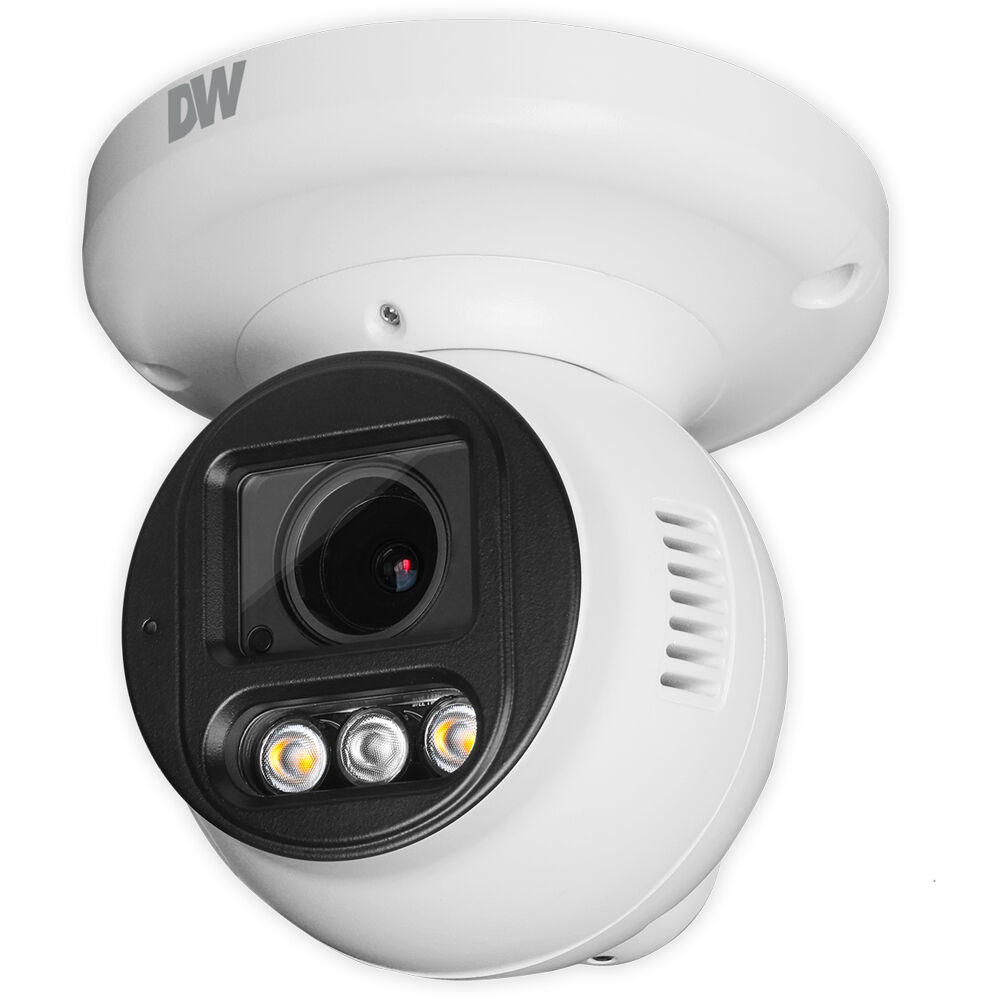

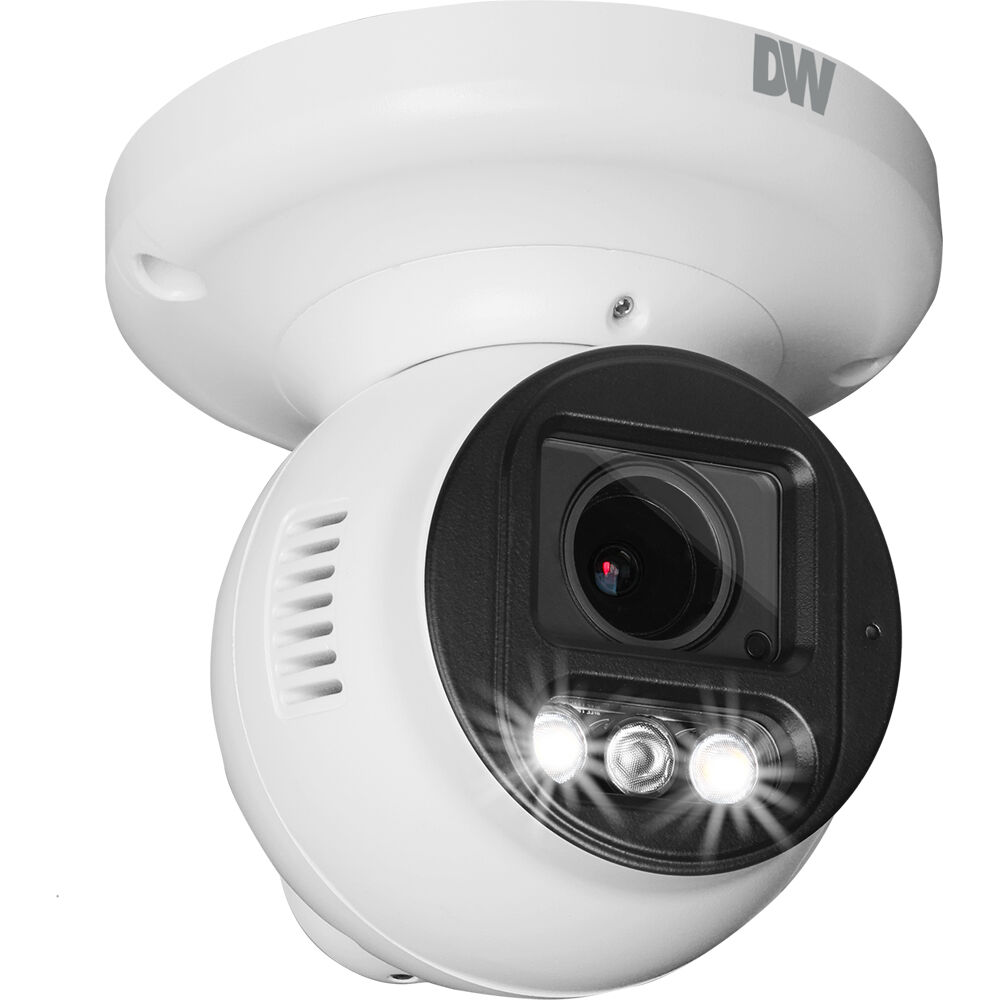

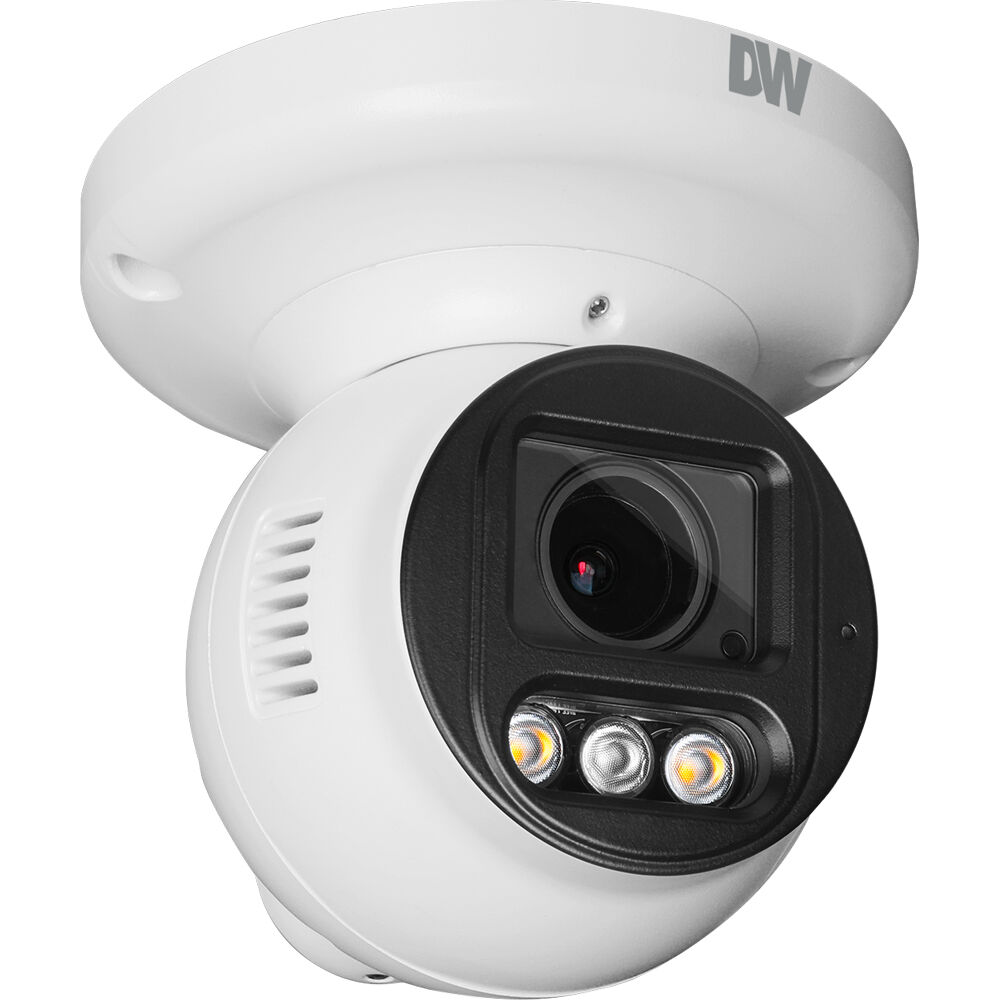

Digital Watchdog DWC-XSTD05MF Overview
Securely monitor your surroundings with the MEGApix Ai DWC-XSTD05MF 5MP Outdoor Network Turret Camera from Digital Watchdog. This unit uses a 1/2.8" sensor to capture 2592 x 1944 resolution video at 30 fps. A 200 lumen white light provides up to 90' of illumination. Additionally, red and blue flash LEDS keep unwanted activity at bay. The camera's 2.7-12mm motorized varifocal lens delivers an 89.9 to 31.5° horizontal angle of view. Two-way audio is possible thanks to a built-in speaker and microphone. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profile S for interoperability with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Star-Light Plus technology enables the camera to record color video in low-light conditions
Day and night switching
White light illumination with intelligent camera sync

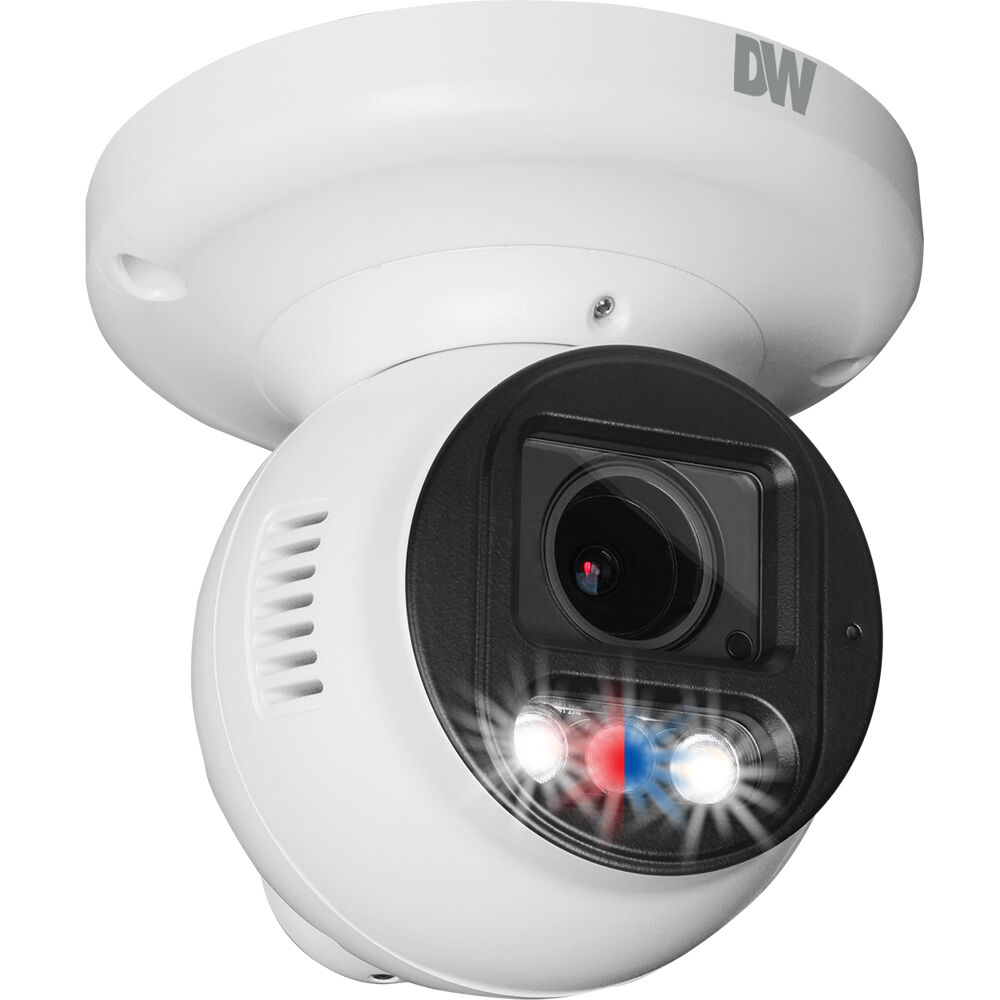

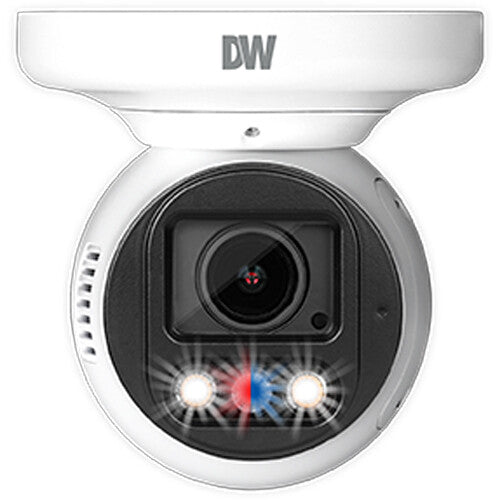

Red and blue flash LEDs to deter crime and unwanted activity
Deep Learning object tracking
Analytics filters include zones and lines, tamper, metadata, intrusion, line crossing, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, and logical rules
Configure up to 40 separate detection zones
Seamless setup with no no analytics calibration required
Triple streaming
Additional features include true WDR (120 dB), 3D-DNR, automatic gain control, white balance, mirror/flip orientation, 16 programmable privacy masks, and mirror and flip orientation
Built-in web server
Compatible with Windows, macOS, Linux, Edge, Chrome, Firefox, Safari, and DW Spectrum IPVMS
PoE and 12 VDC power (adapter not included)
UPC: 812226039227
Items Included
- Digital Watchdog MEGApix Ai DWC-XSTD05MF 5MP Outdoor Network Turret Camera
- 2 x Screws & Plastic Anchors
- Mounting Template
- Star Wrench (T10)
- Hexagonal Wrench 2.0
- Moisture Absorber
- Waterproof Cap & Rubber Rings
- Limited 5-Year Manufacturer Warranty
Additional Resources
Digital Watchdog DWC-XSTD05MF Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.7 to 12mm
|
| Field of View |
Horizontal: 89.9 to 31.5°
Vertical: 64.5 to 23.6° |
| Built-In Microphone |
Yes
|
| Power I/O |
1x DC (12VDC)
1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5.17 Megapixel
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/32000 to 1/15 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.03 Lux (Color)
0 Lux |
Lens
| Focal Length |
2.7 to 12mm
|
| Optical Zoom Ratio |
4.4x
|
| Field of View |
Horizontal: 89.9 to 31.5°
Vertical: 64.5 to 23.6° |
| Maximum Aperture |
f/1.3
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2592 x 1944 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering
|
| Supported Protocols |
APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile S, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
Yes
|
| Built-In Speaker |
Yes
|
System Integration
| Analytics |
Abandoned Object, Camera Sabotage/Tampering, Directional Detection, Entering/Exiting, Intrusion Detection, Motion Detection, Object Counting, Object Detection, Object Removal, Stopped Vehicle, Tailgating, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x DC (12VDC)
1x RJ45 |
| Power Consumption |
12 VDC at 1 A (12 W)
PoE: 329.1 mA (15.8 W) |
Environmental
| Operating Conditions |
-4 to 122°F / -20 to 50°C at 10 to 90% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Material of Construction |
Aluminum, Polycarbonate
|
| Certifications |
CE, FCC, UL, NDAA, TAA
|
| Illumination |
200 Lumen White LED up to 90' / 27.4 m
LED Spotlight |
| OS Compatibility |
Computer: macOS / Windows / Linux
Mobile: Android/iOS |
| Dimensions (W x H x D) |
4.9 x 4.8 x 4.9" / 125 x 122 x 125 mm
|
| Weight |
1.94 lb / 0.88 kg (Body Only)
|
