Description
Dahua Technology N464E124C Overview

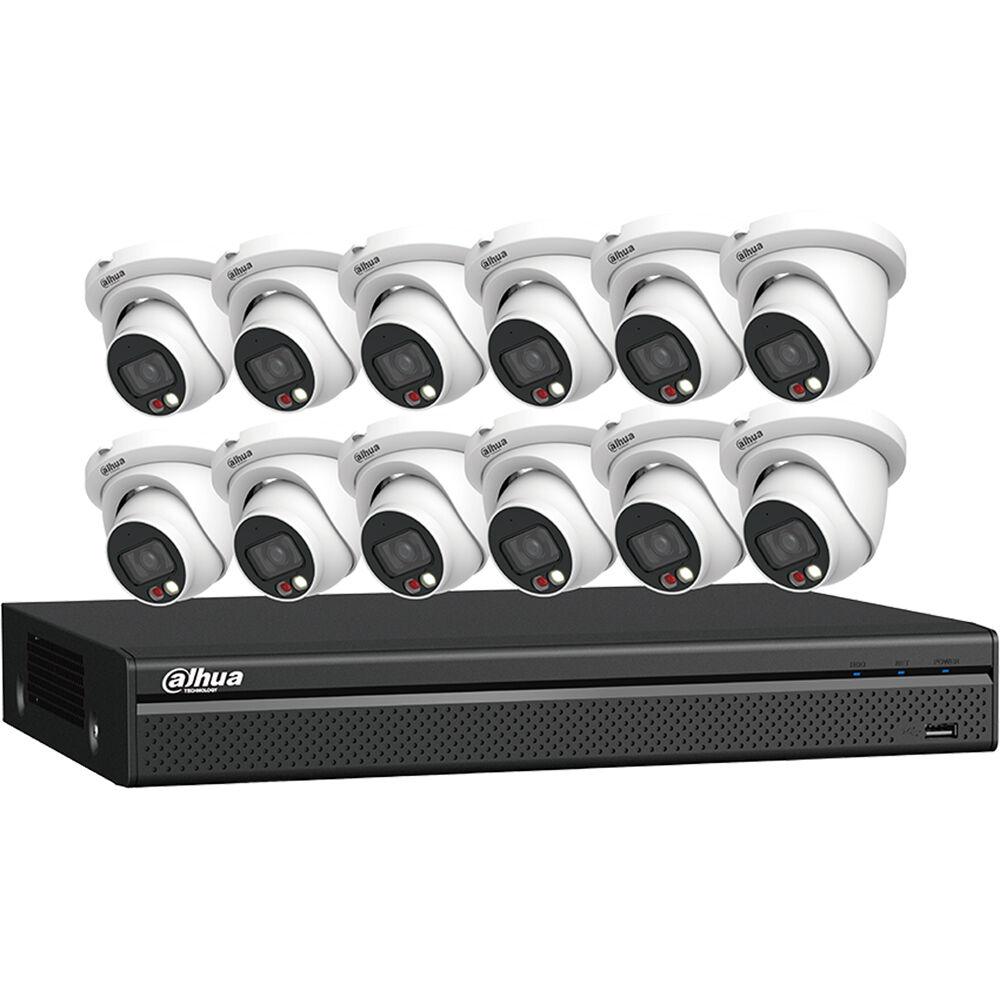

The Dahua Technology N464E124C includes the N42C3P4 16-Channel 4K UHD NVR with 4TB HDD bundled with twelve WizSense VU-MORE N42DJS2 4MP turret cameras for an indoor/outdoor video surveillance solution.

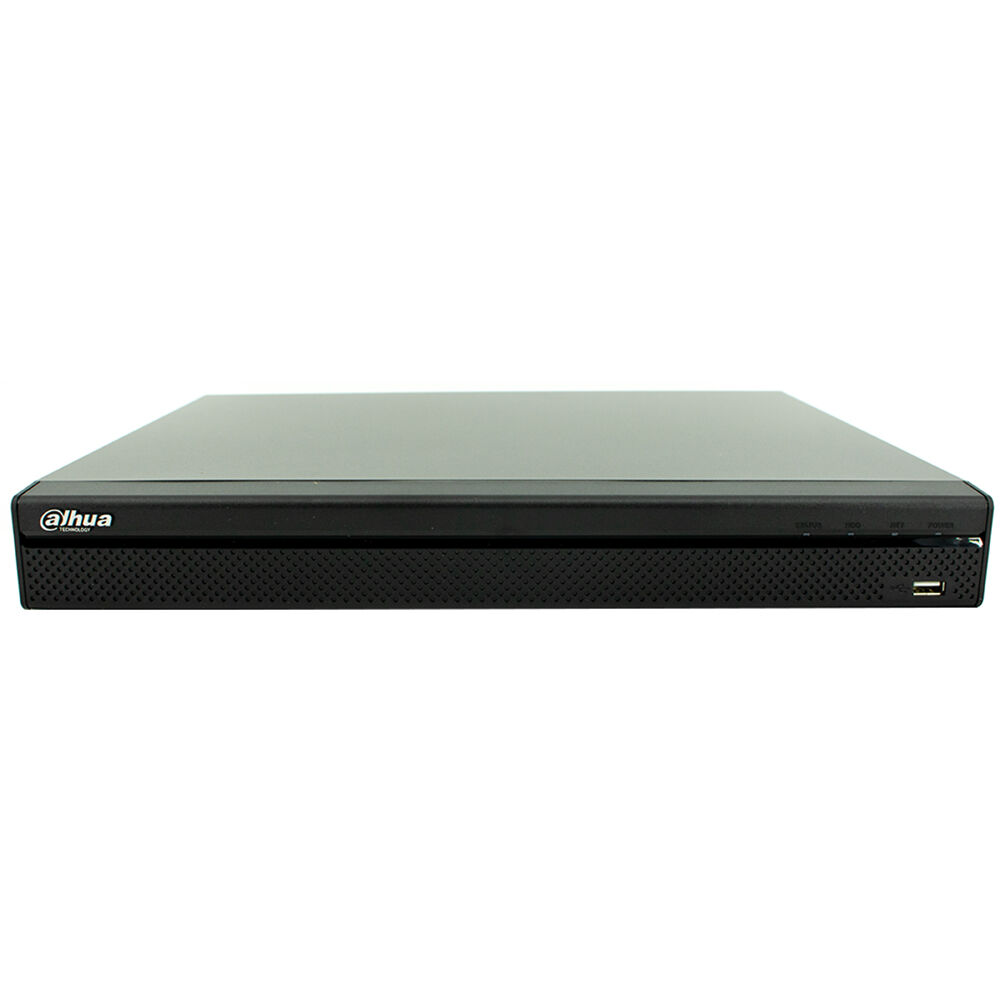

Record from and manage up to 16 cameras with the N42C3P4 16-Channel 4K UHD NVR with 4TB HDD from Dahua Technology. This NVR supports IP cameras up to 12MP. It is equipped with two SATA III ports for a maximum capacity of 20TB (4TB preinstalled). H.265+, H.265, H.264+, H.264, and MJPEG video codecs keep file sizes manageable while maintaining the best quality possible.
This NVR supports up to 128 users. An RCA audio input and output enables two-way audio. An HDMI and VGA port delivers video output to an external monitor (available separately) at up to 4K UHD resolution. Compliance with ONVIF profiles G, S, and T provides interoperability with ONVIF IP cameras.

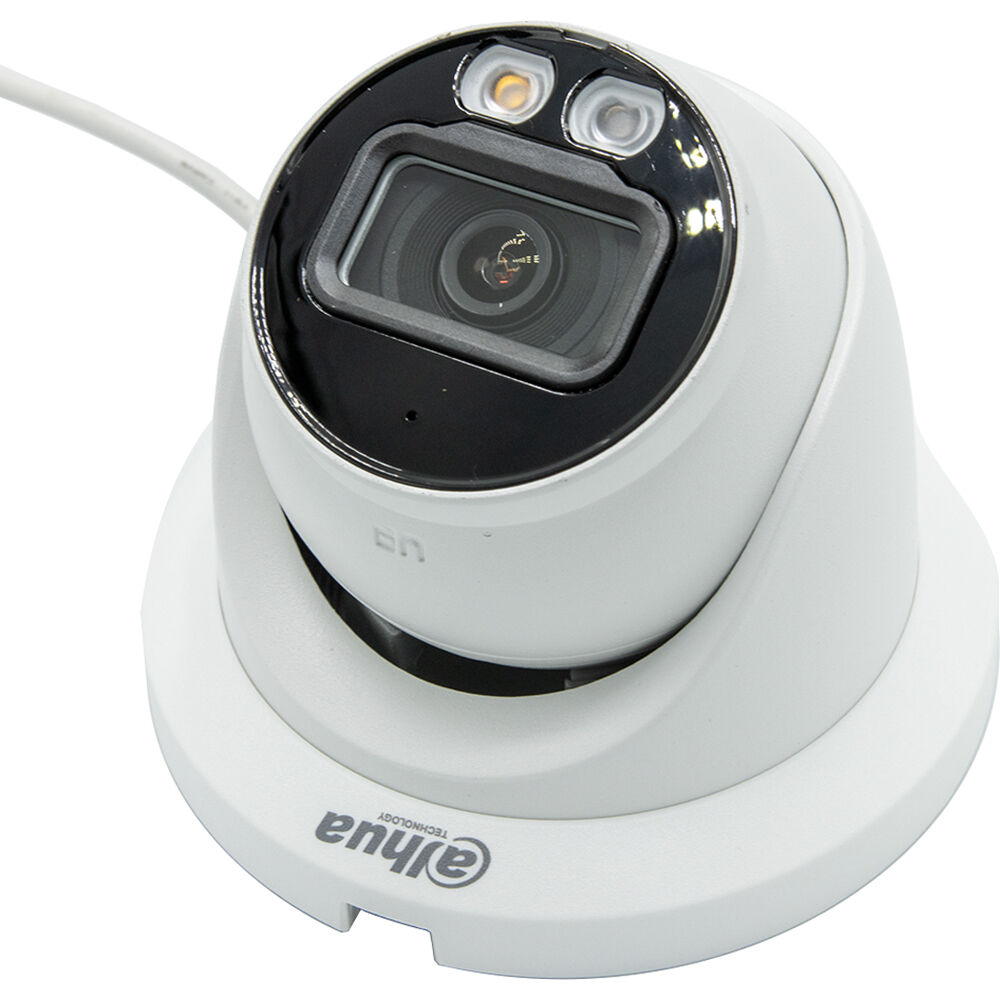

Monitor an indoor or outdoor area with the WizSense VU-MORE N42DJS2 4MP Network Turret Camera from Dahua Technology. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 20 fps. An IR LED provides up to 98' of low-light illumination. Additionally, a white light provides up to 49' of illumination for recording full color video at night. The camera's 2.8mm fixed lens delivers a 95° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera complies with ONVIF profiles S and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.

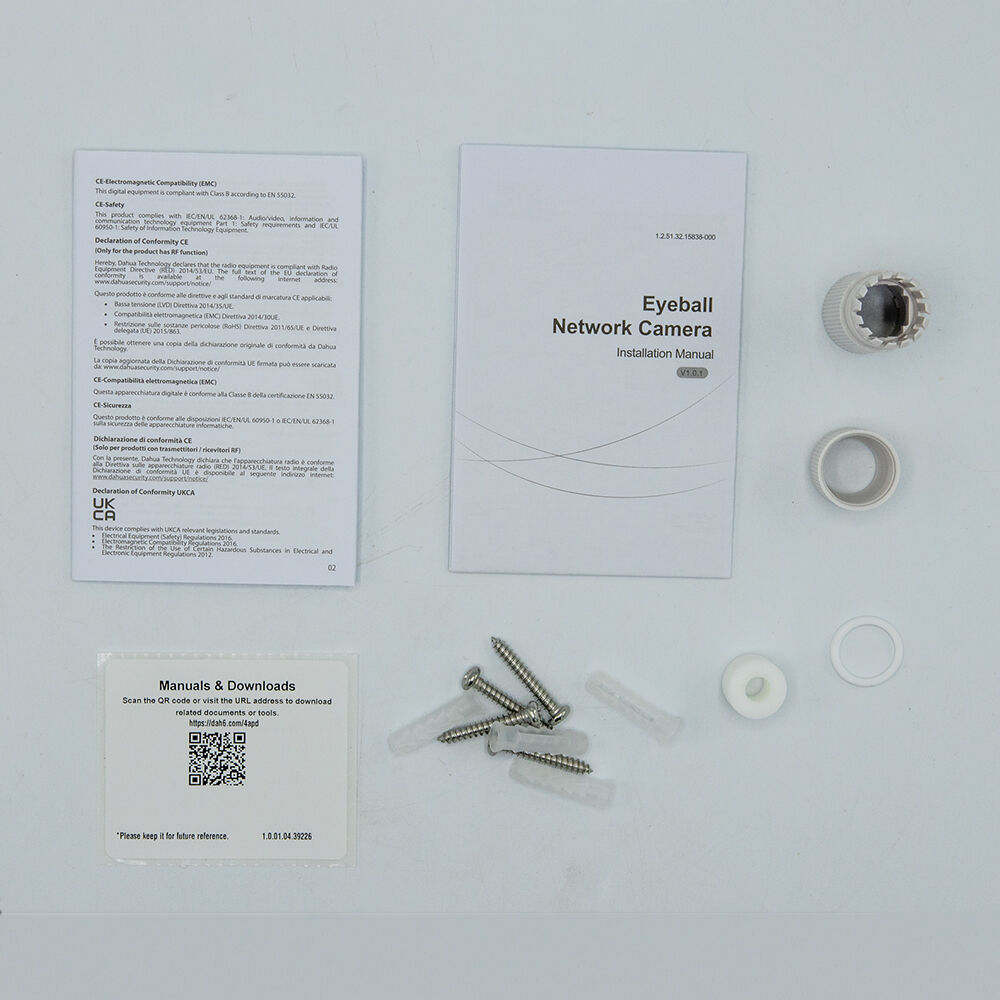

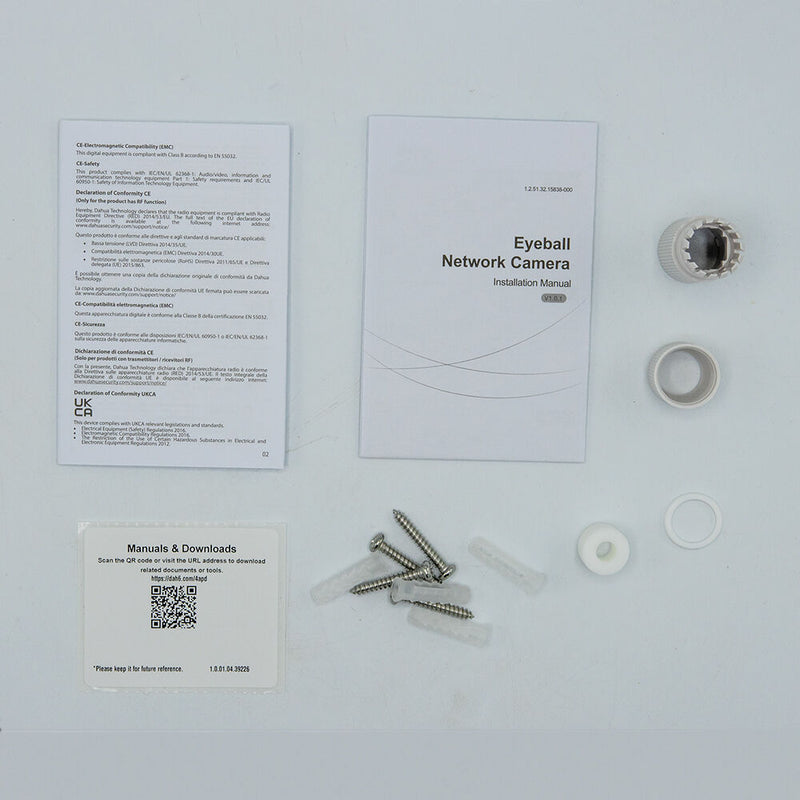

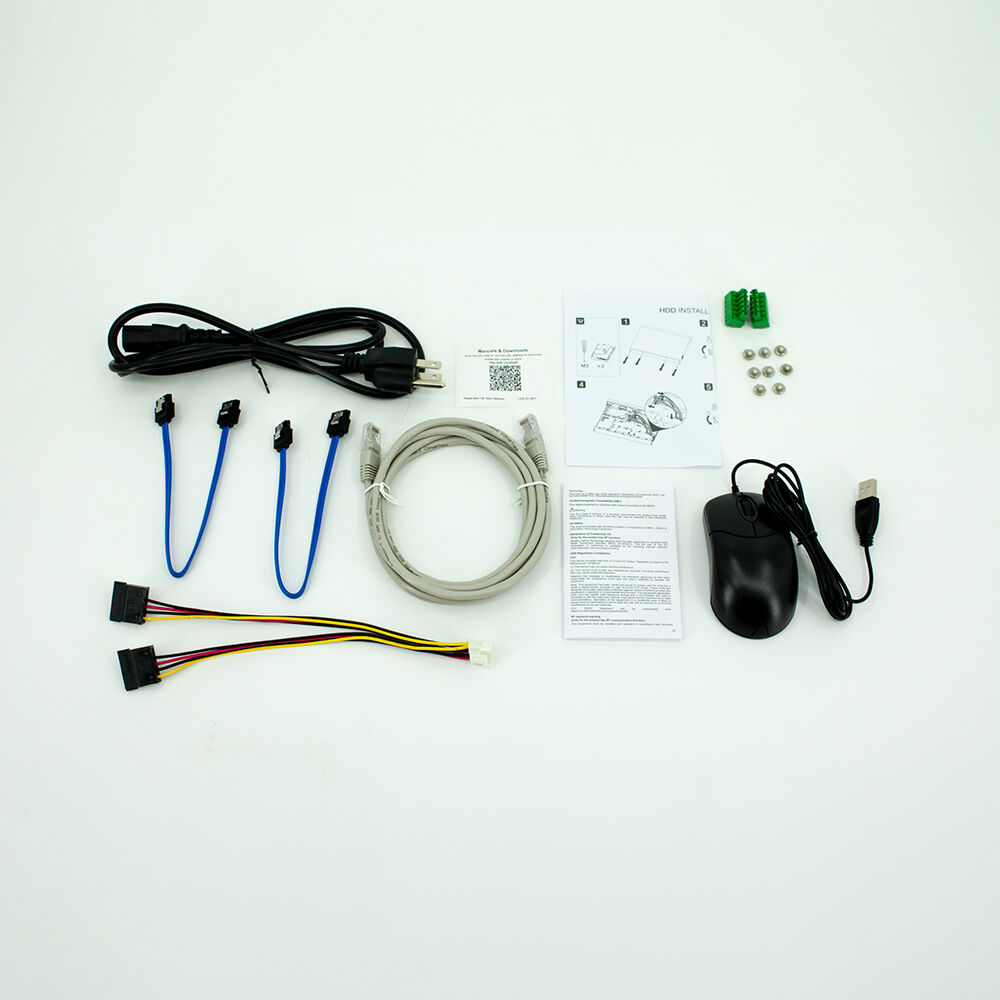

Items Included
- Dahua Technology N42C3P4 16-Channel 4K UHD NVR with 4TB HDD
- Limited 5-Year Warranty
- 12 x Dahua Technology WizSense VU-MORE N42DJS2 4MP Outdoor Network Turret Camera
- Wrench
- Waterproof Connector
- Screw Package

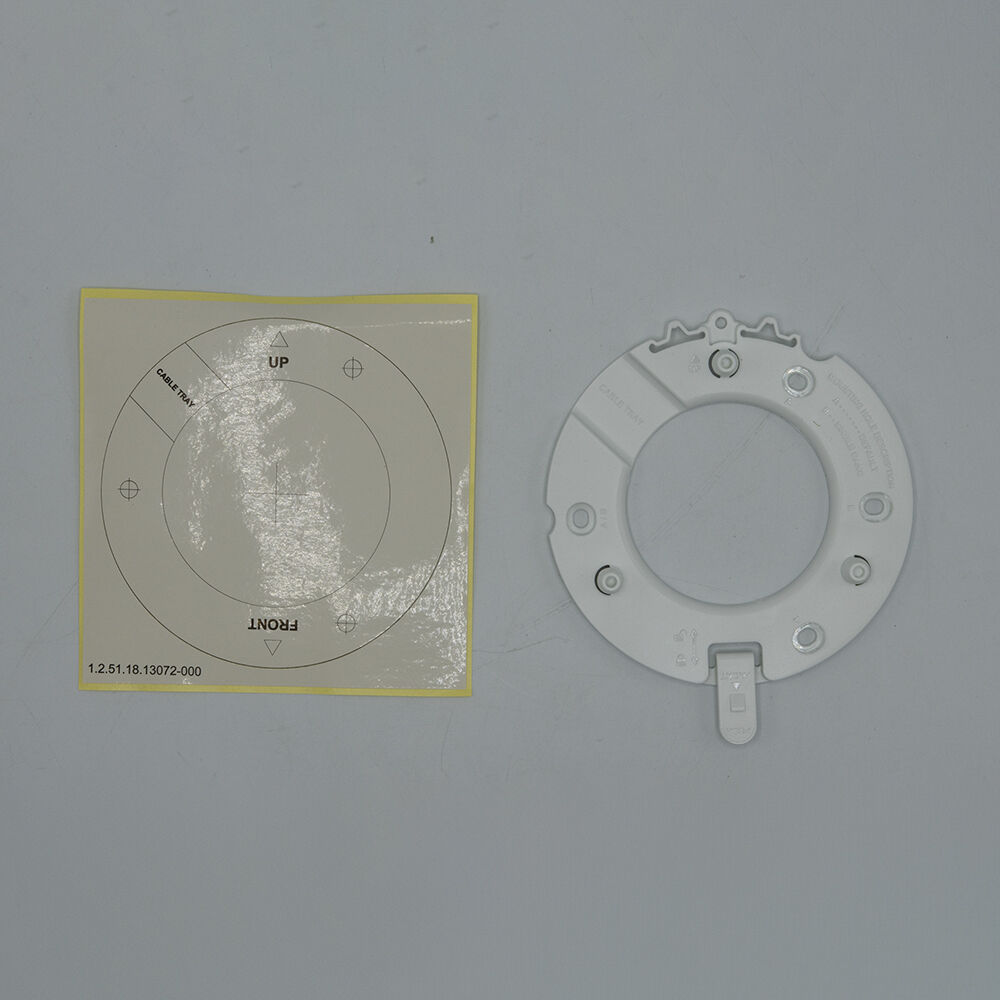

- Positioning Map
- Limited 5-Year Warranty
Additional Resources
Dahua Technology N42C3P4 16-Channel 4K UHD NVR with 4TB HDD
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 VGA: 1920 x 1080 |
| Recording Resolution |
1080p, 720p, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| PTZ Support |
Yes
|
| Throughput |
160 Mb/s (Playback)
|
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE+
1x RJ45 Gigabit Ethernet 1x RS-232 2x USB-A 2.0 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
4 TB Hard Drive
|
| PoE Power Budget |
117 W
|
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 VGA: 1920 x 1080 |
| Recording Resolution |
1080p, 720p, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| PTZ Support |
Yes
|
| Playback Speeds |
1x, 4x, 8x (Sync)
|
| Throughput |
160 Mb/s (Playback)
|
| IP Camera Support |
16
|
| Decoding Resolution |
2 Channels:
8 MP at 30 fps 4 Channels: 4 MP at 30 fps 8 Channels: 2 MP at 30 fps 16 Channels: 2 MP at 15 fps |
| 2-Way Audio |
Yes
|
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE+
1x RJ45 Gigabit Ethernet 1x RS-232 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA III
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Maximum User Access |
128
|
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IP, IP Filter, IPv4, IPv6, NTP, ONVIF, P2P, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
|
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+, MJPEG
|
| Supported Audio Codecs |
G.711, G.711A, G.726, PCM
|
| Backup Method |
Network, USB Drive
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
| Installed Operating System |
Embedded Linux
|
| Installed Drive |
4 TB Hard Drive
|
| Max Capacity Supported |
10 TB (Each Drive)
20 TB (Total) |
| Number of Bays |
2x Internal
|
| OS Compatibility |
Linux
|
| Web Browser Support |
Chrome, Internet Explorer
|
| Alarm I/O |
4x Input
2x Output |
| Event Trigger |
Alarm, Analytics, Disconnected, Disk Full, Drive Error, Motion, Video Loss
|
| Notification Type |
Buzzer, Email
|
| Search Modes |
Alarm, Date/Time, Motion, Search, Smart Search
|
| Recording Modes |
Alarm, Manual, Motion, Smart
|
| Multi-Screen Configuration |
