Description

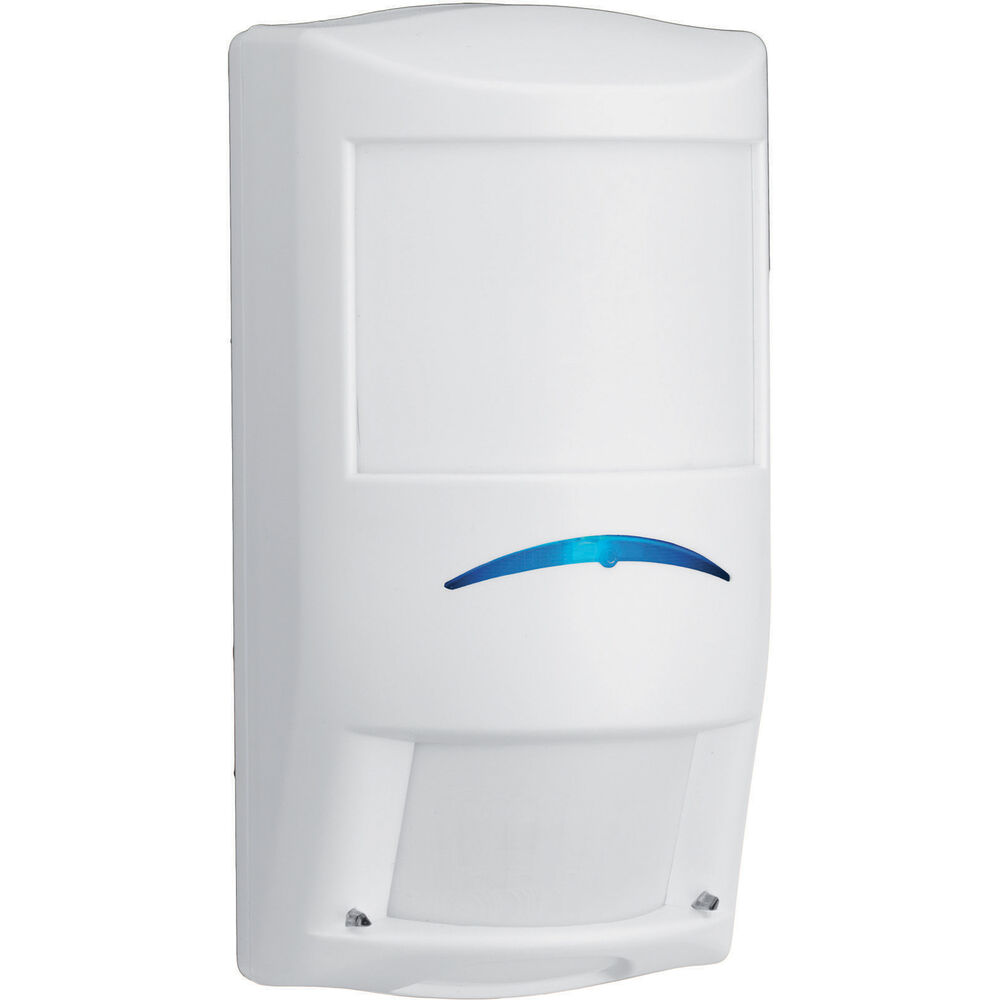

Bosch ISC-PDL1-WA18G Overview
Ideal for commercial indoor spaces, the Professional Series TriTech+ Motion Detector with Anti-Mask from Bosch provides PIR motion detection across a 60 x 80' coverage area, along with a field selectable coverage area of 25 x 33'. MANTIS anti-mask technology minimizes the risk of intruders obscuring the detector. Additionally, Tri-focus optics technology uses long-range, middle-range, and short-range coverage focal lengths across 86 detection zones while delivering 11 solid curtains of detection.
Tri-focus optics technology utilizes optics with long-range, middle-range, and short-range coverage focal lengths
Detector applies focal lengths across 86 detection zones and delivers 11 solid curtains of detection
MANTIS anti-mask technology ensures that intruders obscuring the detector is minimized
Sensor data fusion technology gathers signals from two pyroelectric sensors, a range adaptive radar sensor, a room temperature sensor, and a white light level sensor
Range adaptive radar automatically adjusts detection thresholds via inputs from the PIR sensors
Cloak and camouflage detection technology maximizes cat perform against intruders trying to cover their IR signal
Draft, insect, and small animal immunity minimizes false alarms caused by animals that weigh less than 10 lbs
Additional features include self-adjusting LEDs, active white light suppression, cover and wall tamper switch, trouble memory, remote self test, input power supervision, alarm memory, and solid state relays
LED indicators for TriTech+ alarms, microwave detection, and PIR detection
UPC: 800549962810
Items Included
- Bosch Professional Series TriTech+ Motion Detector with Anti-Mask
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Bosch ISC-PDL1-WA18G Specs
Inputs/Outputs
| Outputs |
Tamper: Normally Closed (NC) Contacts (with Cover On) Rated at 25 VDC, 125 mA Maximum. Connect Tamper Circuit to 24-Hour Protection Circuit.
Trouble: Solid State Relay Normally Closed (NC) Contacts. Alarm Relay: Solid State Relay, Normally Closed (NC) Contacts, Power Supervised. 3 W, 125 mA, 25 VDC, Resistance <10 Ohms. |
Power
| Power Source |
DC Input
|
| DC Input Power |
9 to 15 VDC
|
| Operating Current |
18 mA (Standby)
26 mA (Maximum) |
Physical
| Mounting |
Multiple Flat Wall, Corner, Ceiling
|
| Color |
White
|
| Material of Construction |
High-Impact ABS Plastic
|
| Environmental Resistance |
Dust/Water-Resistant (IP41)
|
| Impact Resistance |
Impact-Resistant (IK04)
|
| Certifications |
FCC, UL, WEEE
|
| Operating Conditions |
-22 to 130°F / -30 to 54°C at 0 to 95% Humidity
|
| Storage Conditions |
-22 to 130°F / -30 to 54°C
|
| Dimensions |
5 x 2.7 x 2.3" / 127 x 69 x 58 mm
|
Packaging Info
| Package Weight |
0.57 lb
|
| Box Dimensions (LxWxH) |
6.5 x 2.9 x 2.8"
|
