Description

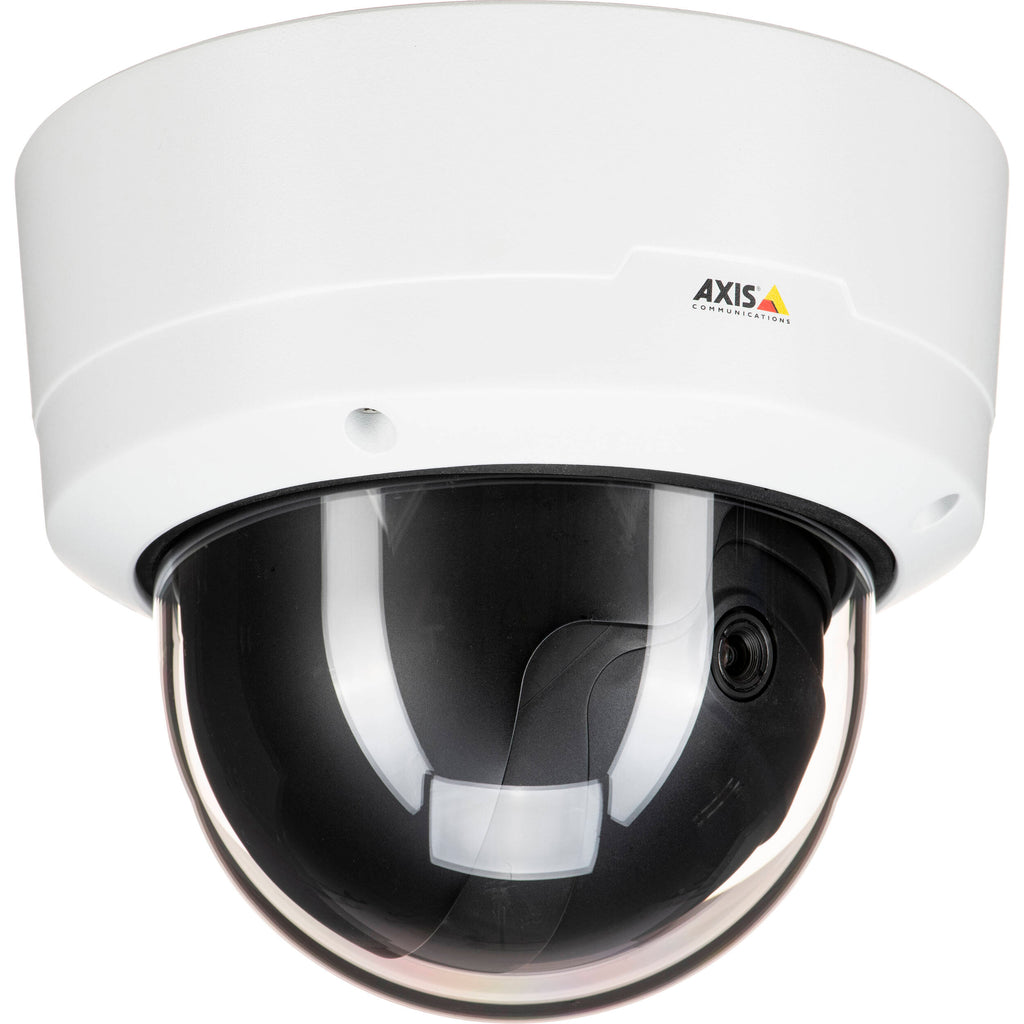

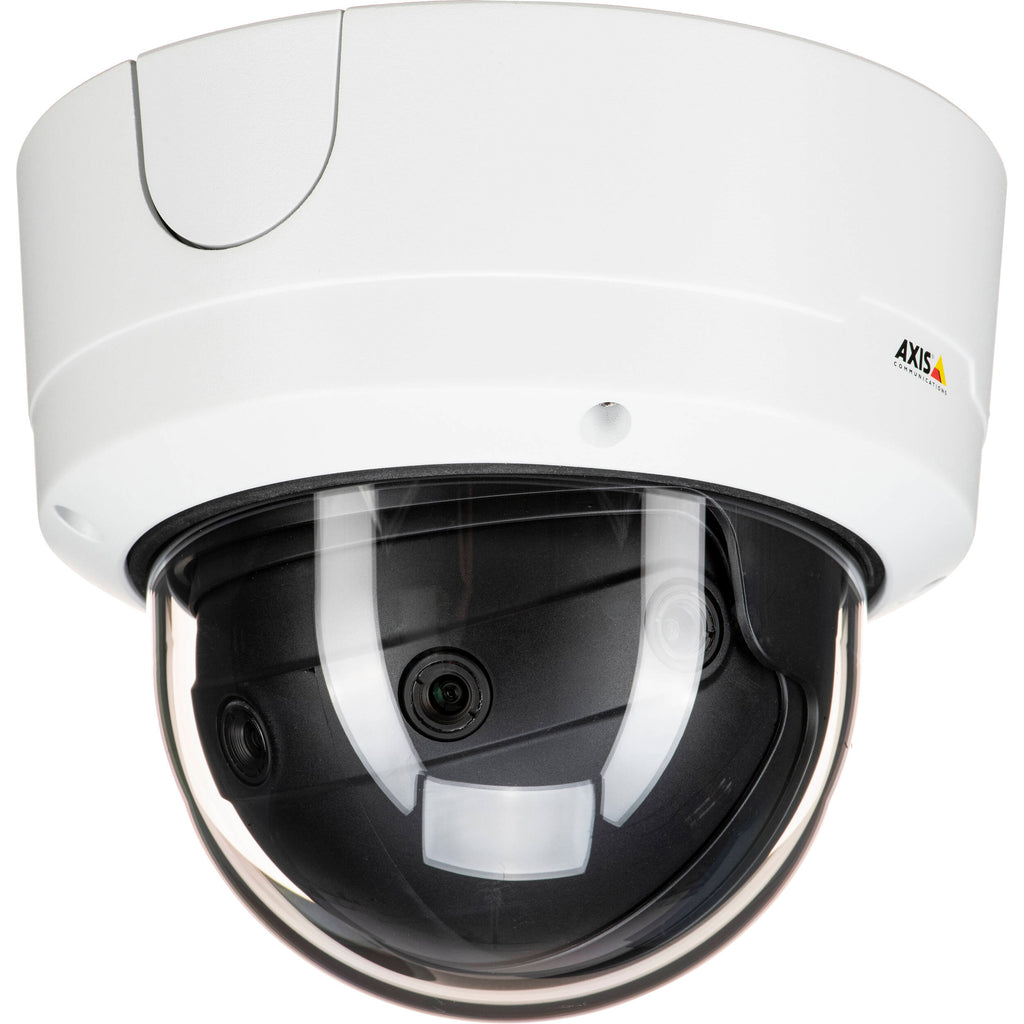

Axis Communications Q3819-PVE Overview
Monitor four different views in an indoor or outdoor area from a single device with the Q3819-PVE 14MP 4-Sensor 180° Panoramic Network Dome Camera from Axis Communications. This multisensor camera uses four 1/2.5" progressive scan RGB CMOS sensors to capture video at a combined resolution of 14.2MP at 30 fps. The camera is equipped with four 5.9mm fixed lenses to capture a 180° panoramic overview. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This unit complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Put two Q3819-PVE cameras on a T94V01C dual-camera mount for a complete 360° overview (additional camera and mount available separately)
Automatically removable IR cut filter for day and night functionality
H.265, H.264, and MJPEG codecs
Controllable frame rate and bandwidth (VBR/ABR/MBR H.264/H.265)
Image settings include saturation, contrast, brightness, sharpness, advanced WDR imaging up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, orientation aid, exposure control, noise reduction, fine tuning of behavior at low light, and polygon privacy masks
Machine learning processing unit (MLPU)
Security features include brute force delay protection, signed firmware, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module, and Axis Edge Vault with Axis device ID
Analytics include AXIS Object Analytics (humans and vehicles), AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard, AXIS Video Motion Detection, active tampering alarm, audio detection, advanced gatekeeper, gatekeeper, and support for third-party applications
Built-in installation aids include remote pan/tilt/roll designed to withstand at least 200 full cycles, autoroll, pixel counter, and leveling guide
Two-way audio
1000M Ethernet port
Terminal block for two configurable supervised inputs/digital outputs
Support for microSD card encryption and recording to network-attached storage (NAS)
13' or higher recommended mounting height
3/4" M25 conduit side entries
PVC free
Camera Adjustment Angles
±135° horizontal angle adjustment
15 to 92° vertical angle adjustment
±8° roll adjustment
In the Box
- Axis Communications Q3819-PVE 14MP Outdoor 4-Sensor 180° Panoramic Network Dome Camera
- Windows Decoder 1-User License
- Weathershield
- RESITORX T20 Screw Bit
- Connector Guard
- Limited 5-Year Warranty
Axis Communications Q3819-PVE Specs
Camera
| Sensor | 4 x 5 MP 1/2.5" CMOS |
| Focal Length | 5.9mm |
| Maximum Aperture | f/1.88 |
| Lens Field of View | Horizontal: 180° Vertical: 38° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.16 Lux B&W: 0.06 Lux |
| Shutter Speed | 1/40,000 to 1/25 Seconds |
Video
| Streaming Resolution | 8192 x 1728 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC-LC, G.711, G.726, LPCM, Opus |
| Built-In Mic | No |
| External Audio Input | 3.5 mm |
Networking
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6, syslog |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Included: AXIS Object Analytics (humans and vehicles), AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard, AXIS Video Motion Detection, Active Tampering Alarm, Audio Detection, Advanced Gatekeeper, Gatekeeper Supported: Axis Camera Application Platform Enabling Installation of Third-Party Applications |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Built-In Installation Aids | Remote Pan/Tilt/Roll, Autoroll, Pixel Counter, Leveling Guide |
Environmental
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Startup Temperature | -40°F / -40°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 100% |
| IP Rating | IP67 |
| IK Rating | IK10 |
General
| Memory | 2048 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 1 x Power |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | PoE 802.3at (30 W) |
| Power Consumption | 12 W |
| Material of Construction | Aluminum, Polymer |
| Dimensions | ø: 7.7 x H: 6.7" / ø: 195.0 x H: 170.0 mm |
| Weight | 5.3 lb / 2.4 kg |
Packaging Info
| Package Weight | 6.885 lb |
| Box Dimensions (LxWxH) | 13.6 x 9.1 x 9" |
