Description
Axis Communications Q1800-LE Overview

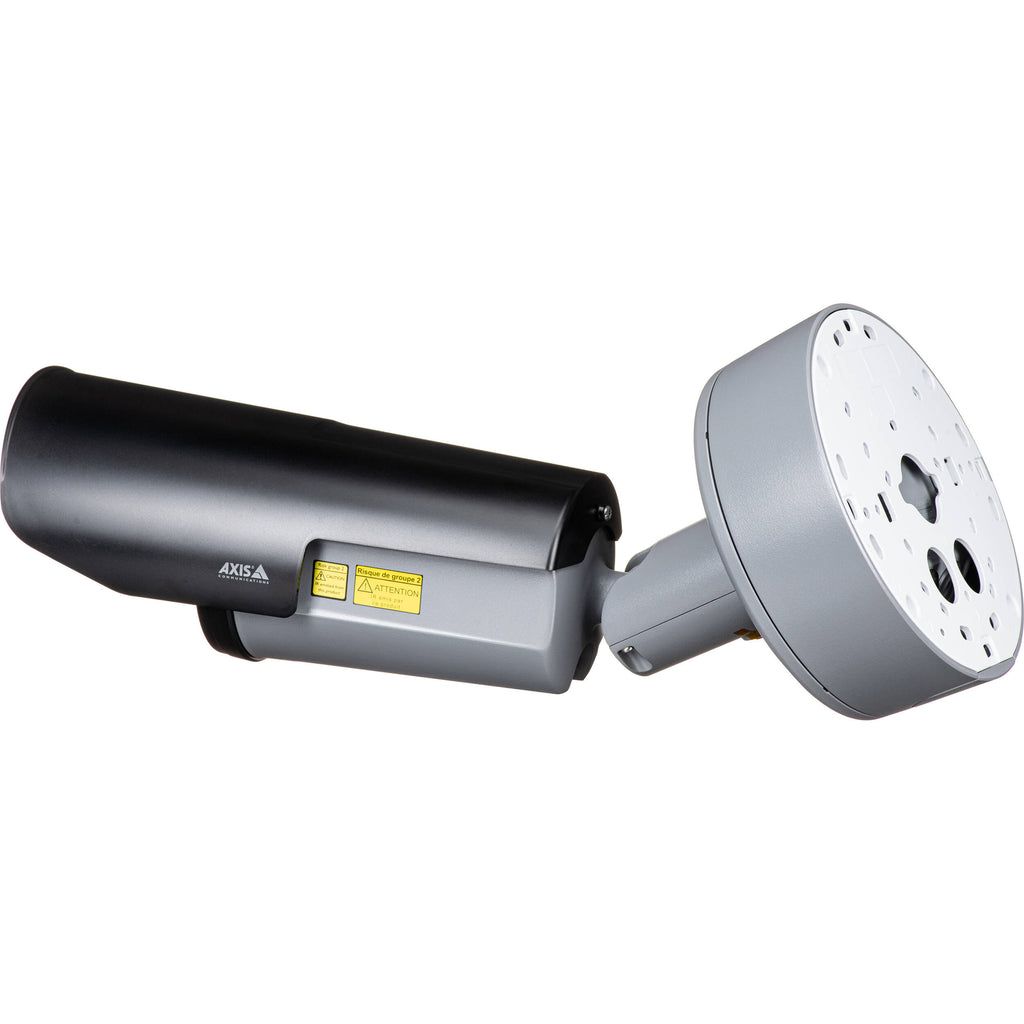

The Q1800-LE Outdoor License Plate Camera from Axis Communications is an outdoor license plate camera that is specifically designed to capture license plates on vehicles moving at high speeds, up to 155 mph from up to 328' away. Features include a wide dynamic range, third-party VMS compatibility, a 7-138mm lens, 1080p resolution capture, EIS, and compatibility with an IR LED accessory for capture at night.
With the optional AXIS T90D20 IR-LED Illuminator accessory, the camera can capture license plate images at up to 164' in pitch darkness for reliable performance day and night.
And, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.
Electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. It also features a discreet gray-color housing and black weathershield that can blend right into any traffic environment.
Items Included
- Axis Communications Q1800-LE Outdoor License Plate Camera
- Terminal Block Connector
- Connector Guard
- Cable Gasket Set
- RJ45 Cable
- Authentication Key
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications Q1800-LE Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
7 to 137mm
|
| Field of View |
Horizontal: 38 to 2.3?
Vertical: 22 to 1.3? |
| Output Formats |
Ethernet:
1920 x 1080p at 25/30/50/60 fps |
| Video I/O |
1x RJ45 LAN Input/Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x Block 4-Pin (10 to 28VDC)
|
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel (1920 x 1080)
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 7 to 138mm Lens:
Detect: 317.3 to 6181.8' / 96.7 to 1884.2 m Observe: 126.0 to 2453.1' / 38.4 to 747.7 m Recognize: 63.3 to 1236.2' / 19.3 to 376.8 m Identify: 31.8 to 618.1' / 9.7 to 188.4 m |
| Shutter Speed |
1/71500 to 2 Second in Video Mode
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.6 Lux at f/1.5 Aperture (Color)
0.1 Lux at f/1.5 Aperture (Black and White) |
| Focal Length |
7 to 137mm
|
| Field of View |
Horizontal: 38 to 2.3?
Vertical: 22 to 1.3? |
| Maximum Aperture |
f/1.5 to 4
|
| Output Formats |
Ethernet:
1920 x 1080p at 25/30/50/60 fps |
| Security |
Centralized Certificate Management, HTTPS, IEEE 802.1X
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video I/O |
1x RJ45 LAN Input/Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| External Storage Options |
NAS
|
| Analytics |
License Plate Recognition
|
| Built-In Installation Aids |
Autofocus, Remote Focus, Remote Zoom
|
| Alarm I/O |
No
|
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Block 4-Pin (10 to 28VDC)
|
| Power Consumption |
PoE: 12.6 to 25.5 W
Device: 10 to 28 VDC 11 to 29 W Power Supply: 10 to 24 VAC |
| Operating Conditions |
-40 to 140?F / -40 to 60?C at 10 to 100% Humidity
|
| Storage Conditions |
-40 to 149?F / -40 to 65?C at 5 to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Corrosion/Weather-Resistant (IP66)
|
| Materials |
Aluminum, Plastic
|
| Certifications |
CSA, KC, TAA, UKCA, UL, cUL
|
| Dimensions (W x H x D) |
18.3 x 7.2 x 7.2" / 464 x 183 x 183 mm
|
| Weight |
7.1 lb / 3.2 kg (Body Only)
|
| Package Weight |
8.915 lb
|
| Box Dimensions (LxWxH) |
17.3 x 8.9 x 7.9"
|
