Description

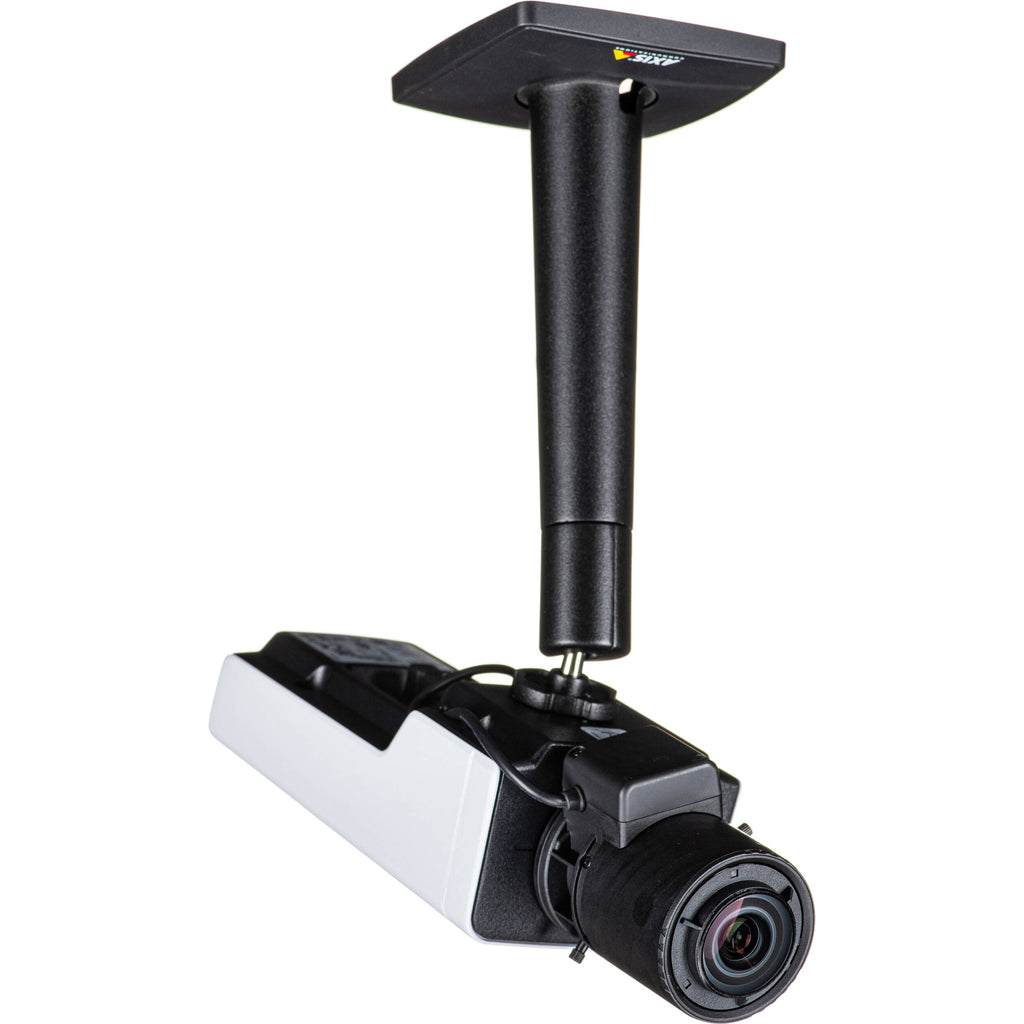

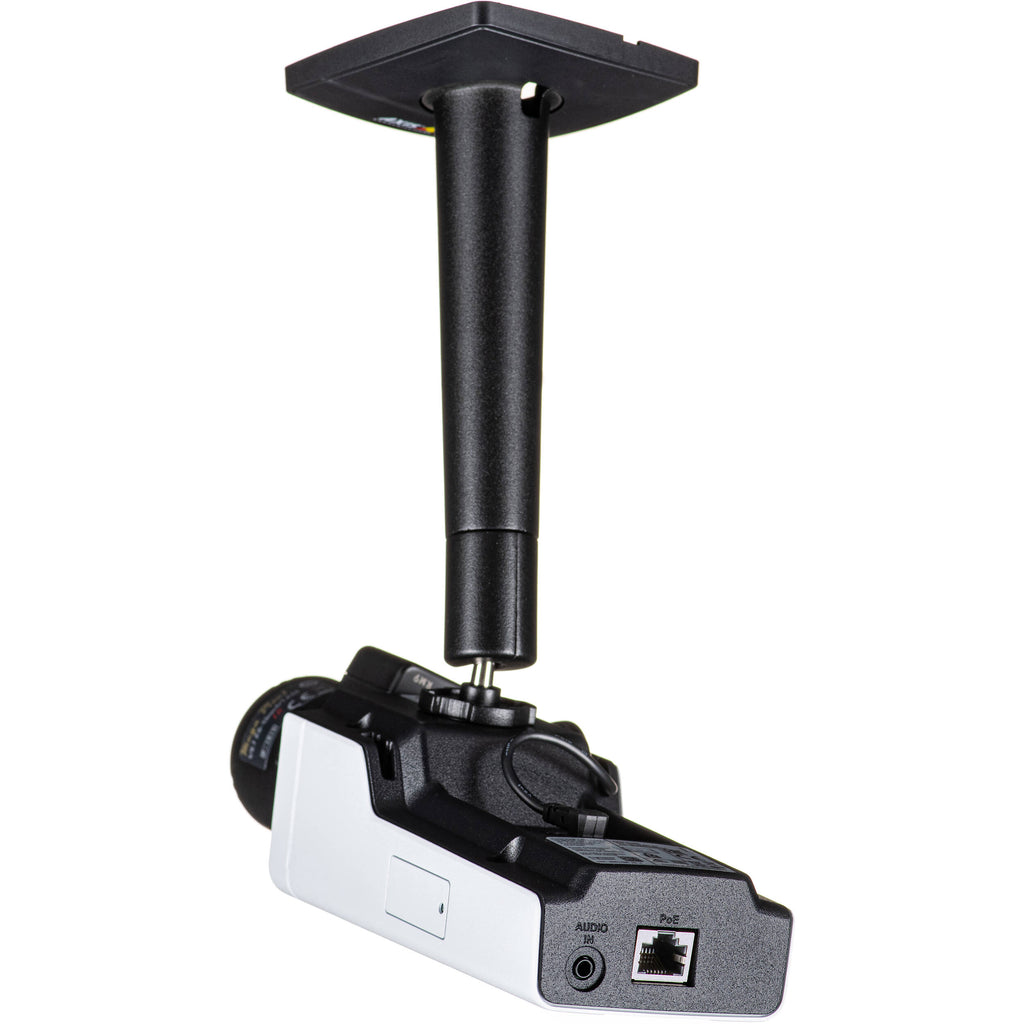

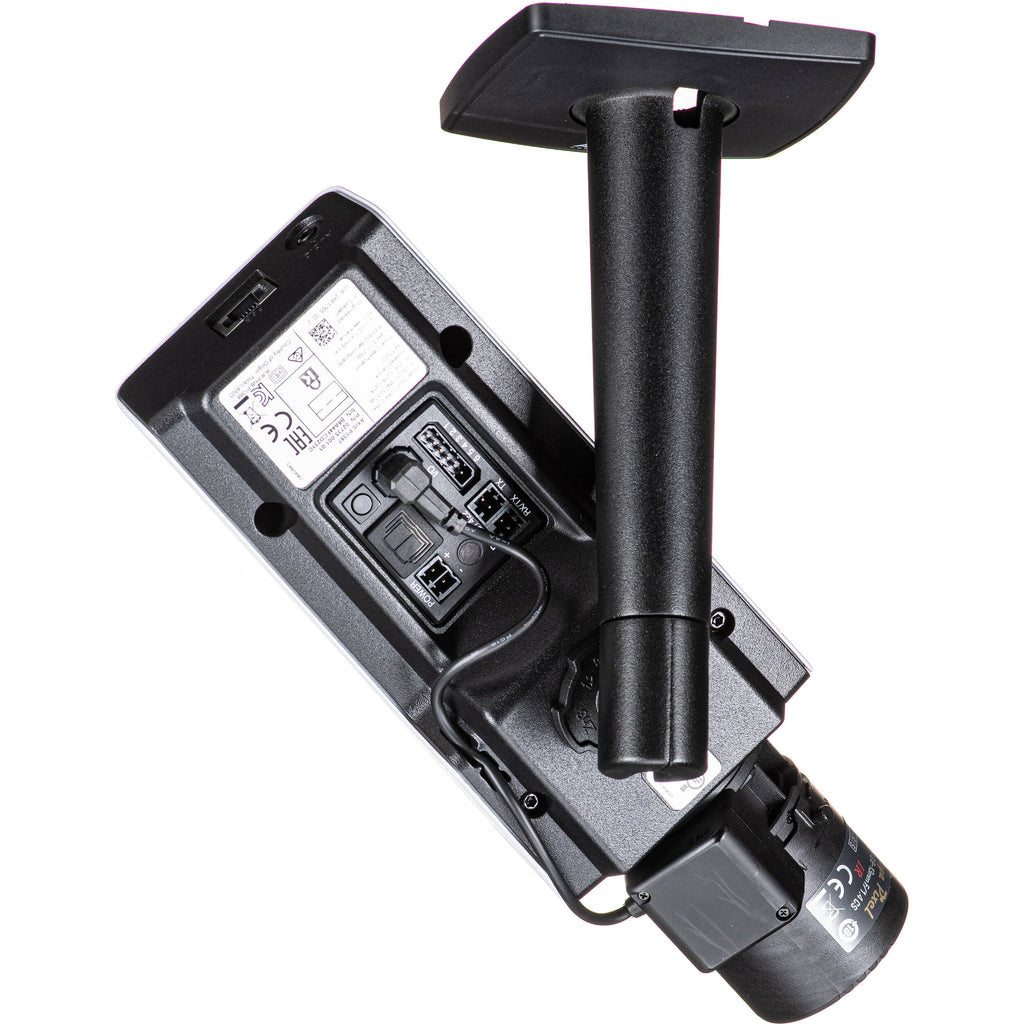

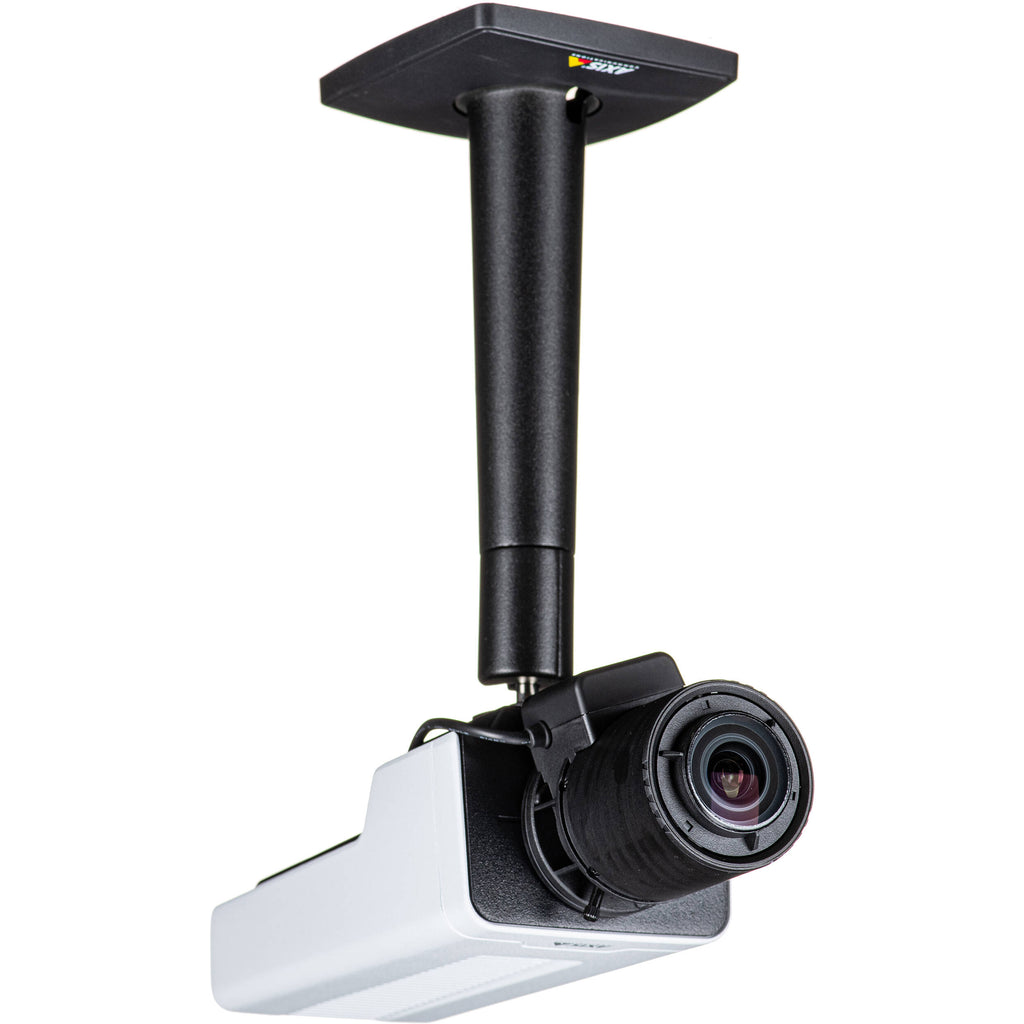

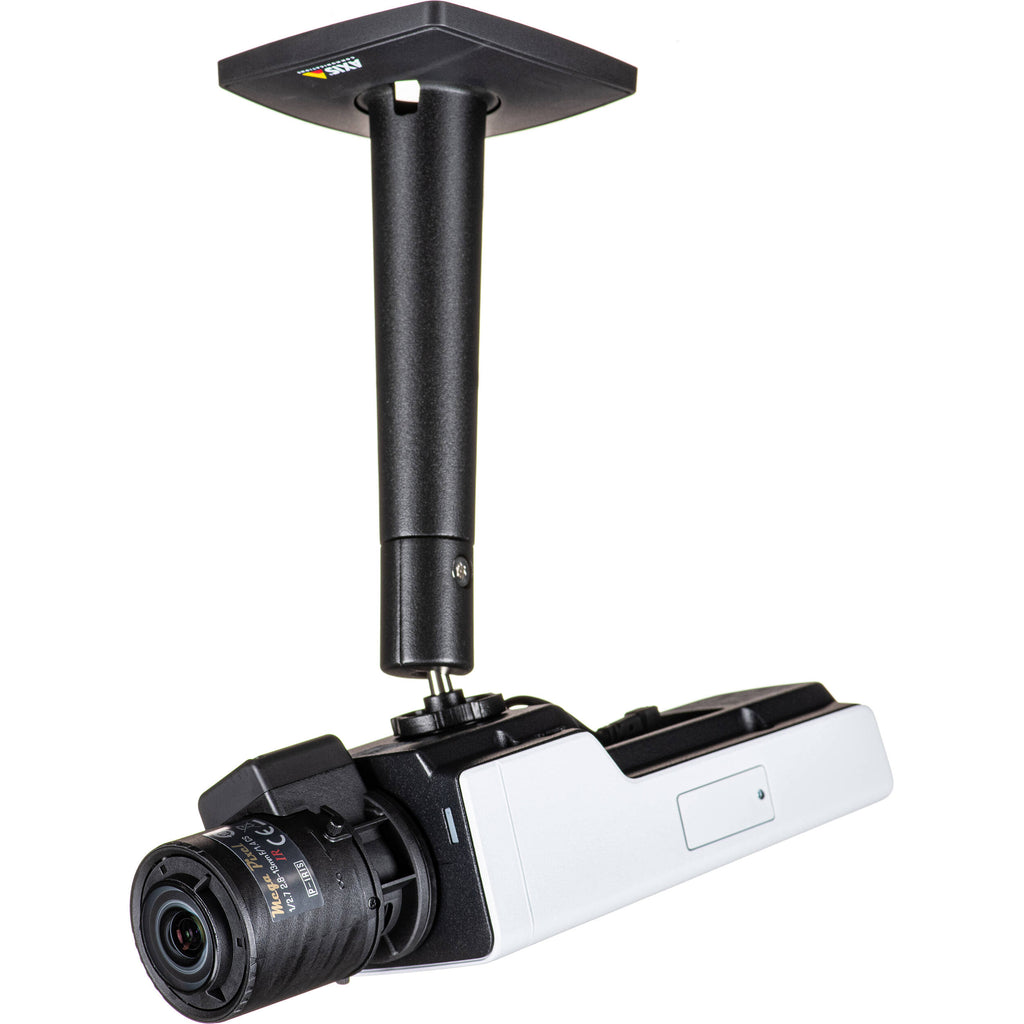

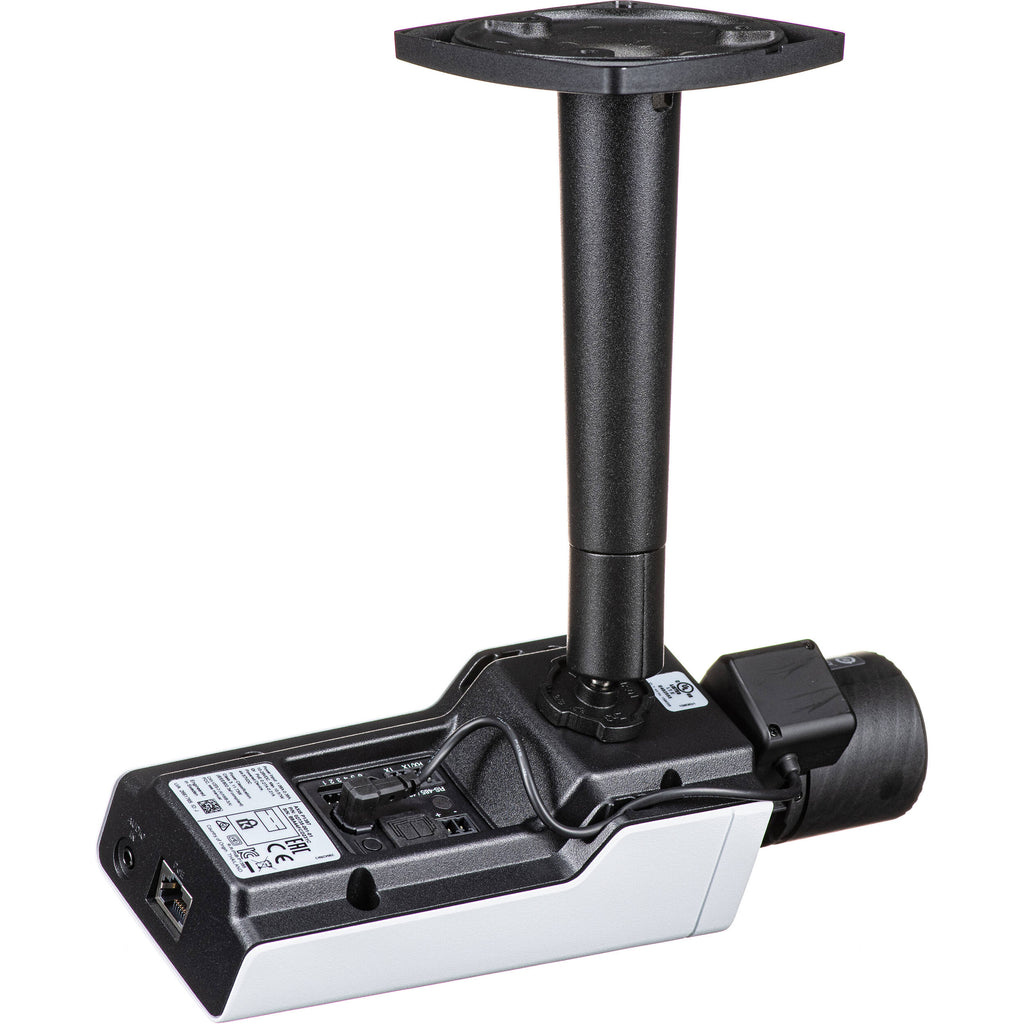

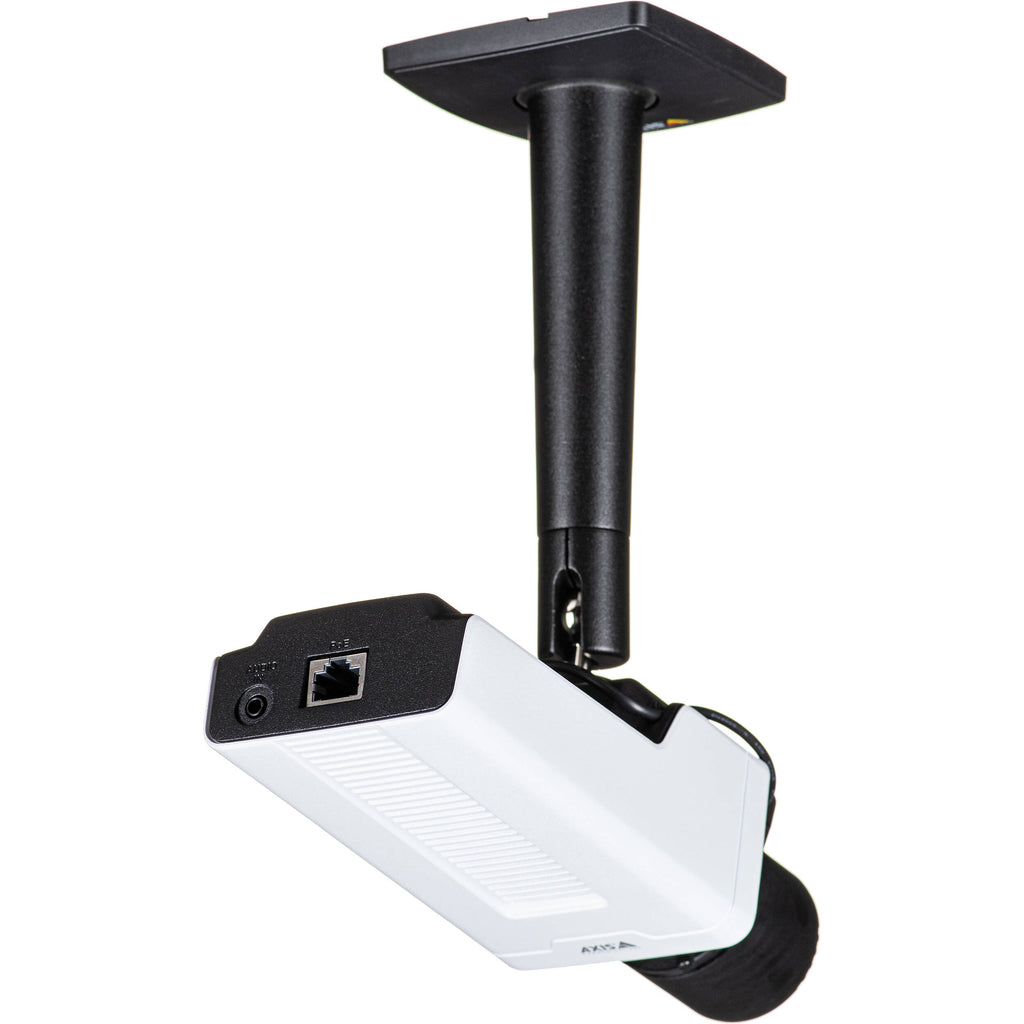

Axis Communications 02735-001 Overview
Securely monitor an indoor space with the P1387 5MP Network Box Camera from Axis Communications. This unit uses a 1/2.7" progressive scan RGB CMOS sensor to capture 2592 x 1458 resolution video at up to 60 fps. A CS mount that supports i-CS lenses allows you to choose from interchangeable lenses (available separately) to best suit your surveillance application. The included 2.8-13mm varifocal lens delivers a 112 to 24° horizontal angle of view. A built-in microphone and an audio input enables the camera to pick up audio. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot accepts microSD/SDHC/SDXC cards (available separately).
This box camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices.
CS mount enables you to choose from interchangeable lenses that best suit your surveillance needs
Supports i-CS lenses
IR-corrected 2.8-13mm lens included
i-CS connector is compatible with precise iris and DC auto iris
Axis T92G20 connector
Forensic WDR (120 dB) and Lightfinder 2.0 technology help the camera produce clear images in challenging and low-light conditions
Axis Zipstream technology lowers bandwidth and storage requirements
Automatically removable IR cut filter for day and night functionality
Digital PTZ with preset positions
Controllable frame rate and bandwidth (VBR/ABR/MBR H.264/H.265)
Video streaming indicator
Image settings include contrast, brightness, sharpness, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, 0, 90, 180, and 270° rotation including corridor format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask, target aperture, and scene profiles (forensic, vivid, traffic overview)
3D-DNR/2D-DNR
Electronic image stabilization
Two-way audio with speaker pairing (speaker available seperately)
Analytics include Axis Object Analytics, Axis Scene Metadata, Axis Live Privacy Shield, and Axis Video Motion Detection, with support for third-party applications
Compatible with AXIS Companion, AXIS Camera Station, and video management software from Axis' Application Development Partners
Built-in cybersecurity with Axis Edge Vault
PVC and BFR/CFR free
Items Included
- Axis Communications P1387 5MP Indoor Network Box Camera with 2.8-13mm Lens
- Terminal Block Connectors
- Owner Authentication Key
- Axis Communications T91B21 Camera Stand (Aluminum, Black)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications 02735-001 Specs
Key Specs
| Image Sensor |
1/2.7"-Type CMOS
|
| Focal Length |
2.8 to 13mm
|
| Field of View |
Horizontal: 112 to 24°
Vertical: 80 to 18° |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 Input
1x DC (10 to 28VDC) Input |
Imaging
| Lens Mount |
CS
|
| Number of Lenses |
1
|
| Image Sensor |
1/2.7"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8 to 13mm Lens:
Detect: 184.3 to 801.3' / 56.2 to 244.2 m Observe: 73.2 to 318' / 22.3 to 96.9 m Recognize: 36.9 to 160.3' / 11.2 to 48.9 m Identify: 18.4 to 80.1' / 5.6 to 24.4 m |
Exposure Control
| Shutter Speed |
1/66500 to 2 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.05 Lux (Color)
0.01 Lux (Black and White) |
Lens
| Focal Length |
2.8 to 13mm
|
| Optical Zoom Ratio |
4.6x
|
| Field of View |
Horizontal: 112 to 24°
Vertical: 80 to 18° |
| Maximum Aperture |
f/1.4
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2592 x 1458 up to 60.00 fps |
| Multi-View Streaming |
Yes, 20 Streams
|
Control
| Supported Control Protocols |
RS-422
RS-485 |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
|
| Supported Protocols |
ARP, Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Mono Input
|
| Other I/O |
1x RJ45
2x 9-Pin (RS-422, RS-485, Serial) 1x Block 6-Pin 1x Proprietary |
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, LPCM, Opus
|
| Built-In Microphone |
Yes
|
| Memory |
2048 MB RAM / 8192 MB Flash
|
| External Storage Options |
Cloud, NAS
|
System Integration
| Analytics |
Abandoned Object, Motion Detection, Object Counting, Object Detection, Object Removal, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Leveling Assistant, Remote Back Focus
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
2 / 2
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45 Input
1x DC (10 to 28VDC) Input |
| Power Consumption |
PoE: 11.73 W
10 to 28 VDC 10.57 W |
Environmental
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
|
General
| Material of Construction |
Aluminum
|
| Certifications |
UL, cUL, UKCA, CE, KC, EAC, VCCI, RCM, EN, FCC, CAN/CSA, IEC/EN/UL, ETSI, RoHS, EU, REACH
|
| Supported Languages |
Czech
Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Dimensions (W x H x D) |
3.1 x 2.5 x 8.9" / 80 x 63.5 x 225 mm
|
| Weight |
1.1 lb / 480 g (Body Only)
|
Packaging Info
| Package Weight |
2.32 lb
|
| Box Dimensions (LxWxH) |
10.5 x 8.8 x 4"
|
