Axis Communications P1245 Mk II Overview
Designed for covert surveillance in tight indoor spaces like ATMs and ticketing machines, the P1245 Mk II 1080p Network Modular Camera from Axis Communications features a main unit and a thumb-sized sensor unit connected with a detachable cable. The cable enables flexible installation at distances up to 49' away between the main unit and the sensor unit. This device uses a 1/2.9" progressive scan RGB CMOS sensor to capture 1080p30 resolution video. The unit's 2.8mm fixed lens delivers a 111° horizontal angle of view.
Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An onboard slot supports microSD/SDHC/SDXC cards (available separately). Compliance with ONVIF profiles G, M, S, and T enables interoperability with a wide range of surveillance devices.
Suitable for tight indoor installations and can be recessed mounted for covert deployment
0.66' minimum focus distance
Axis Zipstream technology in H.265/H.264 keeps file sizes manageable
>55 dB S/N ratio
Wide dynamic range (forensic capture)
Image settings include saturation, contrast, brightness, sharpness, white balance, exposure mode, compression, 0, 90, 180, and 270° rotation, including corridor format, mirroring, dynamic text and image overlay, and polygon privacy mask
Analytics include Axis Object Analytics, scene metadata, Axis Video Motion Detection, and Axis Live Privacy Shield, along with support for third-party applications
Two-way audio via portcast technology (required device available separately)
PVC free
Items Included
- 10 x Axis Communications P1245 Mk II 1080p Indoor Network Modular Camera

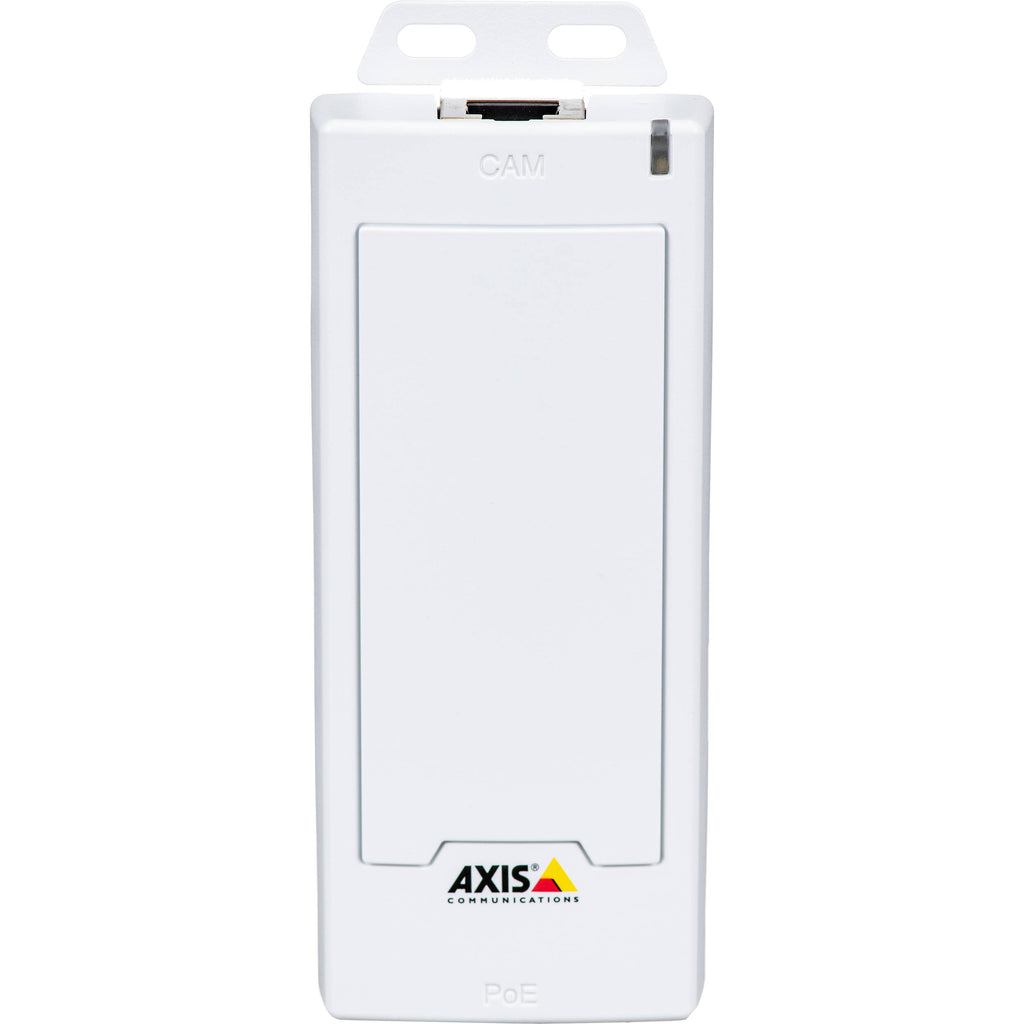

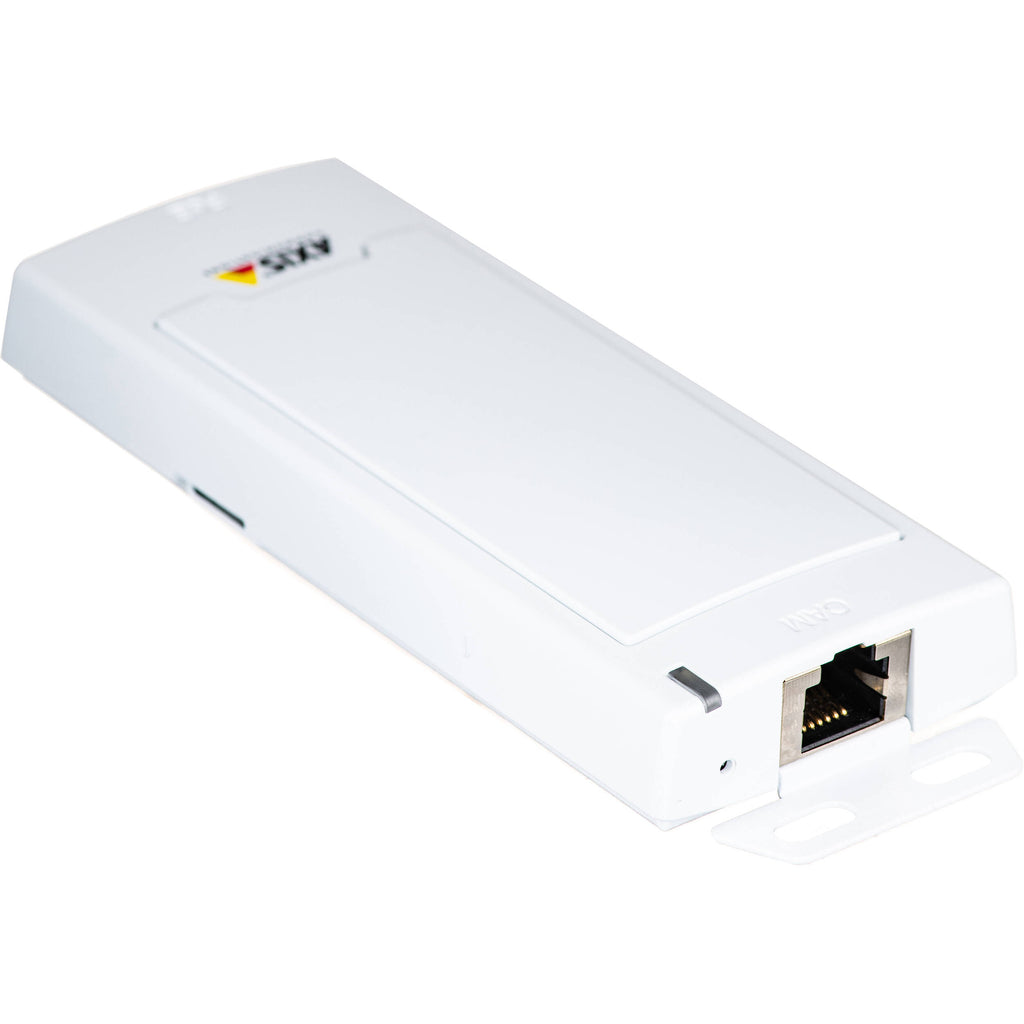

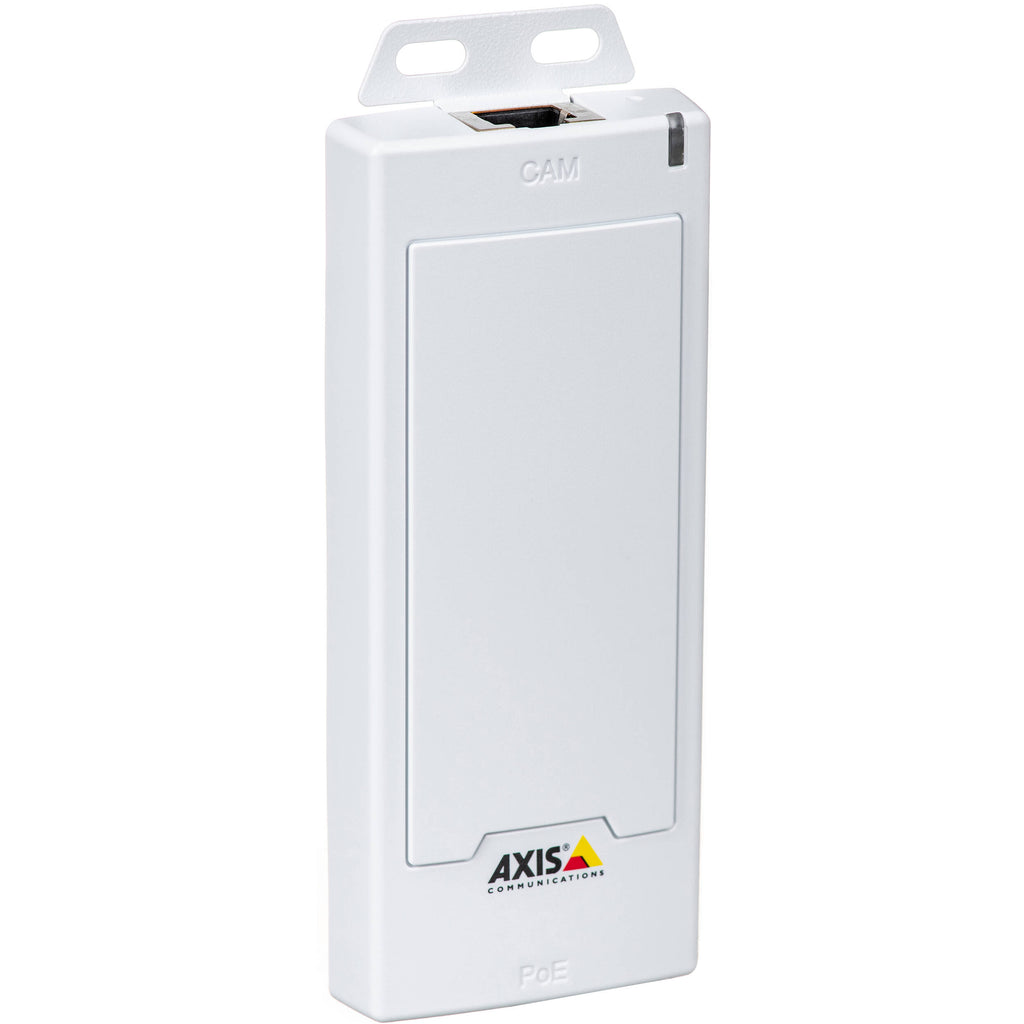

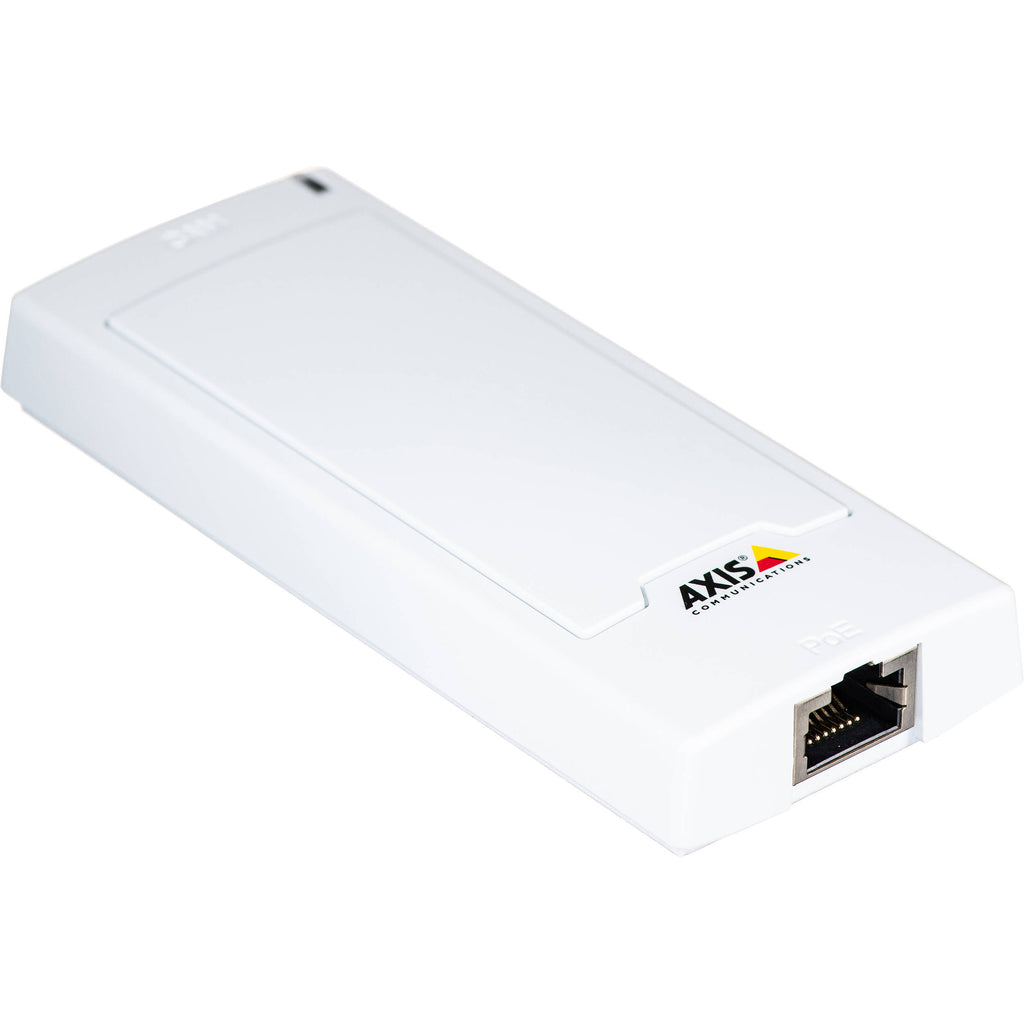

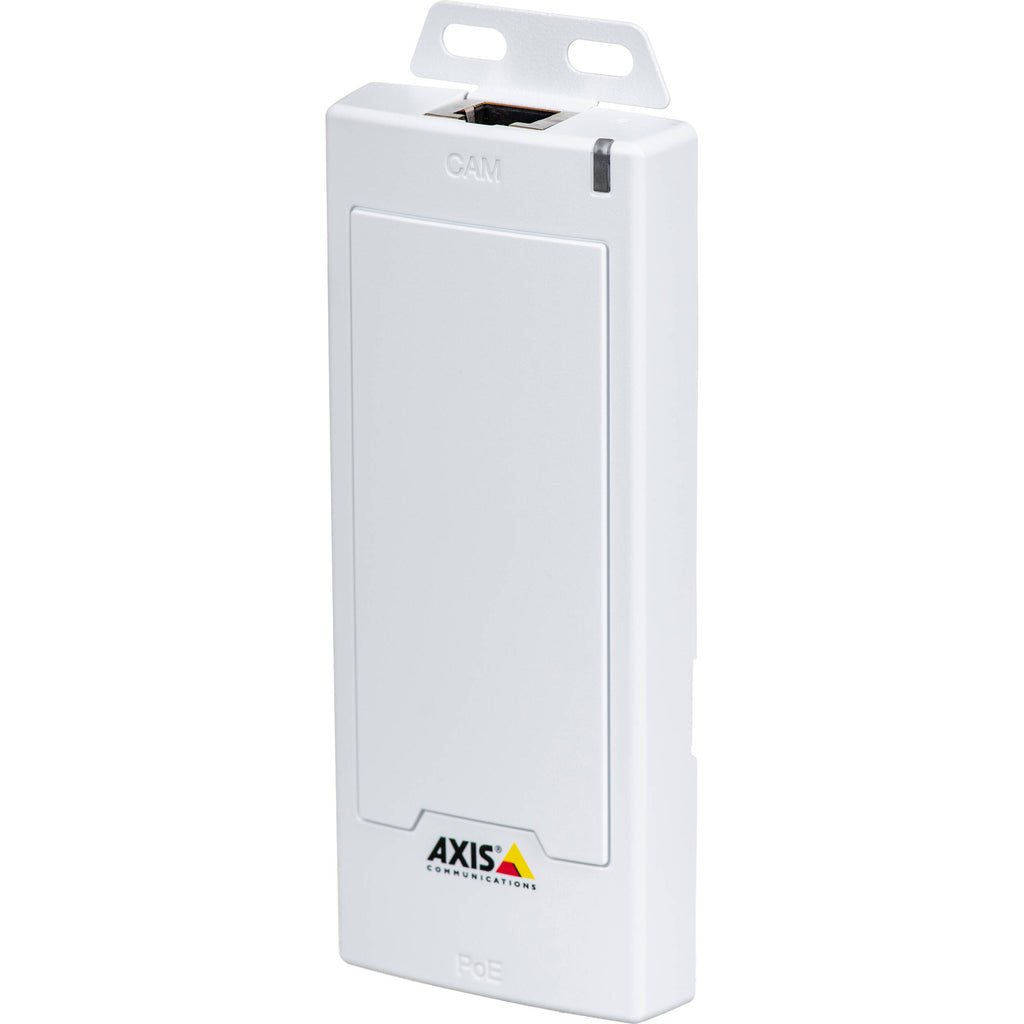

- Main Unit

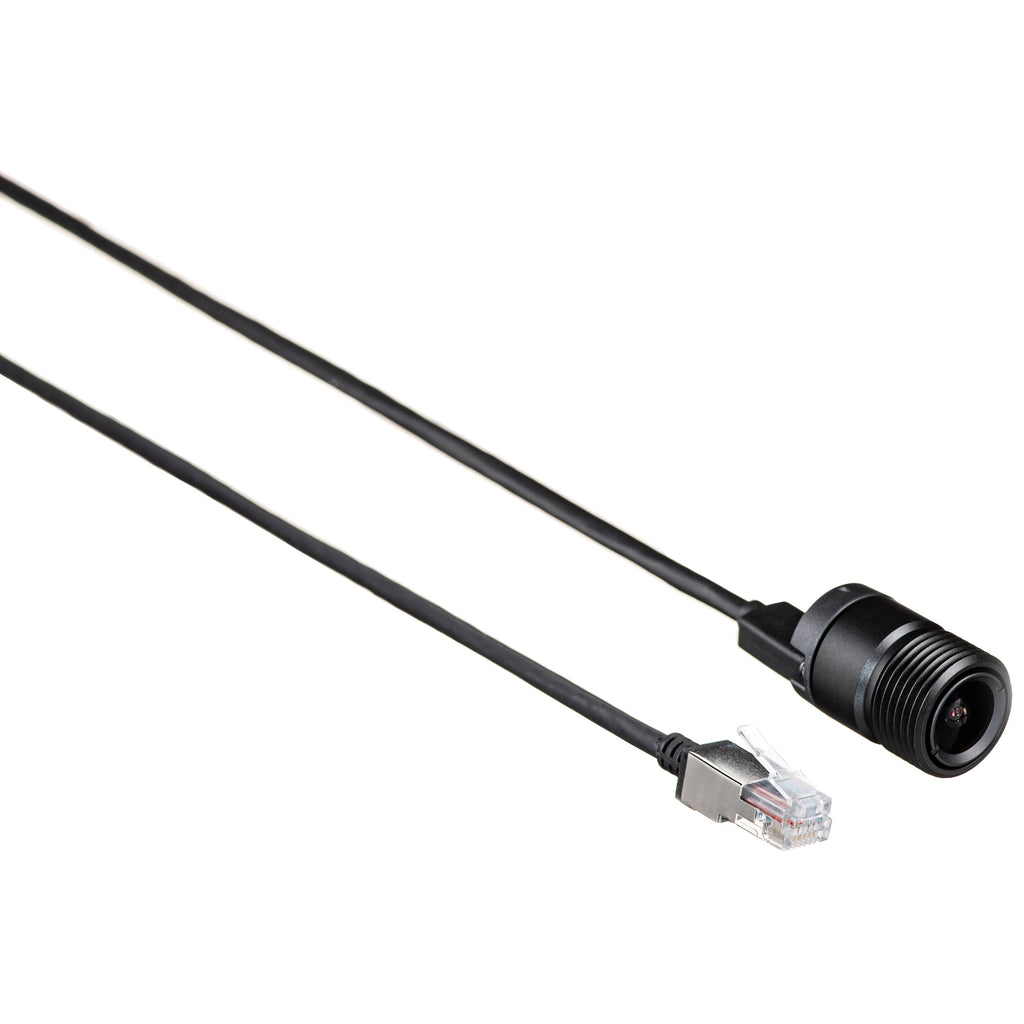

- Sensor Unit
- Cable (26')
- Owner Authentication Key

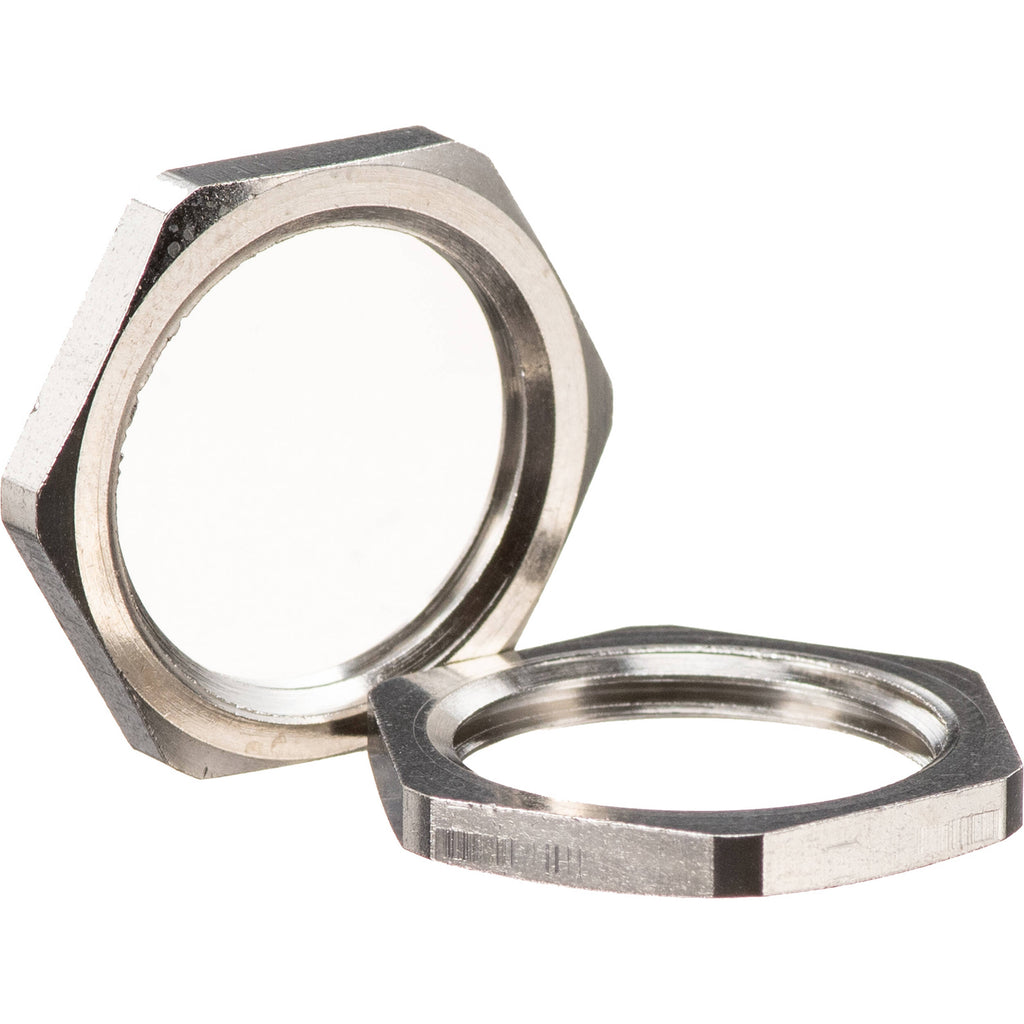

- 2 x Locking Nut
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications P1245 Mk II Specs
Key Specs
| Image Sensor |
1/2.9"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 111°
Vertical: 61° |
| Power I/O |
1x RJ45 Input
|
Imaging
| Lens Mount |
M12
|
| Number of Lenses |
1
|
| Image Sensor |
1/2.9"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| DORI Coverage |
With 2.8mm Lens:
Detect: At 133.2' / 40.6 m Observe: At 52.8' / 16.1 m Recognize: At 26.6' / 8.1 m Identify: At 13.5' / 4.1 m |
Exposure Control
| Shutter Speed |
1/16500 to 1/5 Second
|
| Minimum Illumination |
0.2 Lux (Color)
|
Lens
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 111°
Vertical: 61° |
| Maximum Aperture |
f/2.5
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 30.00 fps |
| Multi-View Streaming |
Yes, 2 Streams
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
|
| Supported Protocols |
ARP, Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Other I/O |
1x RJ45
1x RJ12 |
| Built-In Speaker |
No
|
| Memory |
1024 MB RAM / 512 MB Flash
|
| External Storage Options |
Cloud, NAS
|
System Integration
| Analytics |
Abandoned Object, Motion Detection, Object Counting, Object Detection, Object Removal, Privacy Guard, Scene Change Detection
|
| Built-In Installation Aids |
Level Grid, Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45 Input
|
| Power Consumption |
PoE: 3.4 to 4.1 W
|
Environmental
| Operating Conditions |
-4 to 113°F / -20 to 45°C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C
|
| Environmental Resistance |
Dust-Resistant (IP3X)
|
General
| Material of Construction |
Aluminum, Plastic, Steel
|
| Certifications |
RoHS, REACH, EU, IEC/EN, CSA, UL, cUL, CE, KC, VCCI, RCM, TAA, EN, ICES, FCC, CAN/CSA, IEC/EN/UL
|
| Supported Languages |
Czech
Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Dimensions (W x H x D) |
1.8 x 0.6 x 4.6" / 46 x 16 x 118 mm
|
| Weight |
0.2 lb / 75 g (Body Only)
|
Packaging Info
| Package Weight |
0.805 lb
|
| Box Dimensions (LxWxH) |
7.5 x 6.5 x 2.6"
|
