Description
Axis Communications S2216 Mk II Overview
Record from and manage up to 16 cameras and 32 doors with the Camera Station S2216 Mk II Rack Appliance All-in-One Recorder with 8TB HDD. Preloaded with video management software and tools to update and maintain your system, the S2216 is designed for use with Axis network cameras for a surveillance solution. It features 16 PoE ports via an integrated PoE switch, a 8TB preinstalled HDD, and silent operation.
Preloaded with 16 Axis Camera Station Pro Core licenses (additional licenses available separately)
Compatible with Axis network cameras, Axis S30 Recorder Series, and Axis Recorder Toolbox
Supports Smart Search 2 AI application
Qualified for up to 1000 doors (access control only)
Cybersecurity features include FIPS 140-2 Level 2 certified TPM, secure boot, and signed switch firmware
Compatible with Microsoft Windows 11 IoT Enterprise LTSC 2024 (256GB SSD)
Supports RAID 0, 1, 5, and 10
4K resolution at 30 fps for single live view with Windows client (8K with web client)
Integrated PoE switch with 16 PoE ports
TAA compliant
Items Included
- Axis Communications Camera Station S2216 Mk II Rack Appliance All-in-One Recorder with 8TB HDD

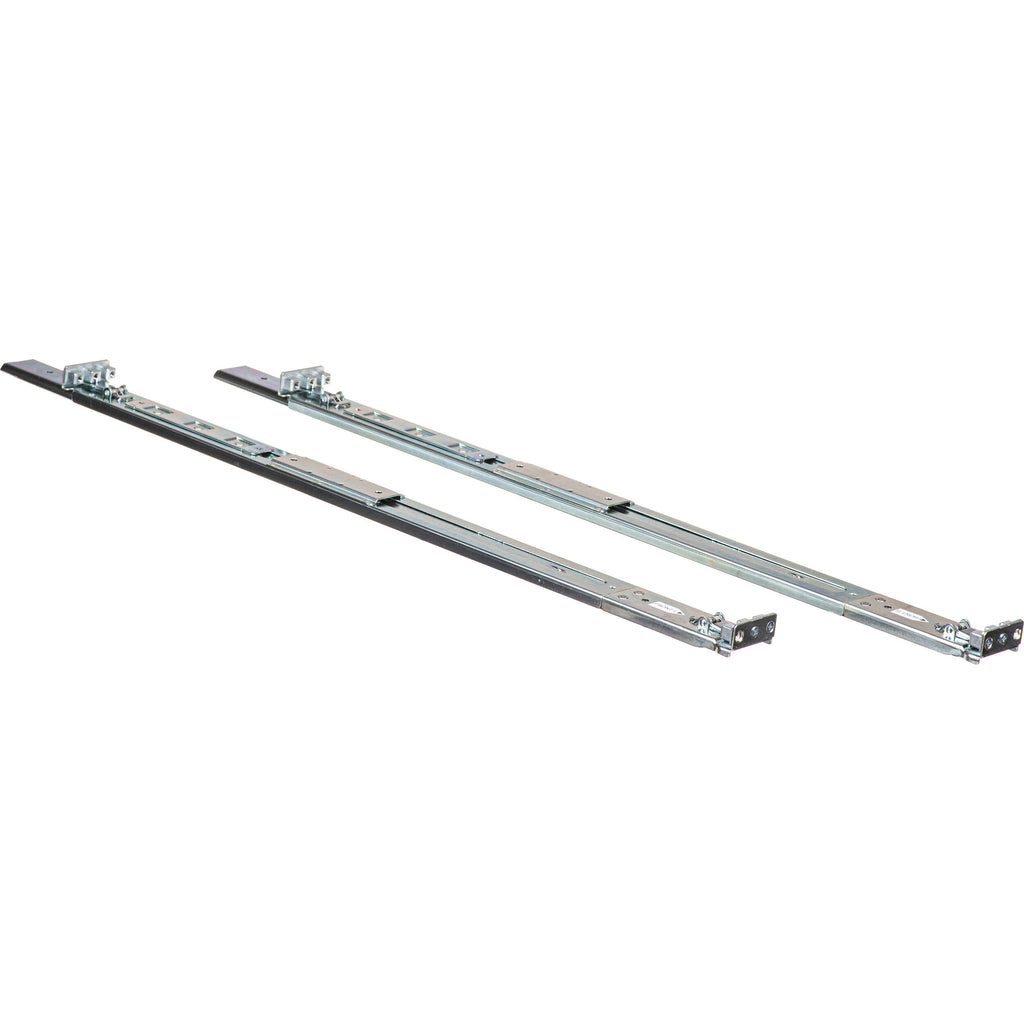

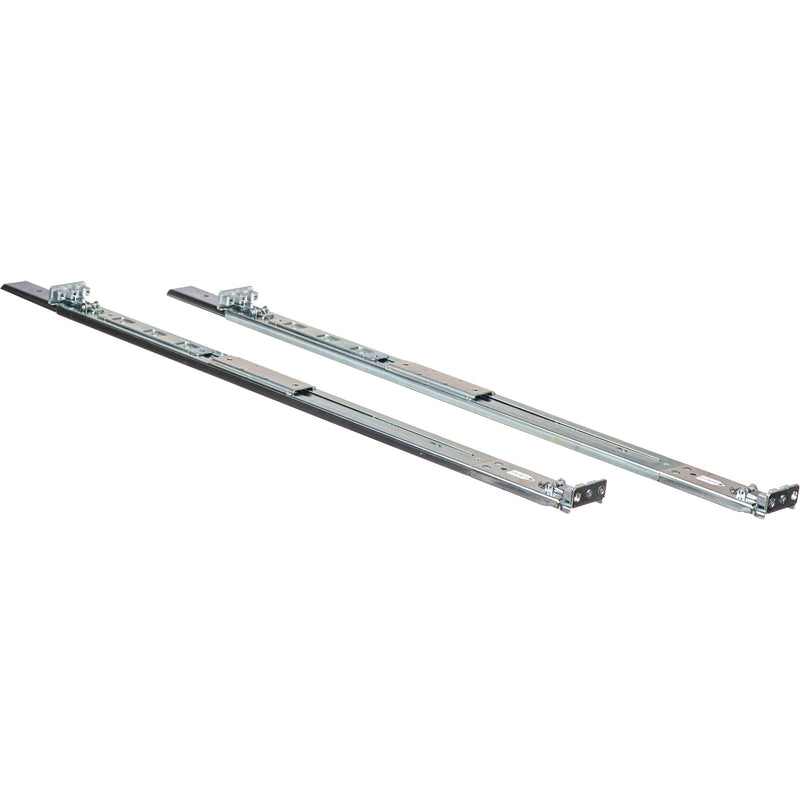

- Rack Rails
- Power Cord
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications S2216 Mk II Specs
Key Specs
| Number of Channels |
16
|
| Playback Resolution |
1080p, 720p, 8K, 4K at 30 fps
640 x 360 at 15 fps |
| Recording Resolution |
4K
|
| PTZ Support |
Yes
|
| Throughput |
256 Mb/s (Recording)
|
| A/V I/O |
2x HDMI 2.1
1x 1/8" (3.5 mm) Audio |
| Communication I/O |
16x RJ45 Gigabit Ethernet PoE
2x RJ45 Gigabit Ethernet 1x SFP Gigabit Ethernet 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2x USB-A 2.0 (Rear) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
8 TB
|
| PoE Power Budget |
260 W
|
General
| Number of Channels |
16
|
| Playback Resolution |
1080p, 720p, 8K, 4K at 30 fps
640 x 360 at 15 fps |
| Recording Resolution |
4K
|
| PTZ Support |
Yes
|
| Throughput |
256 Mb/s (Recording)
|
| IP Camera Support |
16
|
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
2x HDMI 2.1
1x 1/8" (3.5 mm) Audio |
| Communication I/O |
16x RJ45 Gigabit Ethernet PoE
2x RJ45 Gigabit Ethernet 1x SFP Gigabit Ethernet 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2x USB-A 2.0 (Rear) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
Compatibility
| Supported IEEE Standards |
802.3at (PoE+ 30 W)
|
Computing
| Installed Operating System |
Windows 11 IoT Enterprise
|
| Processor |
Intel Core i3
|
| Memory |
2x 8 GB
|
| GPU |
Intel UHD Graphics
|
System
| Installed Drive |
8 TB
|
| Number of Bays |
4
|
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
110 W (Typical)
130 W (Maximum) |
| Power Supply Type |
External
|
| PoE Power Budget |
260 W
|
| Input Power |
120 to 240 VAC, 50 / 60 Hz at 2.5 to 6.5 A
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 10 to 90% Humidity
|
| Certifications |
BIS, CAN/CSA, CE, FCC, ICES, IEC/EN/UL, KC, NOM, RCM, TAA, UL, VCCI, cUL
|
| LED Indicators |
Yes
|
| Rack Form Factor |
1 U
|
| Dimensions (W x D x H) |
17.3 x 18.7 x 1.8" / 440.0 x 476.0 x 45.0 mm
|
| Weight |
24.3 lb / 11 kg
|
Packaging Info
| Package Weight |
31.17 lb
|
| Box Dimensions (LxWxH) |
30.2 x 22.9 x 8.1"
|
