Description
Axis Communications A1214 Overview

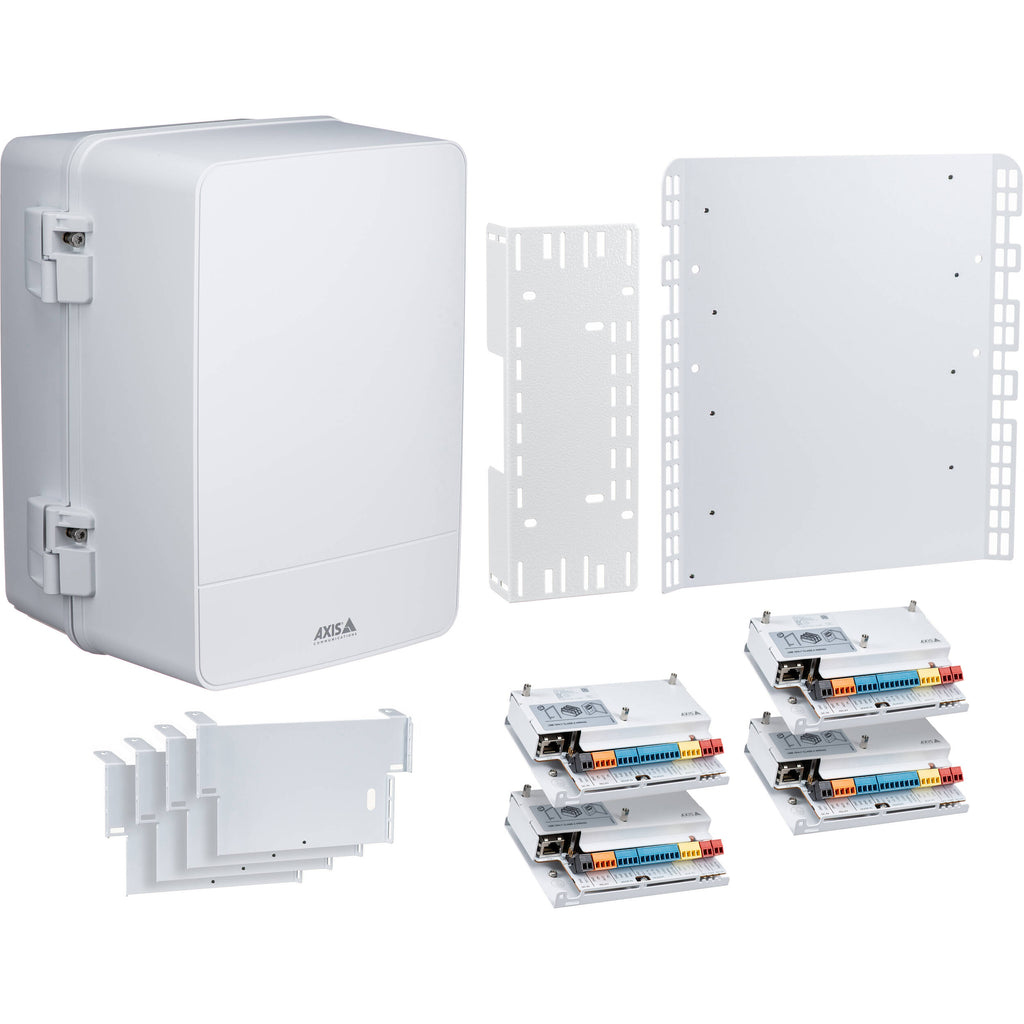

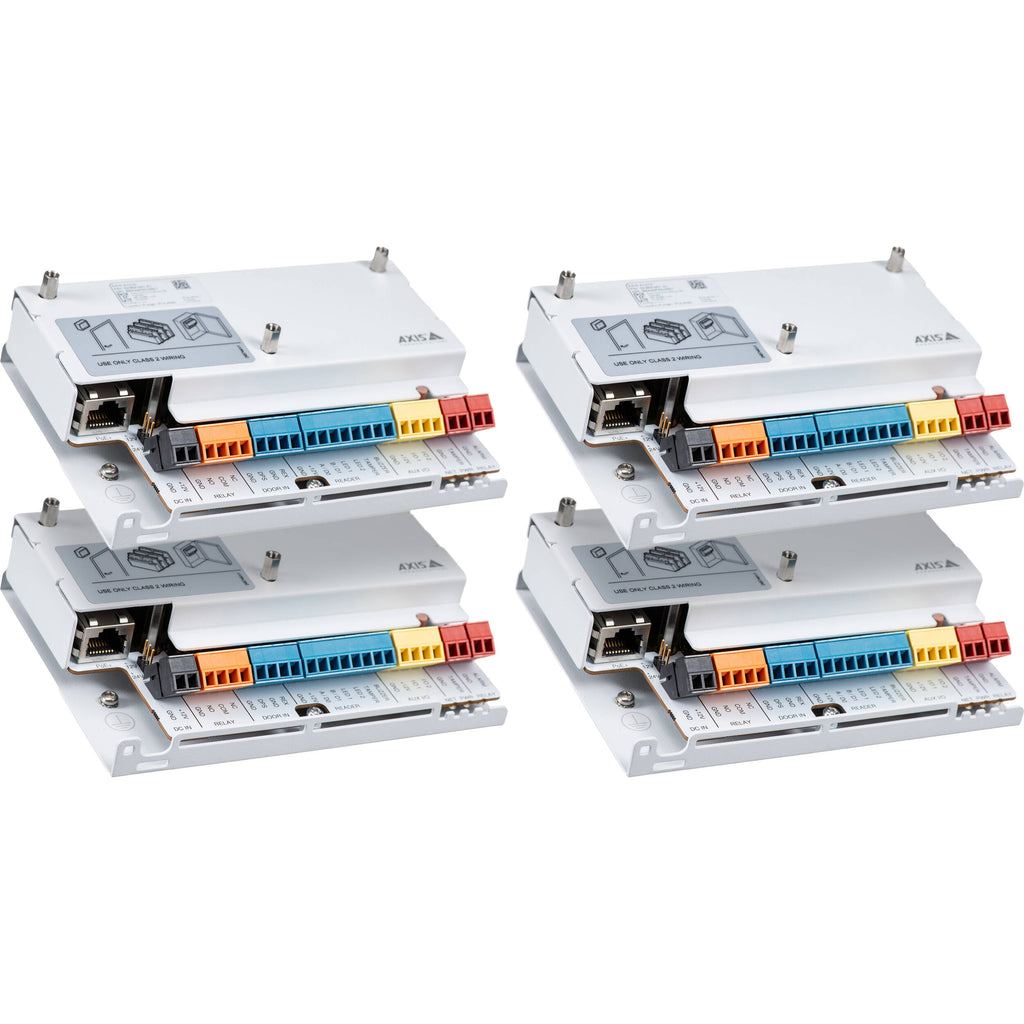

Implement edge-based control on up to four doors with the A1214 Door Controller Kit from Axis Communications. This kit includes four A1210-B controller units enclosed in a TQ1808-VE surveillance cabinet. The kit is designed to control and grant access to doors via up to two OSDP (multi-drop) or a single Wiegand reader. Up to 250,000 credentials and 250,000 event logs can be stored locally on the A1210-B controller units. Thanks to PoE compatibility, only a single cable is required for installation and operation.

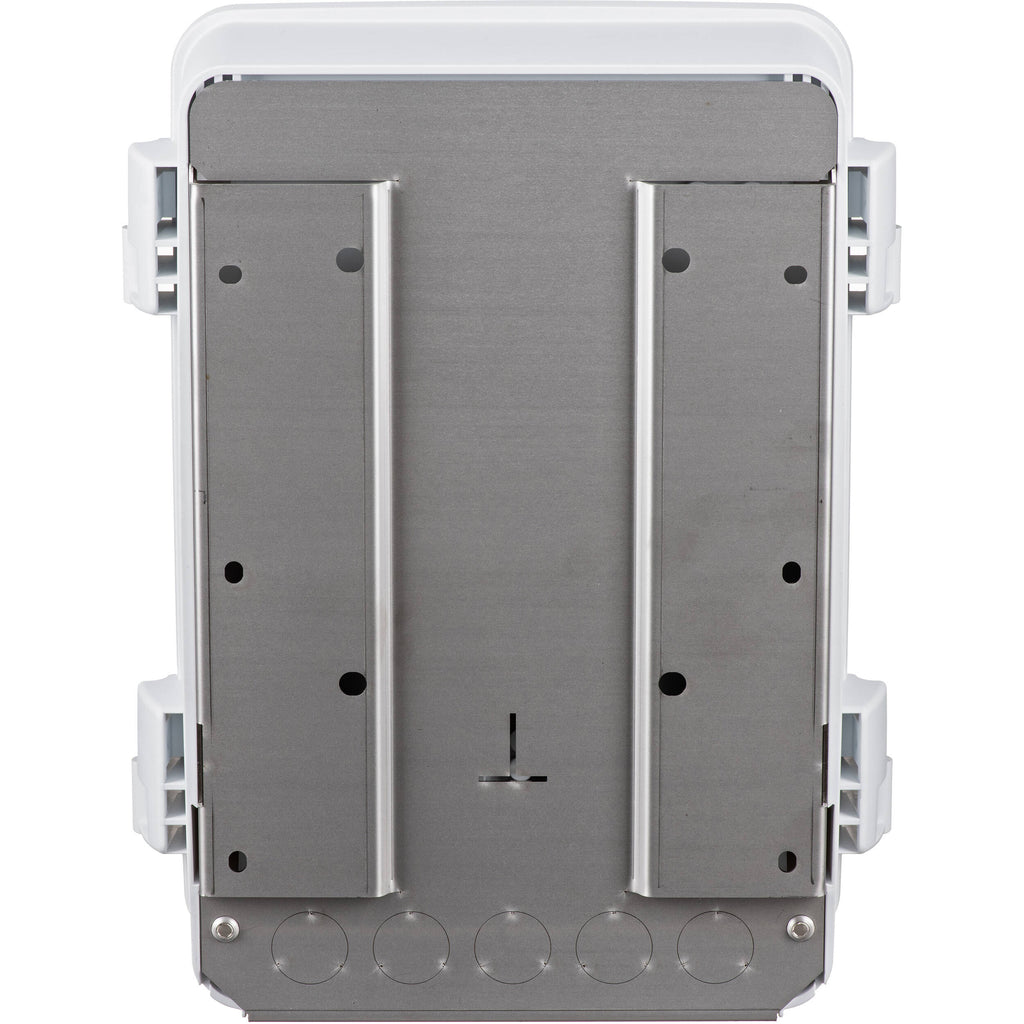

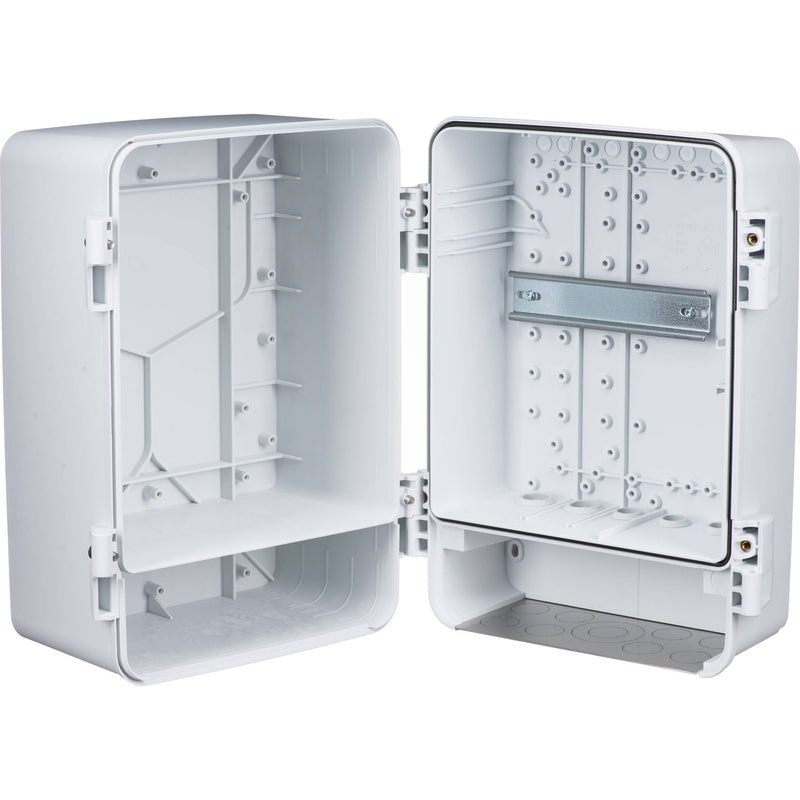

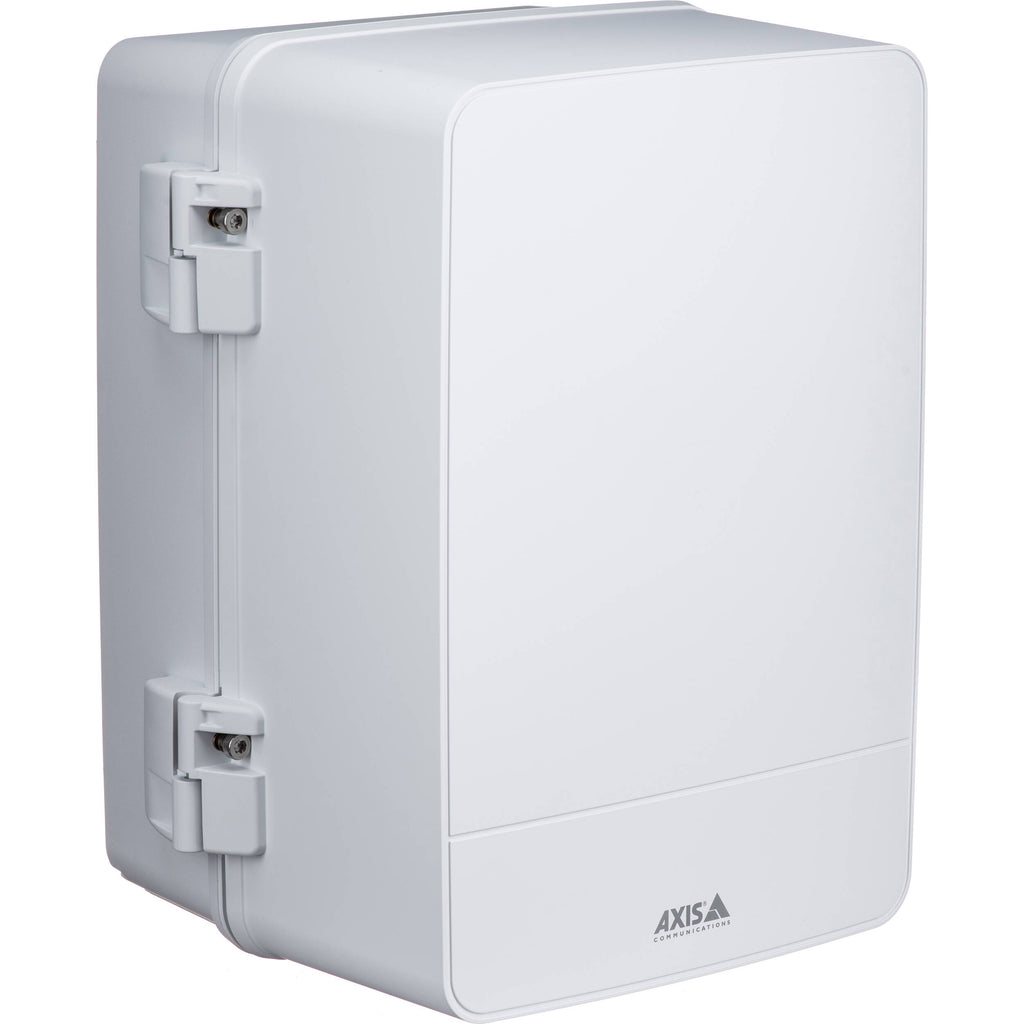

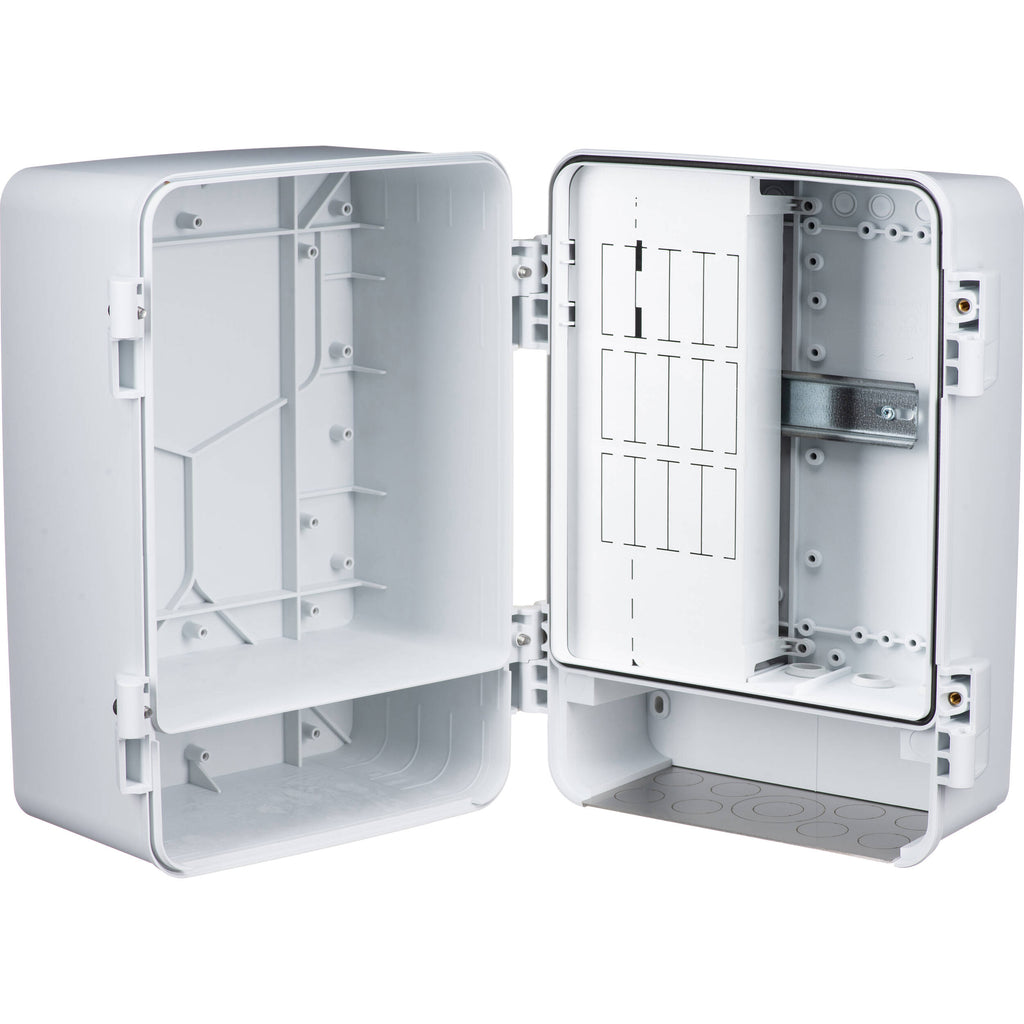

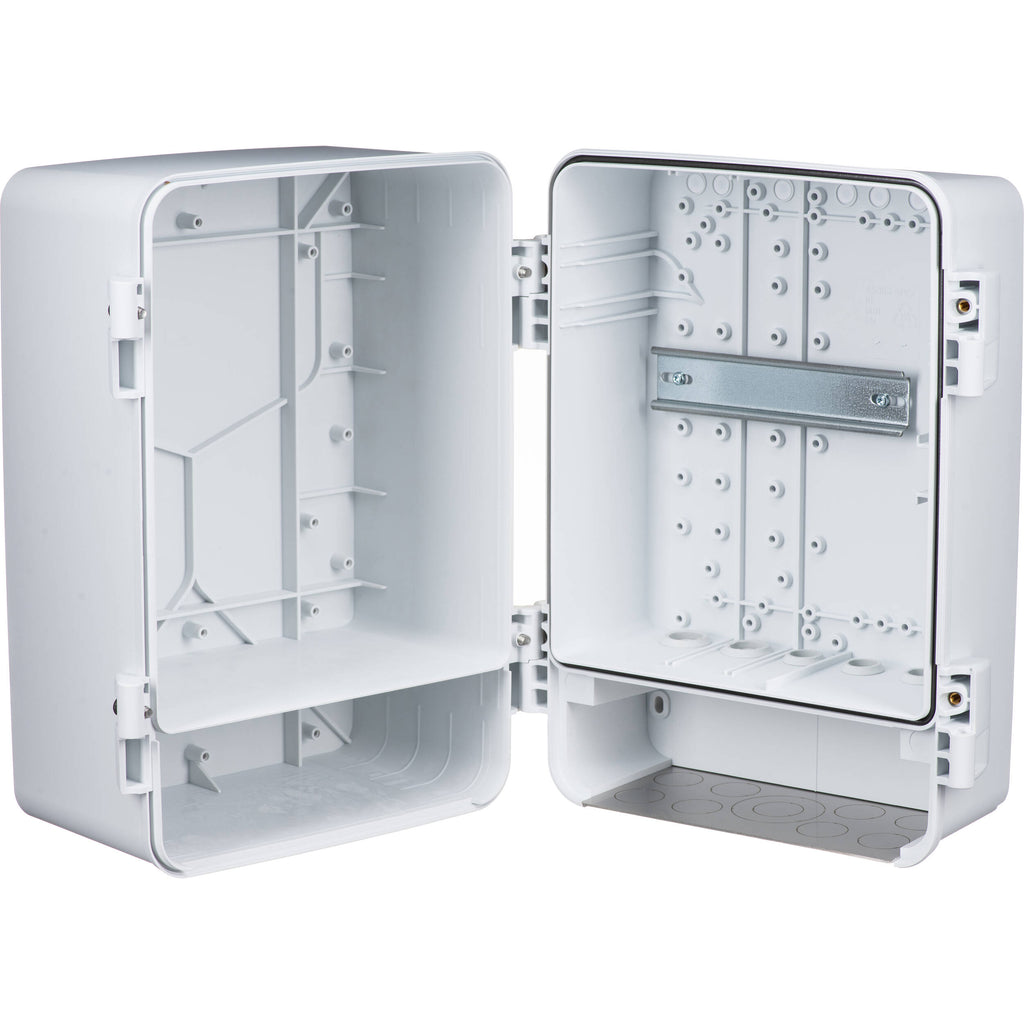

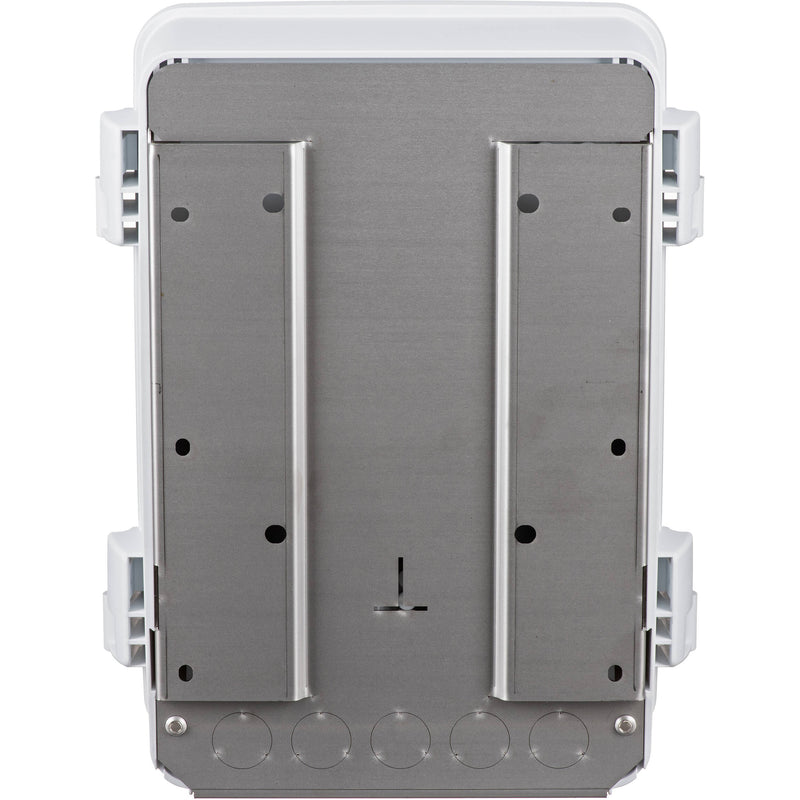

The TQ1808-VE surveillance cabinet is IP66, NEMA 4X, and IK10 rated for safe outdoor use in areas at risk of vandalism. Tamper detection provides an additional layer of security.
Items Included
- Axis Communications A1214 Door Controller Kit
- Connector Kit (Mounted)
- Grounding Kit
- Cable Ties
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications A1214 Specs
| Compatibility |
Various Credentials
|
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
|
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
|
| Memory |
512 MB RAM, 2 GB Flash
|

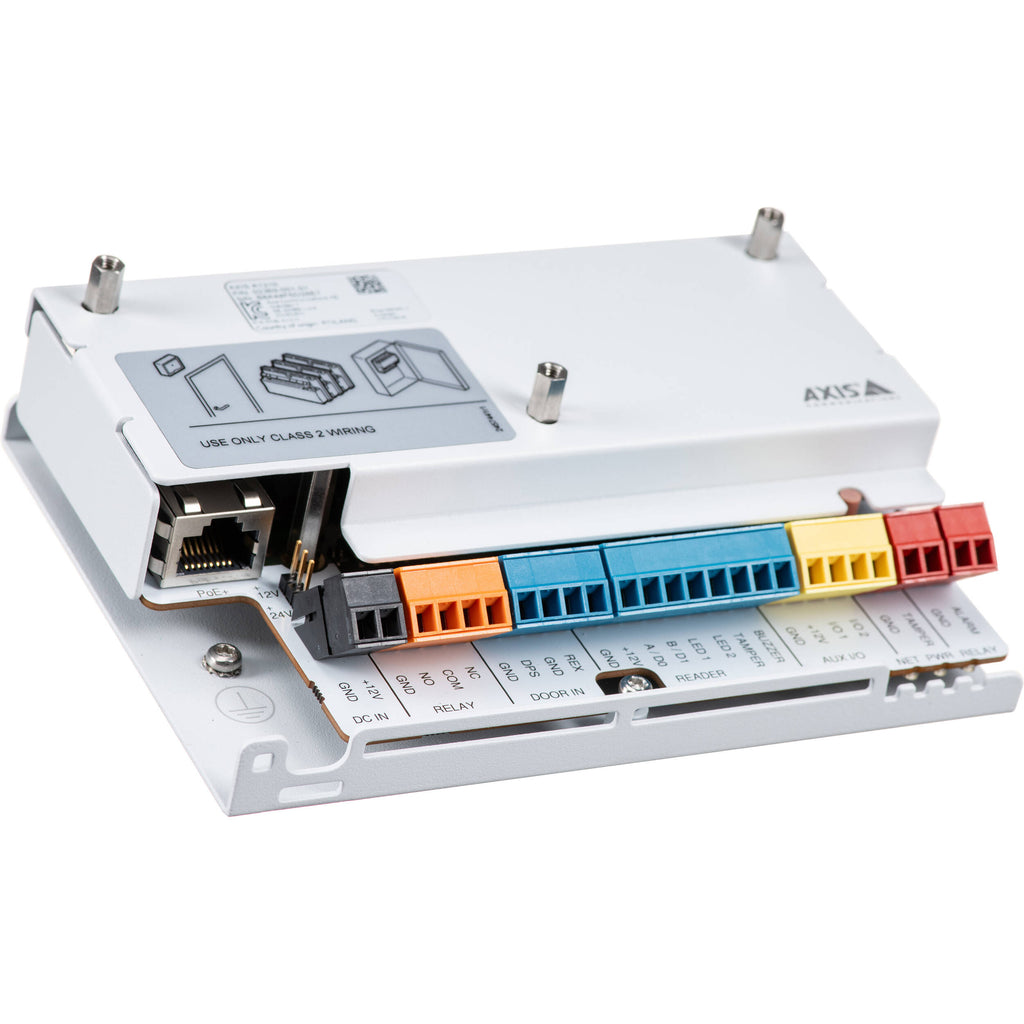

| Connectors |
Shielded 1000M RJ45 PoE
Terminal Blocks: DC Power, Inputs/Outputs, RS-485/Wiegand, Relay |
| Power Source |
PoE
|
| DC Input Power |
12 VDC
|
| Mounting |
Multiple Wall, DIN Rail, Cabinet, Stack
|
| Color |
White
|
| Material of Construction |
Polycarbonate, Stainless Steel
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
NEMA, CSA, RoHS, EU, EN, REACH, UL, cUL, KC, VCCI, TAA, IEC/EN/UL, IEC/EN
|
| Operating Conditions |
32 to 158°F / 0 to 70°C at 20 to 85% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C
|
| Dimensions |
14.2 x 11.1 x 9" / 361 x 282 x 229 mm
|
| Weight |
0.9 lb / 425 g
|
| Package Weight |
19.8 lb
|
| Box Dimensions (LxWxH) |
19.78 x 15.5 x 11.25"
|
